AAP B-TRUST24 in New Zealand
AAP B-TRUST24 is available through ACP Online NZ within our Automation & Control;Gate Automation;Gate Controllers;Gate Motors collection. Review the information below to confirm that it suits your equipment, application and compatibility requirements.
Product information

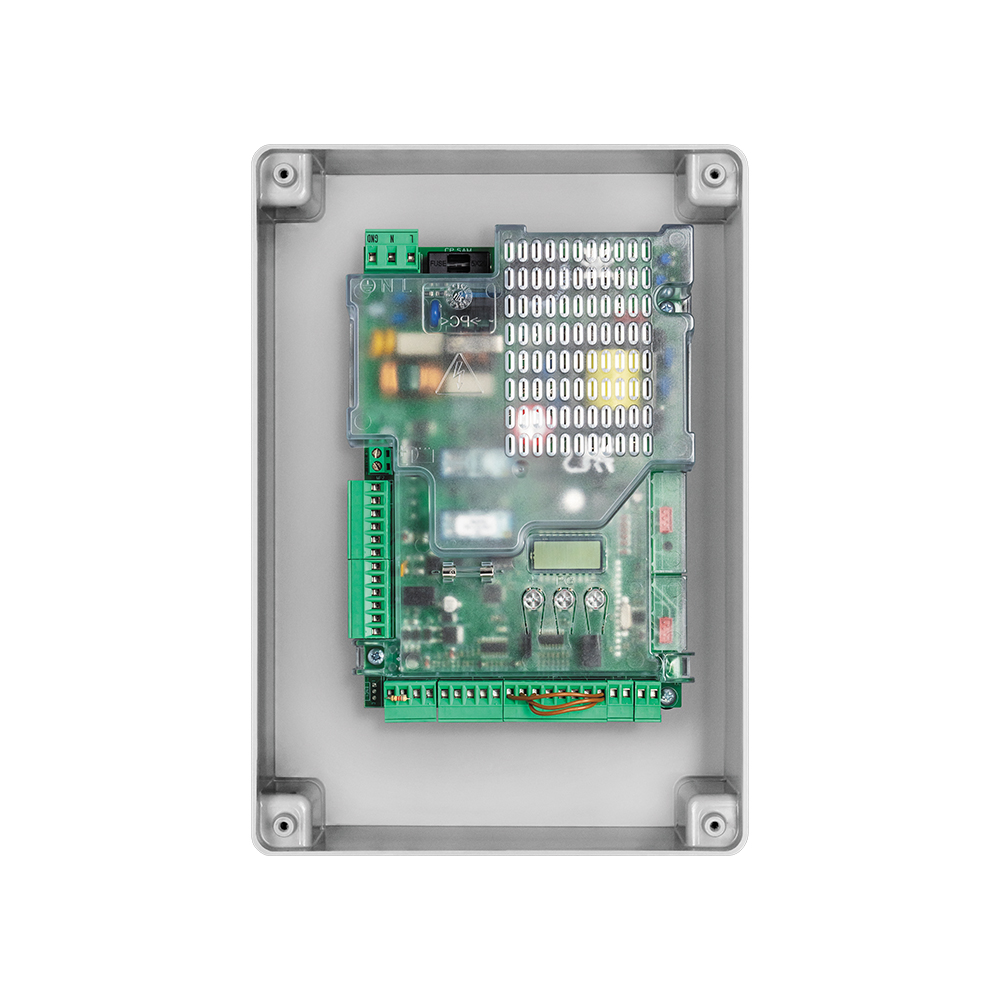

AAP B-TRUST24 24VDC Controller with integrated receiver and battery charger (64 Remote Slots) – Used For Swing Gate Automation Key Features :- Integrated LCD display Integrated radio receiver 433.92 MHz 512 codes with ARC coding Removable terminal boards Separate limit switch inputs for each motor Automatic, semiautomatic and Deadman logic Separate encoder inputs for each motor Open, close, step-by-step and pedestrian inputs Input for programmable photocell active in opening-closing and photocell active only in closing Input for N.C. or 8k2 sensitive edge Output for electric lock 12/24 Vdc Two outputs configurable as open gate signal light, courtesy light, zone light, second radio channel, photocell testing, flashing light, alarm contact Autoset operating parameters Separate electronic torque adjustment for each motor Anti-crushing safety through amperometry detection and encoder management Electronic torque adjustment with automatic calculation for each point of the stroke (STC SYSTEM) Separate adjustable slowdowns for each motor Possibility of encoder- or time-based operation (managed through virtual encoder) even independently between the two motors Built-in energy saving system ESA+ Set up for connection to KNX systems via X.BE card (optional) Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory Advantouch system to configure parameters and manage radio transmitters Number of maneuvers Programming access password Maintenance warning Built-in battery charger
Product details
- Brand: AAP
- SKU / model reference: B-TRUST24
- Product category: Automation & Control;Gate Automation;Gate Controllers;Gate Motors
- Catalogue status: Send enquiry to confirm stock and current pricing.
Before ordering
Please confirm model, connection, sizing, consumable or device compatibility where applicable. Product images and references should be checked against your existing equipment before purchase.
