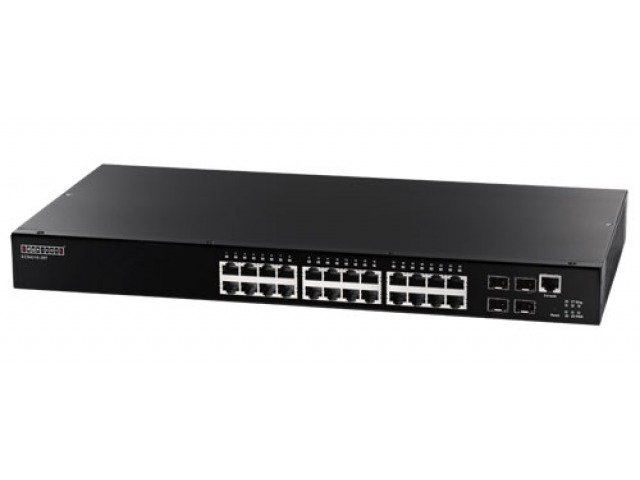

Layer 2 Managed Ethernet Switch with 28 ports; 24 10/100/1000Base-TX ports and 4 Gigabit Ethernet SFP ports.
Key Features
- Auto MDI/MDIX
- Auto negotiation
- IGMP Snooping : v1 | v2 | v3
- Immediate Leave
- Jumbo Frame
- Link Aggregation : IEEE 802.3ad with LACP (Dynamic) | Static Trunk
- Multicast (IGMP) Snooping : Querier Support | Immediate Leave | IGMP Filtering | IGMP Throttling
- MVR
- Q in Q
- Spanning Tree : IEEE 802.1D (STP) | IEEE 802.1w (RSTP) | IEEE 802.1s (MSTP) | BPDU Filter | Root Guard | BPDU Guard | Loopback Detection
- Storm Control : Broadcast | Multicast | Un-known Unicast
- VLAN : IEEE 802.1v | MAC Based | Port Based | VLAN Trunking
- VLAN Group : 4K
- QoS Features
- CoS : IEEE 802.1p | IP Precedence
- DiffServ (RFC2474)
- H/W Queues : 8
- Rate Limiting : Ingress | Egress
- Security Features
- DHCP Snooping
- HTTP and SSL ( Secured Web)
- IEEE 802.1x : Port-based | MAC-based
- MAC Based Authentication
- MAC Filter
- RADIUS (RFC2138) : Authentication
- TACACS+ : Authentication | Accounting | Authorization
- Username/Password Authentication : Local | Remote
- Management Features
- Firmware Download : TFTP (RFC783)
- Firmware Upgrade : TFTP (RFC783)
- HTTP
- IP Clustering
- LLDP
- LLDP MED
- Port Mirroring
- SNTP
- Web Based Management
- IPv6 Features
- IPv4/IPv6 Dual Protocol Stack
- IPv6 Address Type : Unicast
- IPv6 Management : SNMP over IPv6 | IPv6 Telnet Support | Remote IPv6 Ping | IPv6 Syslog Support | IPv6 DNS Resolver | IPv6 TFTP support | HTTP over IPv6 | SSH over IPv6
- IPv6 Neighbour Discovery
Dimension (HxWxD) cm 44 x 22 x 4.4
