Russound HDMI Cable PRS3 Passive series, 4K UHD 18Gbps – Kordz

HDMI Cable PRS3 Passive series, 4K UHD 18Gbps – Kordz is available through ACP Online NZ within our Brands;HDMI;HDMI Cables;Kordz collection. Review the information below to confirm that it suits your equipment, application and compatibility requirements.

Product information

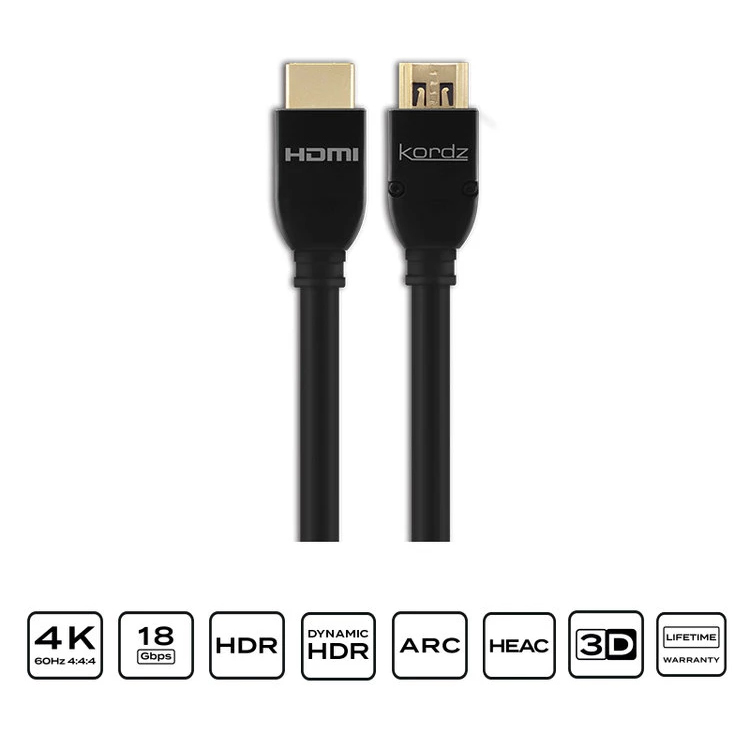

HDMI Cable PRS3 Passive series, 4K UHD 18Gbps – Kordz Kordz Passive PRS3 Series features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity. PRS3 HDMI Cable 4K UHD Engineered to mitigate connector dropout potential – not suitable for repeated plug/unplug events. Features DPL Certified 4K 18G-DC High Speed with Ethernet on all lengths Passive in lengths 0.5m – 5m / 1.64’ – 16.4’ 18mm wide connector engineered to fit through 1”/25mm conduit Induction soldered pin transitions for benchmark inter-terminal uniformity Unique grip tab connectors with 3kg retention for permanent installations 100% of units tested on the production line for electrical continuity on all pins, with a full Bit Error Rate (BER) application test UL CMG fire rated in all lengths Lifetime warranty Technical Specifications HDMI Certification ≤ 5.0m PASSIVE HDMI CTS (Certified Test Specification) High Speed with Ethernet DPL Labs Certified Data Rate .6.0Gbpsc, 17.82Gbps agg Supported Data Rate ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD) HDMI Clock 27-340MHz Construction Primary Conductors Solid 28-30 AWG OFC, length-dependent Insulation TMDS Foam PE 4C + HEAC Pairs HDPE / Foamed-PE, length-dependent Shielding TDMS Pairs Al / Mylar Overall AL/Mylar + CU braid 80% coverage Cable Jacket UL CMG fire-rated PVC HDMI Connector Shell Pressed steel with dual grip tabs, 1µ” 24K Gold plated HDMI Connector Pins Solid OFC, 15µ” 24K Gold plated Termination Contactless IR induction soldering HDMI Backshell Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly Mechanical Cable Diameter 0.5m – 3.0m: 30 AWG, 5.7mm/0.22” ø | 5m: 28 AWG, 6.5mm/0.26” ø Mounting Depth 0.5m – 3.0m: 30AWG, 47.0mm/1.85” | 5m: 28 AWG, 56mm/2.20” Cable Bend Radius 0.5m – 3.0m: 30 AWG, 24.0mm/0.94” | 5m: 28 AWG, 28.0mm/1.02” Retention Force (nom) 29.7N (3kg / 6.6lbs) +10/-5% Product SKUs K36036-0050-CH 0.5 Meter K36036-0100-CH 1 Meter K36036-0150-CH 1.5 Meter K36036-0200-CH 2 Meter K36036-0300-CH 3 Meter K36036-0500-CH 5 Meter

Product details

• Brand: Russound
• SKU / model reference: K36036-
• Product category: Brands;HDMI;HDMI Cables;Kordz
• Catalogue status: Send enquiry to confirm stock and current pricing.

Before ordering

Please confirm model, connection, sizing, consumable or device compatibility where applicable. Product images and references should be checked against your existing equipment before purchase.
