Huier 60295 in New Zealand
Explore Huier 60295 from ACP Online New Zealand. This product is listed in our Cables & Accessories;Security Cable range for customers seeking dependable business and technology solutions.
Product information

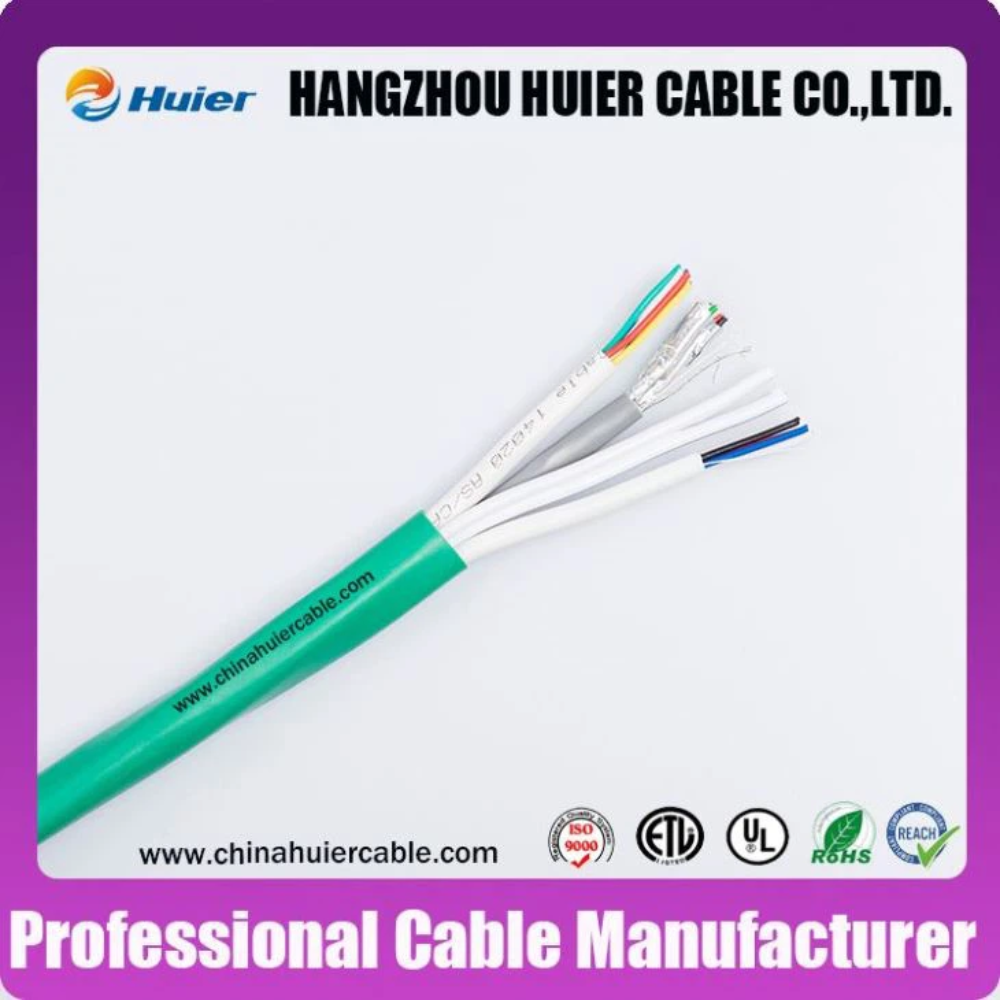

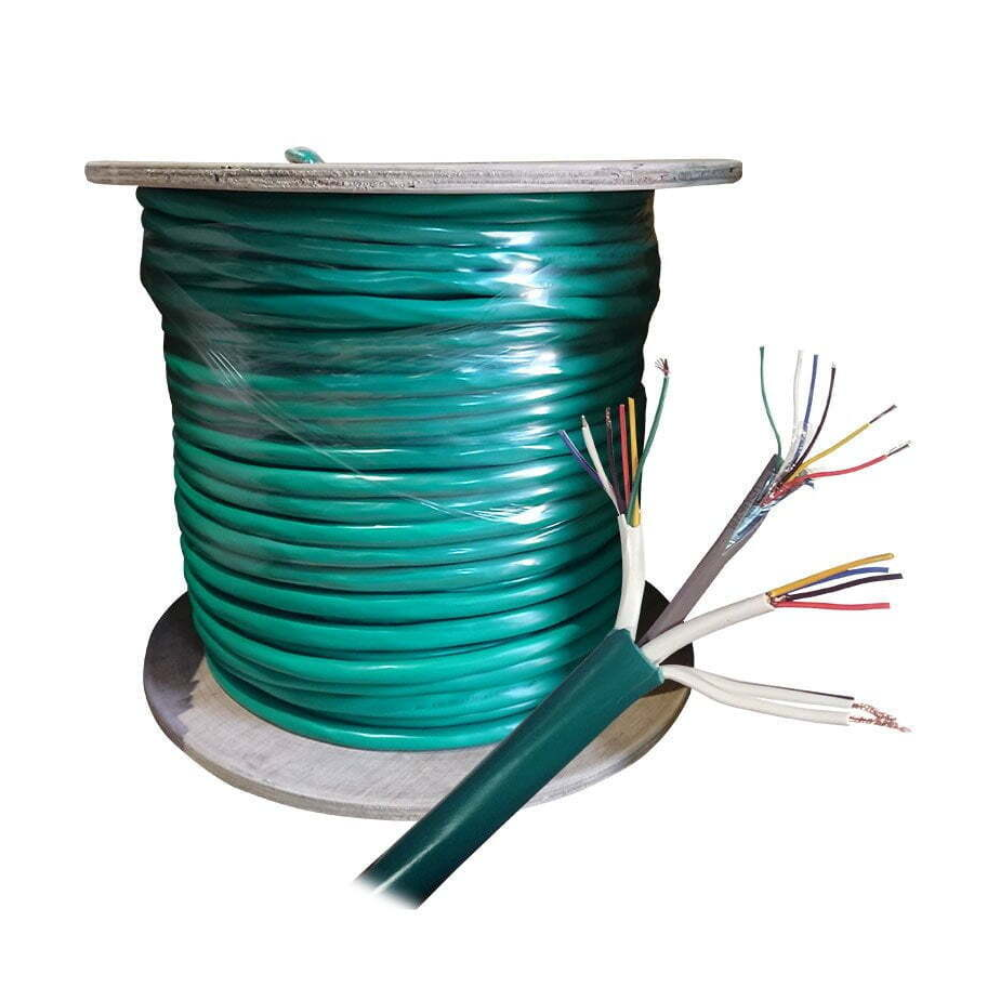

Huier 60295 Figure-8 and Multi-Core Composite Security / Access Control Cable – OSDP & RS485 – Green Sheath – 200m Wooden Drum – 1 * 6-Core Screen Cable + 1 * 4-Core 0.5mm Cable + 1 * 6-Core 0.5mm Cable + 1 * Figure-8 / Twin 0.75mm Cable Construction Parameters :- A: 6C Screened Security Cable Conductor: 6C Stranded Tinned Copper Insulation: PVC Shield 1: PET Tape Drain Wire: Stranded Tinned Copper Shield 2: Aluminum Foil Rip-cord: Yes Sheath: PVC Grey B: 4C Unscreened Security Cable Conductor: 4C Stranded Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC White C: 6C Unscreened Security Cable Conductor: 6C Bare Copper Insulation: PVC Rip-cord: Yes Sheath: PVC D: Twin Speaker Cable with Black Stripe Conductor: 2C Bare Copper Sheath: PVC with Black String Rip-cord: Yes Sheath: PVC Mechanical Properties (20℃): Rate Voltage 300V Rate Temperature -20℃ up to +75℃ Conductor Resistance(DCR@200C) ≤10.0Ω/100m Insulation Resistance(DC) ≧0.010Ω/km Conductor breaking elongation rate ≧15% Insulation tension ≧16MPa Sheath tension before aging ≧10MPa Insulation breaking elongation ≧200% Sheath breaking elongation before aging ≧125% Sheath breaking elongation after aging ≧100%
Product details
- Brand: Huier
- SKU / model reference: 60295
- Product category: Cables & Accessories;Security Cable
- Catalogue status: Send enquiry to confirm stock and current pricing.
Before ordering
Please confirm model, connection, sizing, consumable or device compatibility where applicable. Product images and references should be checked against your existing equipment before purchase.
