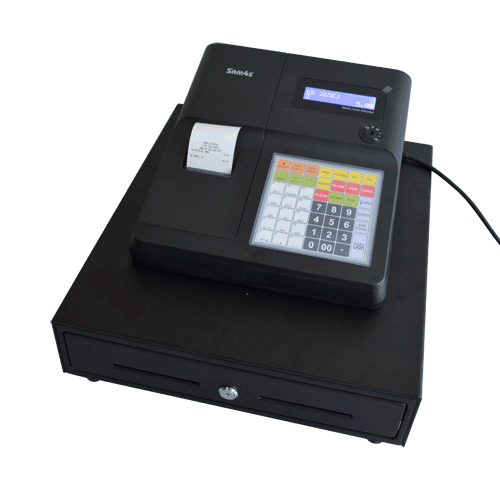

High featured Single Station Cash Register
Flat 49 Key Keyboard
15 Departments
1000 PLU’s
Various programmable functions
Receipt on – off / Late Receipt
Customer Rear Display
NEW 4 Coin/4 Note SMALL Cash Drawer
Preset for Australian Settings, inc. GST
Alpha Programming Keyboard
Software Utilities available only if optional RS232 port is installed
?
Paper | T5750 | 57mm x 50mmØ Thermal Paper Roll (approx. length 28m) |
T5770 | 57mm x 70mmØ Thermal Paper Roll (approx. length 59m) | |
RS232 Port | EIF260 | RS232 Kit (DB9 Female) |
Printers *Needs to have EIF260 installed | ELLIX-10 | 57mm Thermal Printer |
ELLIX-20 ELLIX-30 ELLIX-40 | 80mm Thermal Printer | |
SRP-275 SRP-270 | 76mm Dot Matrix Printers | |
Cables *Needs to have EIF260 installed | PC Com Cable | PC Communication Cable (2 m) |
Printer Cable | Remote Printer Cable (2 m) | |
Extension Cable | Convertor Cables for RJ-45 to DB9 Male/Female Adaptor | |
Misc. *Needs to have EIF260 installed | Gender Changer | Serial Port (DB9) Male to Male Connector |
USB-Serial Convertor | USB to Serial Convertor (when there is no DB9 Serial Port on the PC) | |
Additional Cable | Additional meters of Serial Cable when longer then 2 meters |
Printing Method | Single Station Direct Thermal Type | |
Printing Speed (Max.) | up to 8.0 LPS | |
Paper Width | 57.5 ± 0.5mm | |
Paper Roll Diameter | Max Ø 70.0mm | |
Keyboard | 49 Flat Key Keyboard | |
Display | Operator: | 10 Digit VFD |
Customer | 10 Digit VFD | |
Memory | SRAM: 1 Mbits Flash ROM | |
Memory Protection | 60 Days | |
Drawer | 4B/4C | |
OS Functions | 1000 PLU’s | |
15 Departments | ||
32 Character per Line Logo Description | ||
18 Character Description | ||
10 Clerks | ||
Currency Converter | ||
Calculator function | ||
Max. 800 Line Electronic Journal | ||
Automatic date and time | ||
Alpha overlay programming | ||
Weight | 7.8 Kg | |
External Dimensions (W x D x H) | 325 x 420 x 227 mm | |
EMC/Safety Standards | CE, FCC, UL, TUV, GS | |
Power Supply | AC 230V± 10% | |
