Trojan TDL-TB in New Zealand
Trojan TDL-TB is available through ACP Online NZ within our Access Control;Access Control Accessories collection. Review the information below to confirm that it suits your equipment, application and compatibility requirements.
Product information

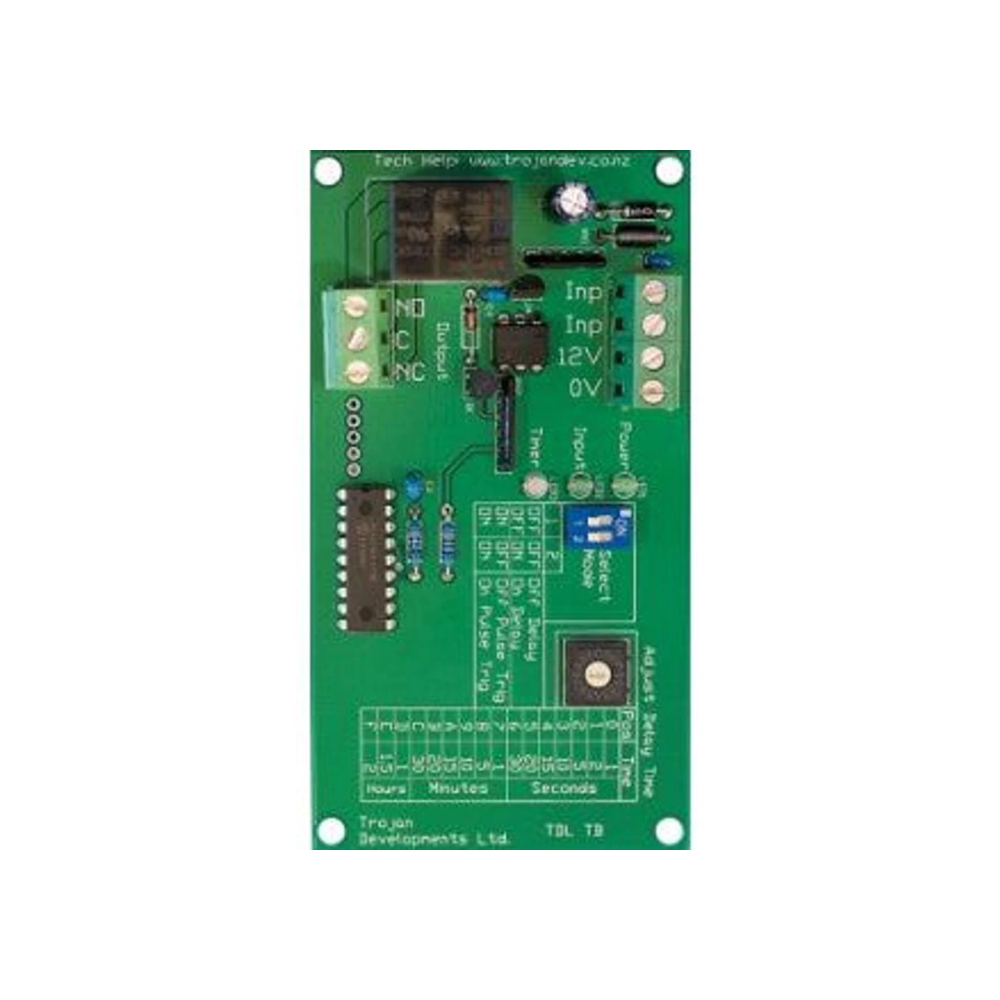

Trojan TDL-TB Timer Board – Used In Access Control The TDL multi-function timer allows you to set a definitive time duration to operate. There are 4 input types that it can have: Off Delay (loss of 12Vdc on the input gives an OFF delay on the output) On Delay (gain of 12Vdc on the input gives ON delay on the output) Off Pulse Trigger (the 12Vdc input is lost for a moment which gives an OFF delay on the output) On Pulse Trigger (the 12Vdc input is lost for a moment which gives an ON delay on the output) There are 16 time intervals to choose from which are preset and selected by a rotary dip switch The time intervals are as follows: sec sec sec sec sec sec sec min min min min min min hr hr hr Time 1 2 5 10 15 20 30 1 5 10 15 20 30 1 1.5 2 Dip Switch Position 0 1 2 3 4 5 6 7 8 9 A B C D E F Key Features :- Off Delay (loss of 0Vdc on the input gives an OFF delay on the output) On Delay (gain of 0Vdc on the input gives ON delay on the output) Off Pulse Trigger (the 0Vdc input is lost for a moment which gives an OFF delay on the output) On Pulse Trigger (the 0Vdc input is lost for a moment which gives an ON delay on the output) Time duration is easily set via the rotary dip switch, as listed on the board. Set time will not drift as the components age or the temperature fluctuates. On board LED’s indicate that the board has power, that the input has been operated, that the timer is counting down and that the output is triggered. Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm 2 cable Contact rated at 8 Amps AC/DC Fits TDL-MB mounting system (pictured for reference, not included)
Product details
- Brand: Trojan
- SKU / model reference: TDL-TB
- Product category: Access Control;Access Control Accessories
- Catalogue status: Send enquiry to confirm stock and current pricing.
Before ordering
Please confirm model, connection, sizing, consumable or device compatibility where applicable. Product images and references should be checked against your existing equipment before purchase.
