ONE field terminated RJ45 Connector tool-less plug/male (P1R45M-C6AS) – Kordz in New Zealand
Order ONE field terminated RJ45 Connector tool-less plug/male (P1R45M-C6AS) – Kordz from ACP Online New Zealand. It forms part of our carefully organised Data;Data Accessories;Kordz catalogue for retail, office, security and technology environments.
Product information

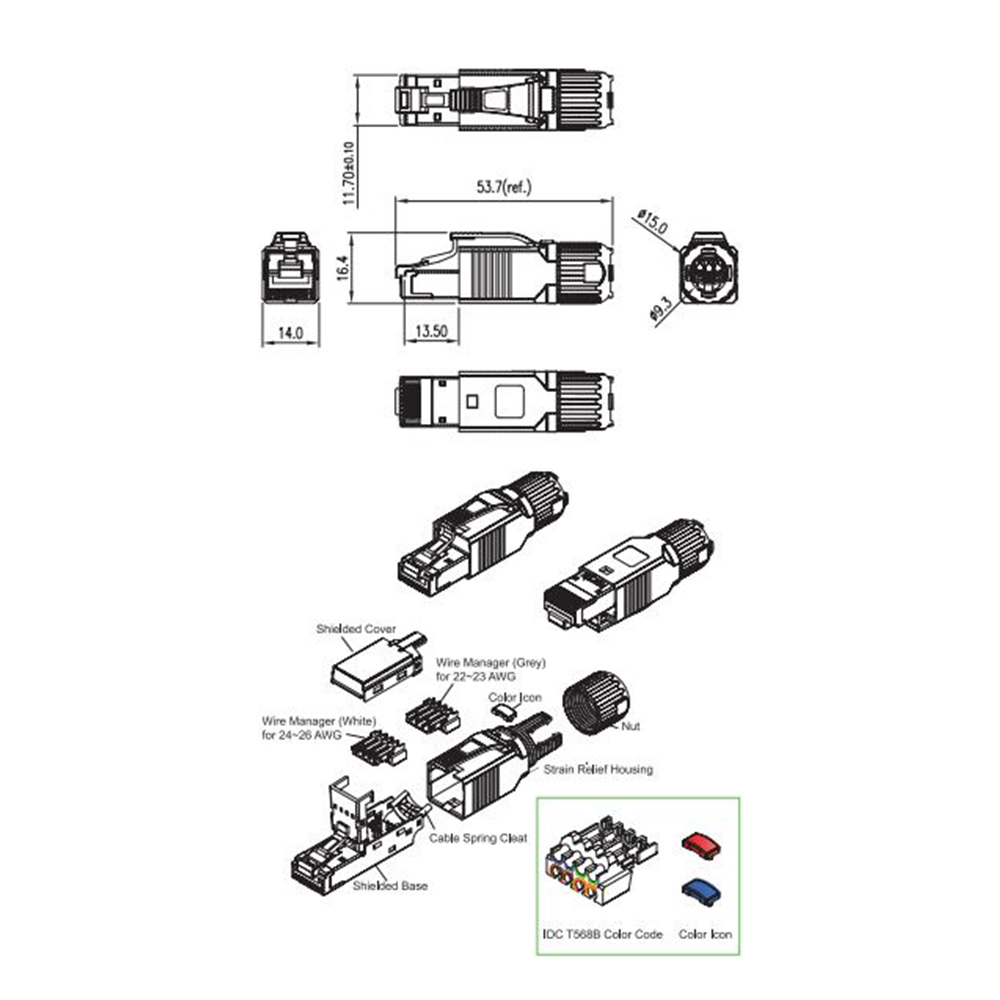

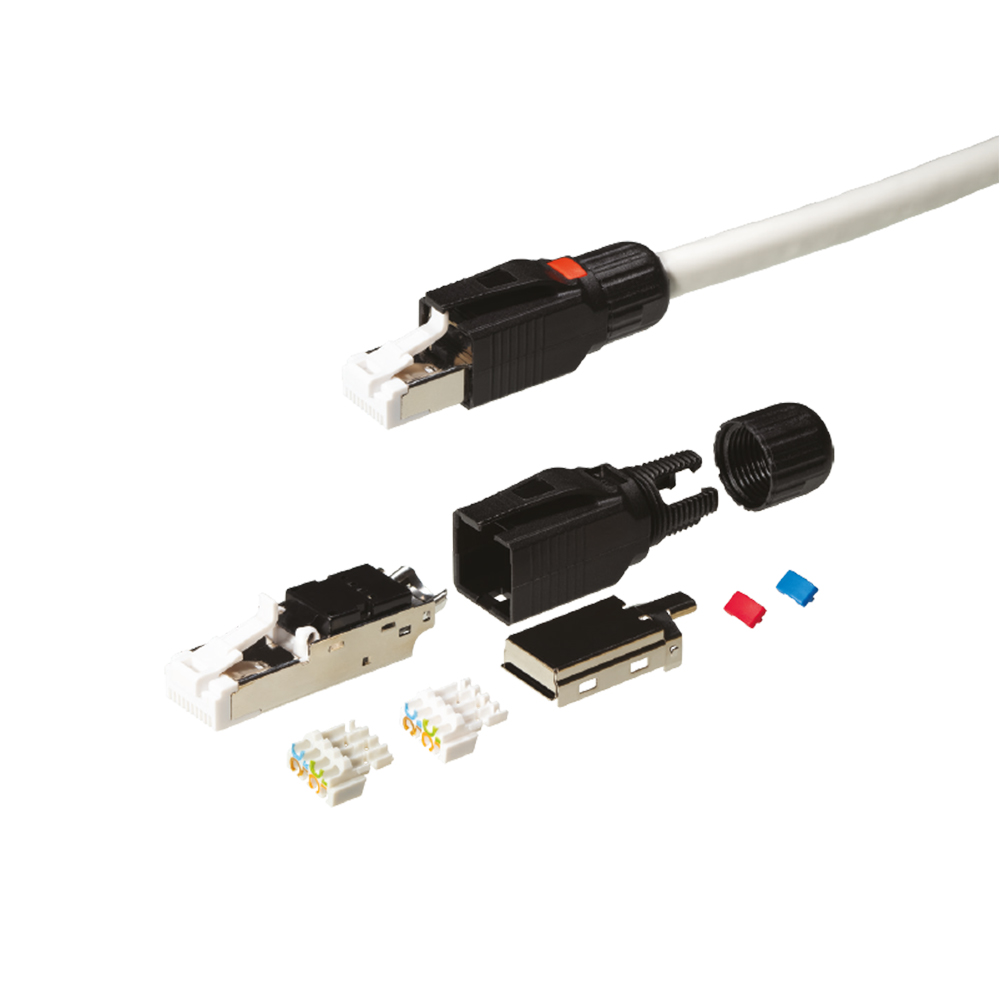

ONE RJ45 CAT6A SHIELDED SITE TERMINATION CONNECTORS The Kordz Category 6a Shielded Field Termination RJ45 Connector offers easy, toolless termination and complies fully with ISO/IEC 11801 2.2 Edition Category 6a and ANSI/TIA-568-C.2 Category 6A standards for applications up to 10GBase-T Ethernet and frequencies up to 500Mhz. It offers a fully shielded brass nickel plated base, bronze nickel plated cover and gold plated phosphor bronze contact pins. Suitable for cable diameters between 6 and 8.5mm, whilst the strain relief is provided by the compression nut on the back of the connector. IDC termination accepts wire guages 22~26AWG. Two different wire managers are provided, one for 22~23AWG wires and the other for 24~26AWG wires. The connector is IP20 rated and 360º degrees shielding for greater tolerances to EMI/EMC. Designed and engineered for site termination and installation ease. TECHNICAL SPECIFICATIONS Performance category: CAT6a Applications standard: ANSI/TIA-568-C.2, IEC 60603-7-51, ISO/IEC 11801 2.2 Edition, CENELEC 50173-1:2011 Application support : 10Base-T to 10GBase-T Housing material: Polycarbonate(PC) UL flammability rating: UL94V-0 [RoHS Compliant] Contact type: Three prong for solid/stranded wires Contact material: Gold over Nickel plating Contact plating: Gold Plating 50μ [1.27μm] Housing colour: White connector / Black outer case Shield type: Shielded Wire-Holder: PBT+10% GF Plug-Contact: T=0.35mm Phosphor Bronze Contact Area: Gold over Nickel Plating IDC Contact: T=0.4mm Phospur Bronze, Sn over Nickel Plating Shielded Base: T=0.5mm Brass, Nickel Plating Shielded Cover: T=0.3mm Phosphor Bronze, Nickel Plating Operating temperature: -40ᴼ to 70ᴼC Current rating: 1.5Amps Dielectric withstanding voltage: 1000Volts AC RMS 60Hz, 1 minute Contact resistance: ≤ 20mΩ @ 100mA max. 50mV max. Insulation resistance: ≥ 500MΩ @500V DC Insertion/Extraction cycles: ≥ 1000 mating cycles Cable to Connector Tensile Strength: 9kg (20lbs) (89N) min. Wire gauge min/max: min: 0.92mm Ø, max: 1.28mm Ø Conductor diameter min/max: min: 0.405mm Ø (26AWG), max: 0.641mm Ø (22AWG) Maximum cable jacket diameter: 6.0 – 8.5mm ODØ PACKAGING Packaging type for each connector: PE Bag Items per box: 10 pcs Box size: 150mm[w] x 110mm[d] x 70mm[h] Master carton box: 28 Inner boxes Master carton size: 485mm[w] x 365mm[d] x 230mm[h] RECOMMENDED TOOL Model No: NO TOOL REQUIRED
Product details
- Brand: Russound
- SKU / model reference: P1R45M-C6AS
- Product category: Data;Data Accessories;Kordz
- Catalogue status: Send enquiry to confirm stock and current pricing.
Before ordering
Please confirm model, connection, sizing, consumable or device compatibility where applicable. Product images and references should be checked against your existing equipment before purchase.
