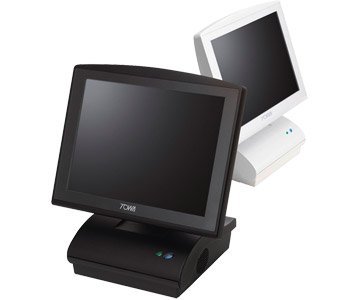

Stunning good looks plus powerful performance bring prestige and style to your point of sale
SYSTEM CONFIGURATION
- Mainboard
- Intel® 825GM + ICH 4, FSB 400MHz (Low Heat/Voltage)
- CPU
- Intel® Ultra-Low-Voltage Celeron M 1.0GHz Fanless
- Memory
- 256MB to 1GB SO-DIMM
- Storage Device
- Intel 2.5″ Serial ATA HDD 80GB or more
Compact Flash Disk. IDE interface
- Power
- External Power Adapter 12V/150W
Power Cable : EURO/UK/AUSTRALIA/JAPAN
- Operating temperature
- 0 to 40°C
- Dimensions
- 375 (W) x 299 (D) x 428 (H) mm
- Weight
- Approx. 9.5 kg (include HDD)
- I/O Interface
- 4 x Serial Port (3 x D-Sub 9 Pins & 1 x RJ45)
1 x Parallel Port (D-sub 25 Pins)
4 x 2.0 USB port
1 x RJ11 for VFD Display
1 x PS/2 for Keyboard
2 x VGA for 2nd Display
1 x Line-out, 1 x Mic-in
- Network
- 1 x RJ45 for 10/100 Base-T Ethernet
- OS
- Not including, Supported XP (Pro,Embedded), WEPOS
- Monitor
- 15″ TFT LCD Monitor (Resolution : 1024 x 768)
- Touch Screen
- Fujitsu 4-wire resistive with waterproof
- Speaker
- Built-in Speakers (1.5 W x 2)
OPTIONS
- Customer Display
- 2 x 20 (5 x 7) Dot Matrix VFD Customer Display
- 2nd Display
- 12.1″ Aluminum 2nd Display (800 x 600) without touch
15″ Aluminum 2nd Display (1024 x 768) without touch
- MSR
- External Magnetic Stripe Card Reader track 1/2/3
- KEYBOARD
- 32-key Programmable Keyboard
- Wireless LAN
- Internal Wireless Module 802.11G (USB)
- ELO TOUCH PANEL
- 5-wire resistive with waterproof
