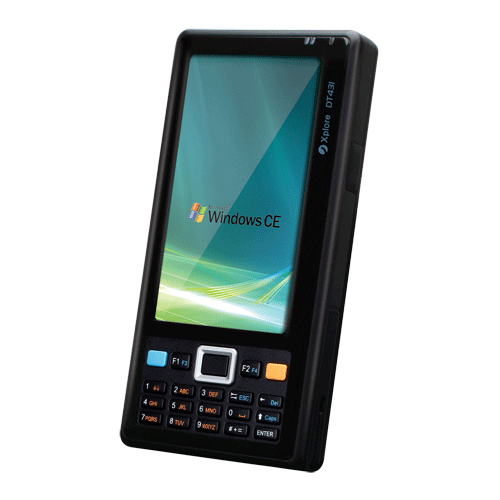

Pocket Size Wifi POS PDA
Ergonomic lightweight Design
Built-in Ambient light sensor
4.3? QVGA Display with Touch Screen
Single SSID enforcements
WiFi Always On connection
Configurable WiFi roaming trigger
Fast seamless roaming between Access Points
Optional add-on modules (1D/2D Barcode Scanner, RFID Reader
Terminal Service Client/ Remote Desktop auto-logon/ Auto-start application
Built-in clone & backup utility for easy field deployment
SDK available for rapid industrial application development
?
MSR Attachement | GSDT430MSR | 3 track MSR attachment |
Scanner Attachment | GSDT430SC1D | 1D Scanner Attachment |
Scanner Attachment | GSDT430SC2D | 2D Scanner Attachment |
RFID Attachement | GSDT430RFID | RFID attachment |
High Capacity Battery | GSDT430EXBATT | Spare High Capacity Battery with cover for DT-430/431 |
Holster | GSDT430CASE | Leather Case for DT-430/431 |
Stylus | GSDT430STPEN | DT-350+ stylus, 5 pack. |
Anti drop String | GSDT350STRING | Anti Drop String for DT-350+/431/430/433 |
Hand strap | GSDT350HSTRAP | Hand Strap for DT-350+/431/430/433 |
Screen Protector | GSDT430SCRPROTECT | Screen Protector for DT-430/431/433 |
Processor | ARM9 533 MHz | |
Operating Platform | Microsoft® Windows® CE 5.0 Professional Edition | |
Memory | 128 MB DDR RAM x 128 MB Flash | |
Memory Expansion | User accessible Micro SD slot with High Capacity (HC) memory card support (up to 32 GB) | |
Keys | 28 keys (incl. Power, Reset, Navigation on, Alpha Numeric, Function, Trigger | |
LED Indicators | Wireless/ Power LED, Configurable LED, Vibrator | |
Display | 4.3? transflective colour TFT LCD display (480×272) | |
I/O Ports | Mini USB Connector USB 2.0 | |
Audio | Mono Speaker | |
Data Communications | WLAN | IEEE 802.11 b/g Security: WEP, WPA, TKIP, WPA2 |
WPAN | Bluetooth v2.0 with EDR | |
WWAN | Optional 3.5G | |
Optional MSR Module | 3-Track Recording Method: Two-frequency coherent phase Standard: ISO7810, ISO7811/2, ISO7811/6, ISO7813 Output: ASCII message with encryption | |
Optional RFID Module | 13.56 MHz Reader/Writer Built in antenna Reading distance: 3 cm typical (tag dependent) Tag Support: ISO14443A/B, Mifare standard, Mifare Ultrlight & Mifare DESFIRE | |
Optional 1D Scanner Module | Scanner engine: 650nm Laser Engine Scan rate: 104 scans per second nominal (Bi-directional) Resolution: 4 Mil minimum element width Scan Range: up to 60 cm (100% UPC) Barcode Symbologies: EAN/UPC, Bookland EAN, Code 11, Code 39, Code 93, Code 128, Discrete 2 of 5, Interleaved 2 of 5, Codabar, RSS, MSI etc. | |
Optional 2D Scanner Module | Scanner engine: 2D Imager Engine Resolution: 752×480 Aiming element: 655nm Laser Scan Range: up to 40 cm (100% UPC) Barcode Symbologies: All major 1D codes, PDF417, MicroPDF417, Composite RSS, TLC-39, Datamatrix, QR Code, Aztec, Maxicode, US Postnet, US PLanet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) | |
Battery | Standard | Lithium Polymer, 1800mAh |
Battery Life | Standard Battery, operating time 8 Hours, Standby Time 100 Hours | |
Charging | 3.5mm DC jack for direct Charging or via Charge Cradle | |
Warranty | 1 Year limited Factory warranty | |
H x W x D | 157 x 79 x 22 mm with Standard Battery | |
Weight | 250g with Standard battery | |
