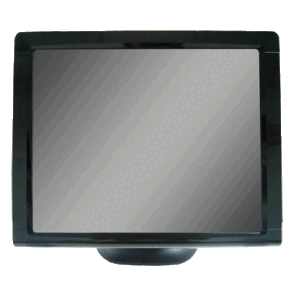

12″ Inch TFT LCD POS Monitor
Microtouch Resistive touch panel
160 Nits
Designed for POS Systems
Sturdy Base
Viewing Area | 12.1″ TFT | |
Resolution | 800 x 600 SVGA | |
Effective Display Area | 246 x 184.5 mm | |
Colour | 262,144 | |
Response time | 15/30 ms | |
Contrast Ratio | 300:1 | |
Brightness | 160 cd/m² | |
View Angle | 90º (H) / 40º (V) | |
VGA Signal | Analog VGA | |
Scan Frequency | H:31.5~48 kHz / V: 56~72 Hz | |
Controls | Brigtness, Contrast, H-Phase, V-Phase, size | |
Touch Panel | 3M – 8 Wire Resistive | |
Power Supply | External Power Adapter AC 100~240V, 50/60Hz, Output DC12V | |
Consumption (Max) | 15W | |
Operating Temperature | 0 ~ 50 ºC | |
Operating Humidity | 10 ~ 85% | |
External Dimensions (W x D x H) | 302 x 160.3 x 287.5 mm | |
Reliability | Card Reader | 300,000 Pass |
EMC/Safety Standards | CE, FCCB, TUV/GS, ETL.ETLC | |
