15m Single Beam Ir Detector
Universal Single Infrared Beam Sensor

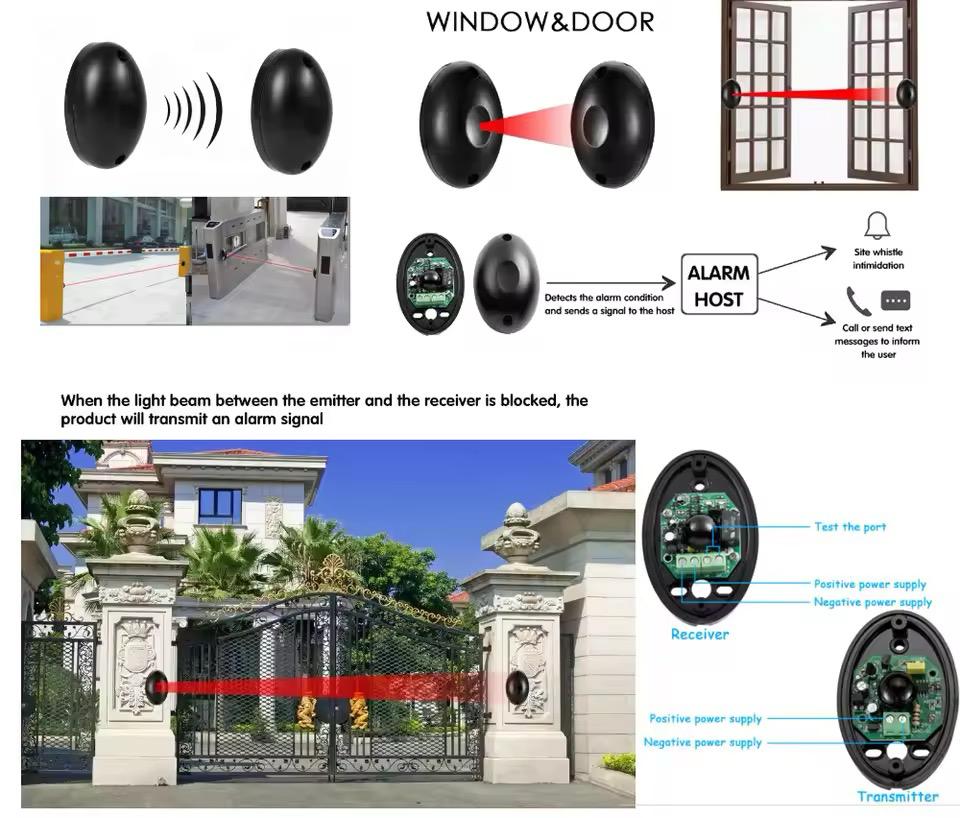

Our Universal Infrared Beam Sensors adds a safety barrier to your gate. This magic eye effectively detects any obstacle (car, child, pet etc.) in the path of your gate and autonomously stops and/or reverses the motion of the gate.

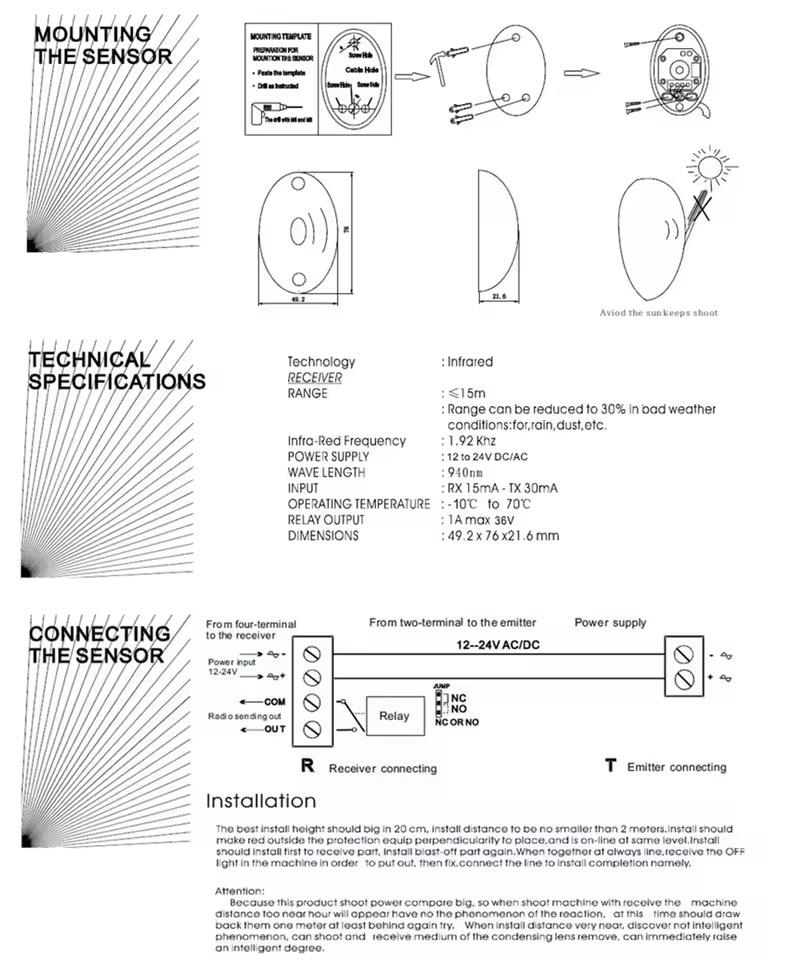

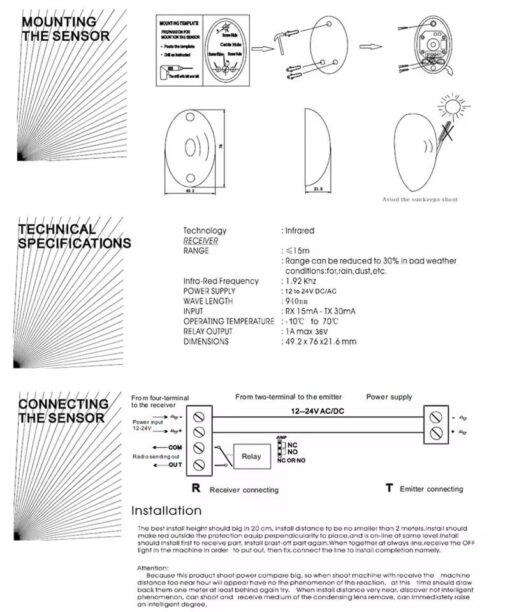

Specifications:
- Range: 15m
- Frequency: 1.92Khz
- Supply Voltage: 12/24V AC/DC
- Wave Length: 940nm
- Operating Temperature: -20*C+70*C
- Relay Output: 1A max 36V
- Protection Class: IP55 EN 60529
- Dimensions: 49 x 76 x 21mm
