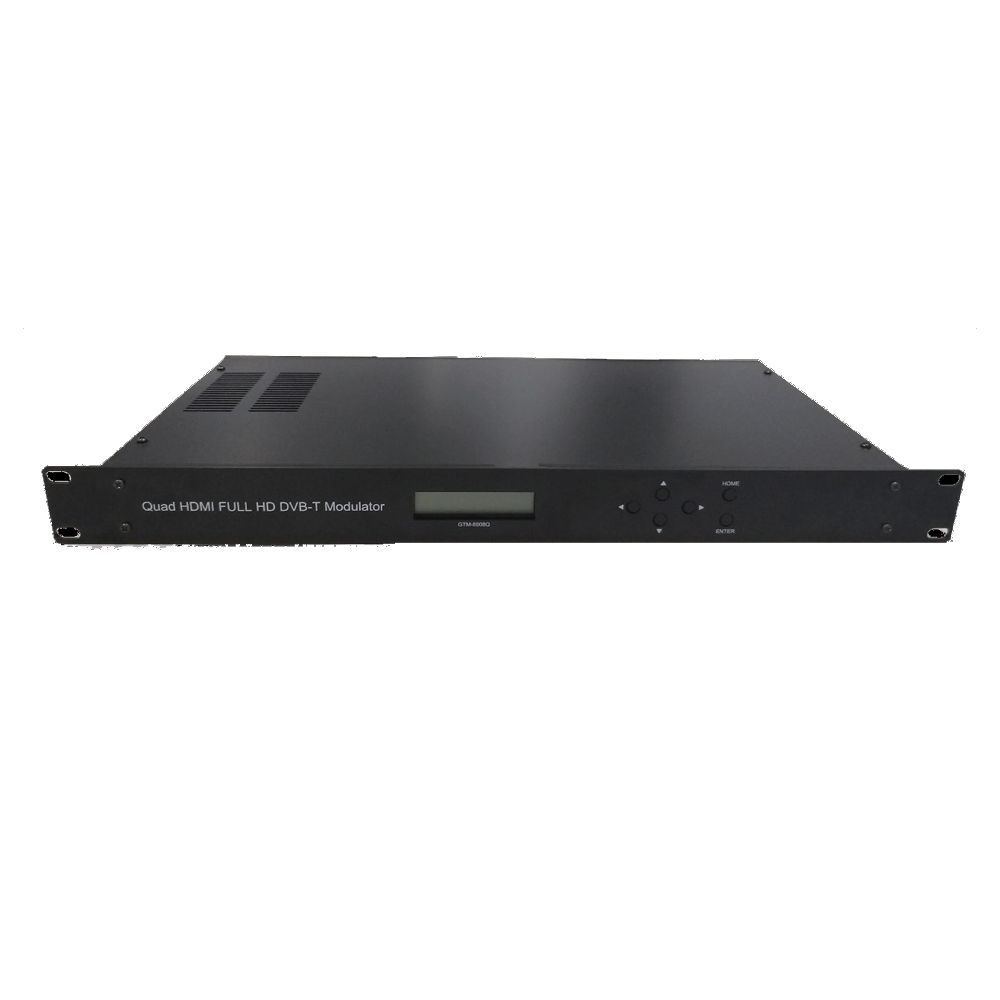

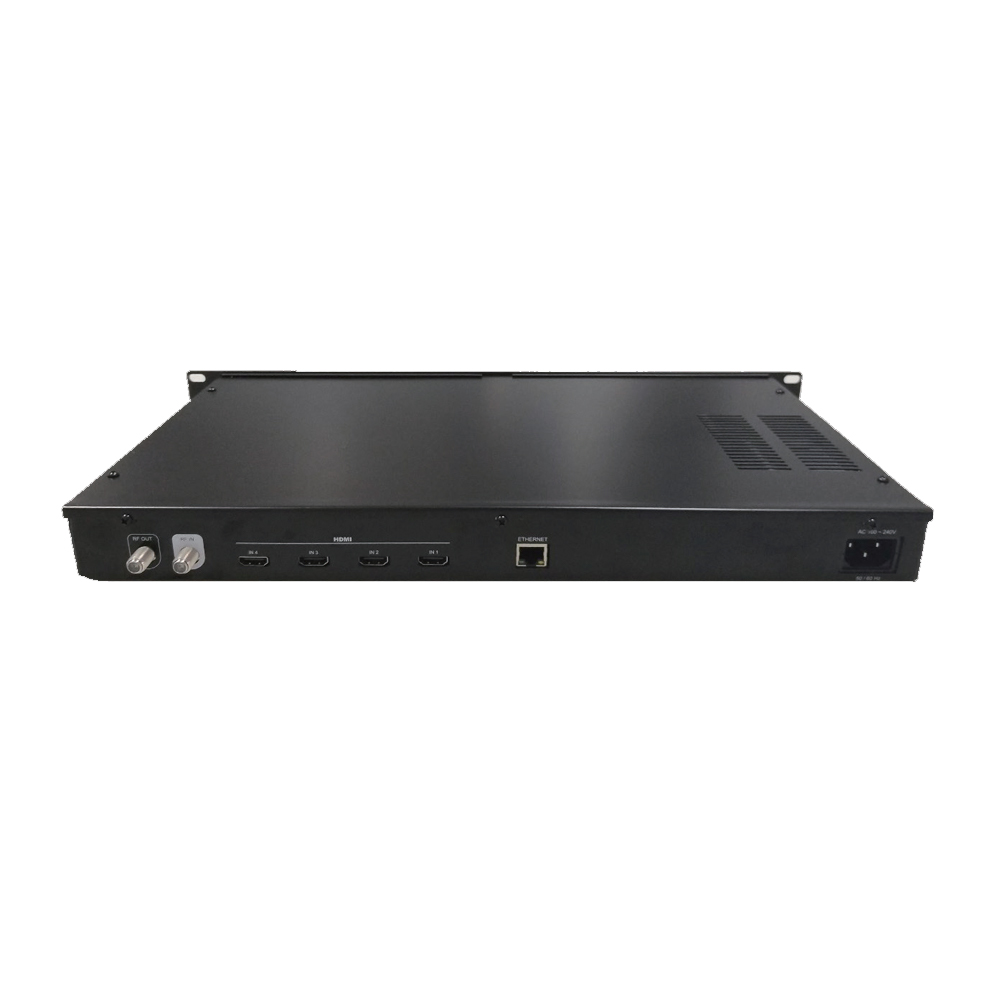

4 Channel DVB-T Modulator ( ARC-4CHDVB-THD ) – ARCO This 4 Channel DVB-T Modulator provides quad HDMI to DVB-T RF system. It is designed for digital broadcasting standard in DVB-T HD. The modulator functions, channel and RF settings can be configured through the LCD front panel display or by LAN connection through a standard browser. With the 4 HDMI inputs and H.264 AVC encoding, GTM-8608Q is very suitable for MDU or local TV broadcasting usage. Source Input Input Channel Video HDMI 1.4 Video System 480i/p, 576i/p, 720p,1080i/p Audio HDMI RF Output Type 1 Multiplex DVB-T with a digital TV service Frequency 177 ~ 858 MHz MER 30dB Min. MODULATION Standard DVBT (ETSI EN 300 744) Constellation QPSK Guard Interval 1/4, 1 Code Rate 1/2, 2/3, 3/4, FFT Carrier Mode 2K, 8K Bandwidth 7MHz, 8MHz Product SKUs ARC-4CHDVB-THD
4 Channel DVB-T Modulator (ARC-4CHDVB-THD) – ARCO
The digital modulator provides quad HDMI to DVB-T RF system. It is designed for digital broadcasting standard in DVB-T HD.
