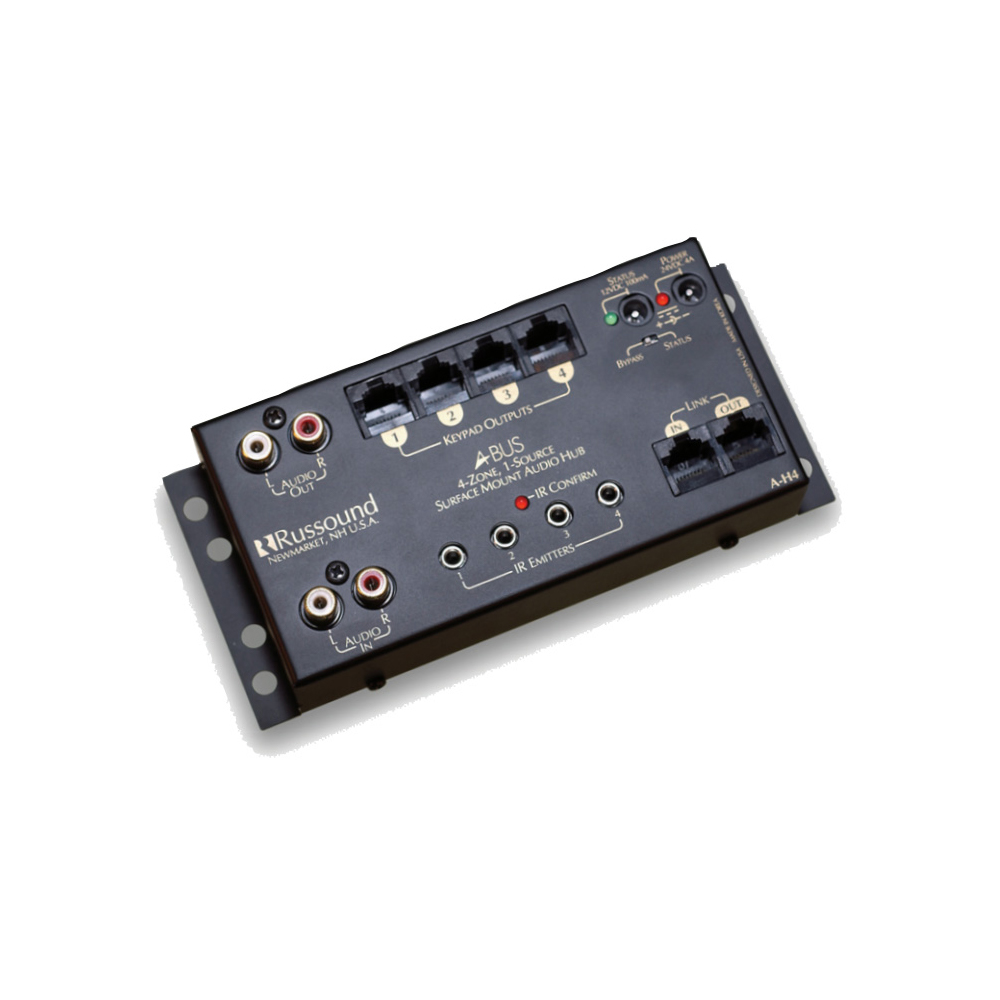

A-BUSS Multizone System 4-Zone 1 Source ( A-H4 ) – Russound The A-H4 A-BUSS Multizone System is the heart of a single-source A-BUS music system. It sends the output of your audio source to A-BUS Amplified Keypads or Amplified Volume Controls in up to four rooms. If you want music in more rooms, multiple A-H4 hubs can link together to provide more A-BUS zones. Overview: With a receiver or preamplifier connected to the A-H4, you can select any of your music sources to enjoy throughout the house. Or you can connect just a single audio source, such as a computer or a CD changer. For added convenience, an optional Status feature indicates on your keypads when the receiver is on and turns all your keypads off when it’s turned off. The A-H4 is designed for surface mounting, such as on a shelf or in a rack with your source equipment. Features: Works with Russound A-K4 Amplified Keypads Provides source status indication on your keypads Mounts unobtrusively near your audio equipment, on a shelf or in a rack or cabinet Includes a source loop output and IR emitter jacks for four source components Links to other hubs for more zones Specifications: Shipping Dimensions: 3.4″ (W) x 6.8″ (H) x 2.0″ (D) (8.7 x 17.1 x 5.1 cm) Shipping Weight: 0.9 lbs (0.4 kg) Audio Input Connectors: Line-level stereo RCA jacks Control Link Input & Output : RJ-45 jacks, T568A standard IR Emitter Connectors: (4) 1/8″ (3.5 mm) TS jacks, tip positive Keypad Outputs : (4) RJ-45 jacks, T568A standard Power Connector : 2.5 mm jack, tip positive Power Requirement(s): 24 VDC 2.5 A (use Russound A-PS power supply) Status Power (optional): 12 VDC 100 mA Status Power Connector: 2.5 mm jack, tip positive
