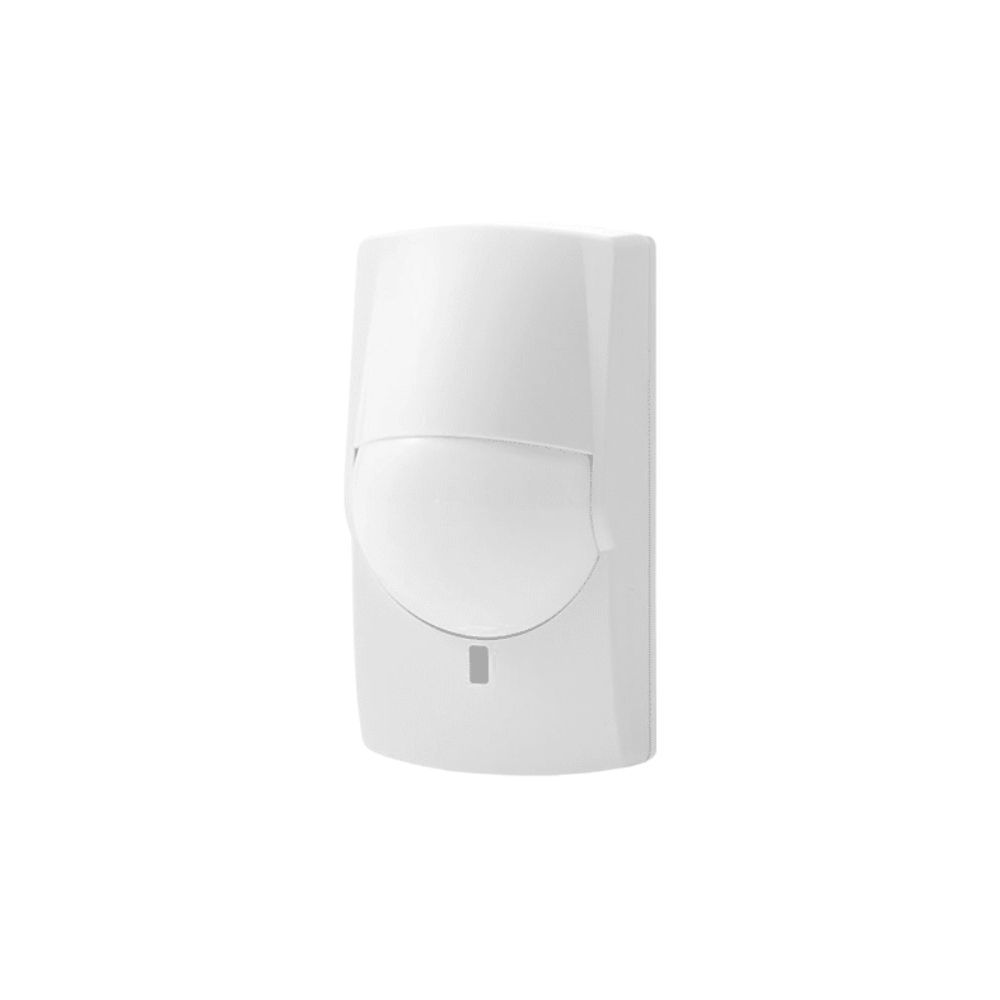

AAP Infinity-Motion

AAP Infinity-Motion Battery-Powered Wireless PIR Detector for EC, ESL & ESX Alarm Control Panels – Works with Infinity Link Features :- Detection Method: Passive Inrared Coverage: 12m x 12m @ 85 Degrees Mounting Height: 1.5 – 2.4m Detection Zones: 78 Zones Sensitivity: 1.6 deg.C @ 0.6m/sec Detection Speed: 0.3m – 1.5m/sec Pulse Count: Approx 20 sec (2 or 4) Wireless Range: Up to 500m Line of Sight Frequency: 915Mhz Modulation: GFSK Supervision: 7 minutes Protocol: infinity 2 way encrypted (freelink) LED Indicator: On/Off Selectable Tamper Switch: Front Cover Tamper Battery Type: 1 x CR123A lithium Battery Life: Up to 5 Years Battery Low voltage: 2.4 Volts Operating Temperature: -20 to 50 Deg. C Environment Humidity: 85% max Dimensions: 115mm x 62mm x 50mm Event Transmission: Alarm, Tamper, Low Battery & Supervision Requires Infinity Link
