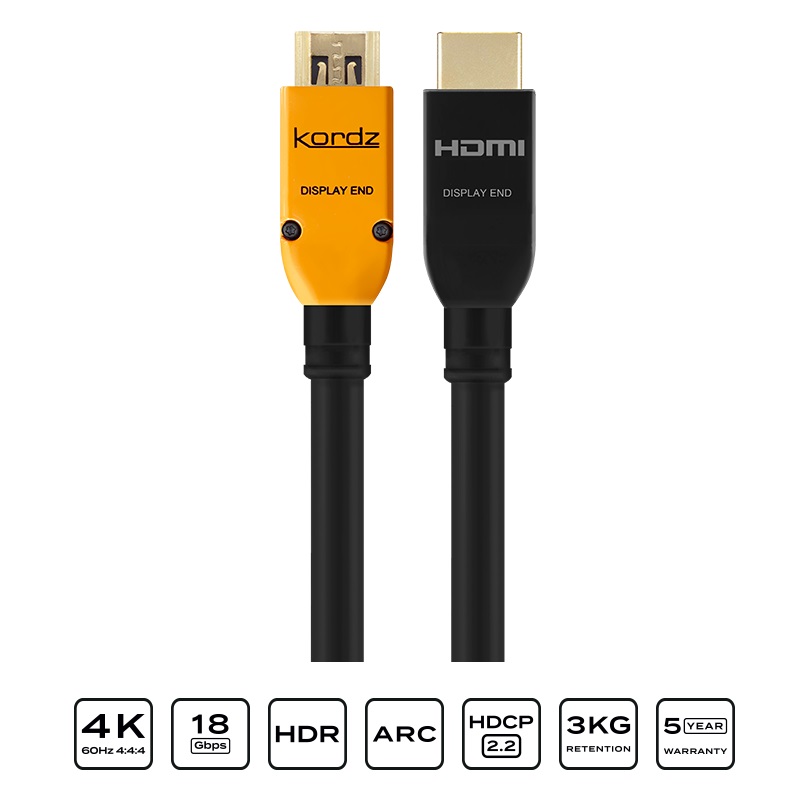

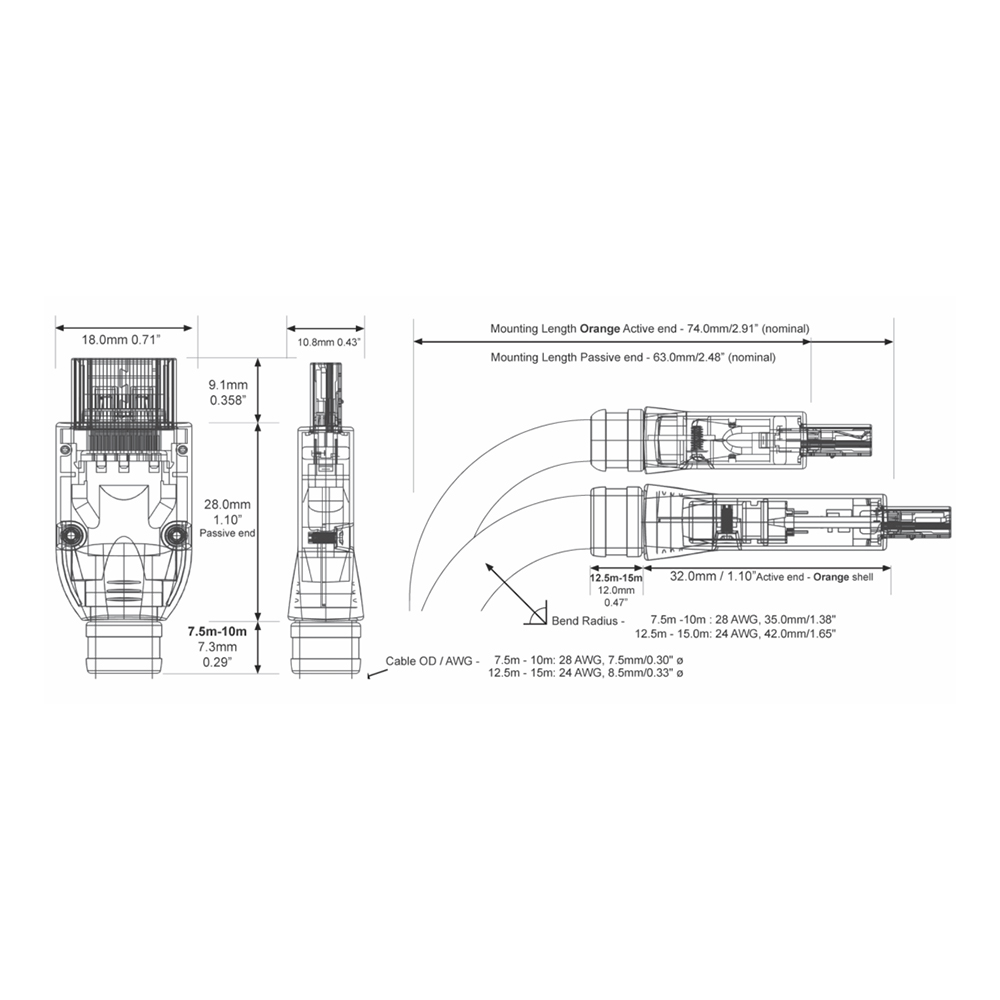

Active Copper HDMI Cable PRS3 Series, 4K UHD 18Gbps – Kordz Kordz Active Copper HDMI Cable PRS3 Series features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity. Engineered to mitigate connector dropout potential – not suitable for repeated plug/unplug events. Features DPL Certified 4K 18G-DC High Speed with Ethernet, all lengths Spectra 7 Active 7.5m – 12.5m lengths, optimized with VerifEYE™ 18mm wide connector engineered to fit through 1”/25mm conduit Induction soldered pin transitions for benchmark inter-terminal uniformity Unique grip tab connectors for permanent installations 100% of units tested on the production line for electrical continuity on all pins, with Bit Error Rate (BER) application test UL CMG fire rated in all lengths 5 Year Warranty Technical Specifications HDMI CERTIFICATION 10.0m – 30.0m ACTIVE HDMI CTS Certification: High Speed with Ethernet DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD) Supported HDMI Clock: 27-340MHz Construction Primary Conductors: Solid 24-28AWG OFC, length-dependent Insulation on TMDS: HDPE Insulation on 4C + HEAC Pairs: HDPE/Foamed PE/Polyolefin, length-dependent Shielding on TMDS Pairs: Al/Mylar Shielding Overall: AL/Mylar + AL braid 80% coverage Cable Jacket: UL CMG fire-rated PVC HDMI Connector Shell: Pressed steel with dual grip tabs, 1μ” 24K Gold plated HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated Termination: Contactless IR induction soldering HDMI Backshell: Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly HDMI Active Backshell: Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly Mechanical Cable Diameter: 7.5m – 10.0m: 28 AWG, 7.5mm/0.30” ø | 12.5m: 24 AWG, 8.5mm/0.33” ø Mounting Length: Source End: 63.0mm/2.48” & Display End: 74.0mm/2.91” Cable Bend Radius: 7.5m – 10.0m: 28 AWG, 35.0mm/1.38” | 12.5m: 24 AWG, 24.0mm/1.65” Retention Force (nom): 29.7N (3kg / 6.6lbs) +10/-5% Product SKUs K36136-0750-CH 7.5 Meter K36136-1000-CH 10 Meter K36136-1250-CH 12.5 Meter
