Active Optical HDMI Cable PRS3 CP Series , 4K UHD 18Gbps – Kordz

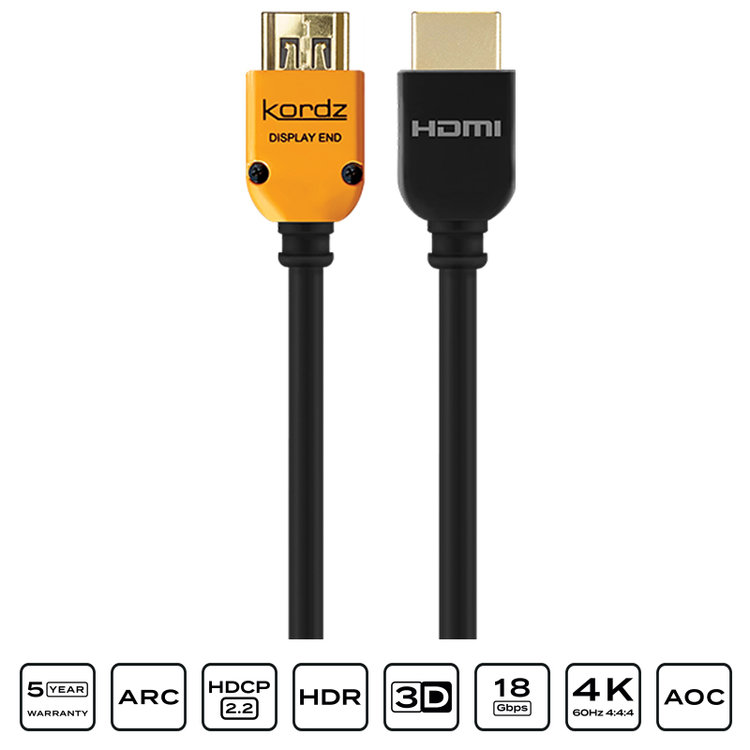

Active Optical HDMI Cable PRS3 CP Series , 4K UHD 18Gbps – Kordz Kordz Active Optical HDMI cable PRS3 Series features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg retention. Engineered to mitigate connector dropout potential – not suitable for repeated plug/unplug events. Features Active Optical Cable (AOC) 7.5m – 30m, 4K/UHD 18Gbps certified by DPL Labs™ 18mm wide connector engineered to fit through a 1”/25mm conduit Reinforced internals for superior flexibility and pull strength during installation Light weight & flexible No external power requirements – works just like a 1m HDMI Cable 100% of units tested on the production line for electrical continuity on all pins with additional 4K (2160p/60), 4:4:4, 17.82Gbps application test High Speed, all lengths LSZH fire rated 5 Year Warranty Technical Specifications HDMI CERTIFICATION 7.5m – 30.0m ACTIVE OPTICAL DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD) Supported HDMI Clock: 27-340MHz MECHANICAL Cable Diameter: 5.00mm±0.2mm / 0.19” Ø Mounting Length: 70.0mm/2.76” Cable Bend Radius: 20.0mm/0.78” Retention Force (nom): 9.8N (1kg / 2.2lbs) +10/-5% CONSTRUCTION TDMS: 4x Polymer Insulated Glass Fibres Conductors: 32AWG Tinned copper wire Insulation on TMDS: Polymer Insulation on 4C + HEAC Pairs: Solid Polyolefin ≤ 2.0 relative permittivity Shielding Overall: AL/Mylar Cable Jacket Material: LSZH Composite, 7.5m-20m lengths HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated Active Technology: Directional, In-shell Optical Light Engine Termination: Contactless IR induction soldering HDMI Backshells: Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly Product SKUs K36232-0750-CH 7.5 Meter K36232-1000-CH 10 Meter K36232-1250-CH 12.5 Meter K36232-1500-CH 15 Meter K36232-1750-CH 17.5 Meter K36232-2000-CH 20 Meter K36232-2500-CH 25 Meter K36232-3000-CH 30 Meter
