Active Optical HDMI Cable PRS3 Series, 4K UHD 18Gbps – Kordz

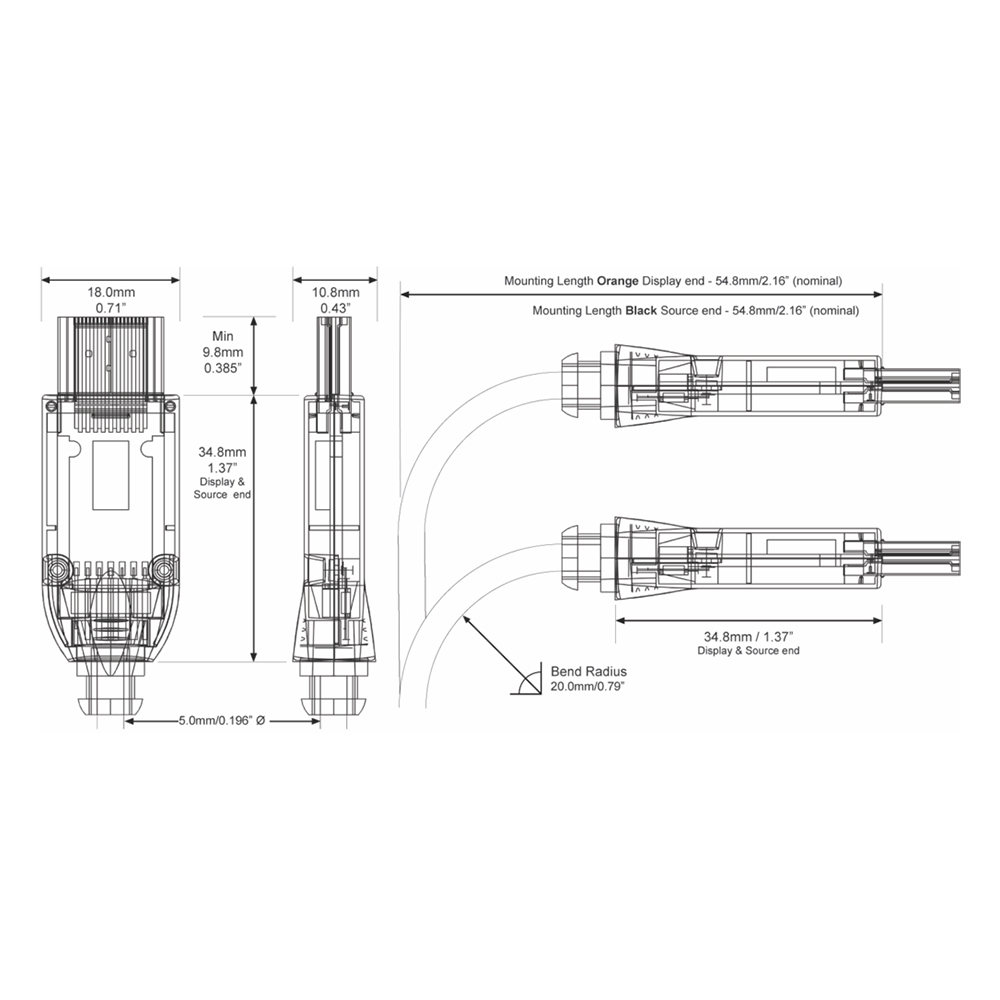

Active Optical HDMI Cable PRS3 Series, 4K UHD 18Gbps – Kordz The Active Optical HDMI Cable AOC cable is incredibly lightweight, flexible and durable and is designed and engineered specifically with Home Technology Professionals and Commercial integrators in mind, whilst the end user will enjoy its performance capabilities to provide 4K resolutions with HDR and more. The design elements that make it stand out from the rest, is the really smooth, thin outer jacket making it easy to pull through joists and studs and the 20kg (44 pounds) pull rating. The connector head-shell has been designed to be incredibly compact, and only 18mm wide, making it easy to pull through 25mm (1”) conduit. It is currently available in lengths of 25.0m & 30.0 meters. Features Active Optical Cable (AOC) 25m & 30m, 4K/UHD 18Gbps certified by DPL Labs™ 18mm wide connector engineered to fit through a 1”/25mm conduit Reinforced internals for superior flexibility and pull strength during installation Lightweight & flexible No external power requirements – works just like a 1m HDMI Cable 100% of units tested on the production line for electrical continuity on all pins with additional 4K (2160p/60), 4:4:4, 17.82Gbps application test High Speed, all lengths LSZH fire rated 5 Year Warranty DPL Laboratories 4K-18G Deep Colour DPL Laboratories, Inc. are experts on high-bandwidth digital signalling solutions. The respected DPL 4K Product Certification Program is designed to combat the fears of cable and display manufacturers and end users alike. Technical Specifications HDMI CERTIFICATION 25m – 30.0m ACTIVE OPTICAL DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD) Supported HDMI Clock: 27-340MHz MECHANICAL Cable Diameter: 5.00mm±0.2mm / 0.19” Ø Mounting Length: 70.0mm/2.76” Cable Bend Radius: 20.0mm/0.78” Retention Force (nom): 9.8N (1kg / 2.2lbs) +10/-5% CONSTRUCTION TDMS: 4x Polymer Insulated Glass Fibres Conductors: 32AWG Tinned copper wire Insulation on TMDS: Polymer Insulation on 4C + HEAC Pairs: Solid Polyolefin ≤ 2.0 relative permittivity Shielding Overall: AL/Mylar Cable Jacket Material: LSZH Composite, 25m-30m lengths HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated Active Technology: Directional, In-shell Optical Light Engine Termination: Contactless IR induction soldering HDMI Backshells: Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly Product SKUs K36212-1000-CH 10 Meter K36212-1500-CH 15 Meter K36212-2000-CH 20 Meter K36212-2500-CH 25 Meter K36212-3000-CH 30 Meter
