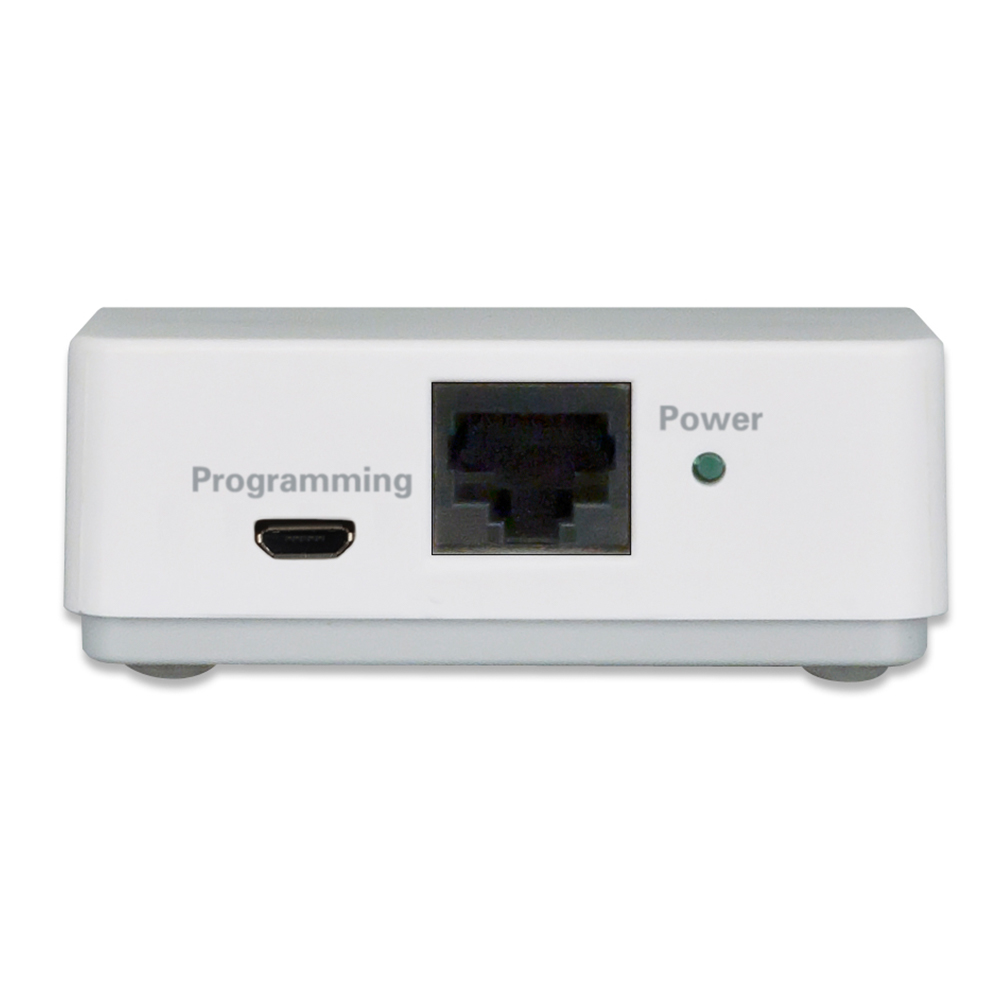

Bluetooth Receiver Source (BTC-1X) – Russound The BTC-1X Bluetooth Receiver Source module is a transceiver that lets you wirelessly connect a portable media player, smartphone, or other Bluetooth equipped device to any Russound MCA-Series controller. This unit only works with a Russound MCA-Series controller. Can’t work by itself. The BTC-1X can be installed anywhere and can extend Bluetooth reception beyond the normal limits. It can even be programmed with a custom passcode and room name for easy identification when more than one is installed in a home, using only a USB cable and a free software download. Features: Installs via a single CAT-5e up to 300′ (91.4m) away from the MCA-Series Controller Adds a Bluetooth streaming source connection Dramatically extends Bluetooth range up to 49′ aptX ® audio codec for enhanced sound quality Custom Naming and Passcode for easy identification and secure connections Specifications: Shipping Dimensions: 3.5″ (W) x 1.3″ (H) x 3.8″ (D) / (8.9 x 3.2 x 9.5 cm) Product Dimensions: 2.2″ (W) x 1.0″ (H) x 2.8″ (D) / (5.6 x 2.6 x 7.0 cm) Shipping Weight: 0.3 lbs (0.1 kg) Connections: (1) Programming connection: MicroUSB (cable not included) (1) RJ-45 controller connection (T568A standard) Frequency Range: 2.402 – 2.483.5 MHz Max Cable Length: 300′ (CAT-5e) to controller P ower Requirement(s): Power supplied by the controller via CAT-5
Bluetooth Receiver Source (BTC-1X) – Russound
The BTC-1X Bluetooth® module is a transceiver that lets you wirelessly connect a portable media player, smartphone, or other Bluetooth equipped device to any Russound MCA-Series controller. It transmits balanced line audio to the XStream Bluetooth input. The BTC-1X also supports the aptX codec, providing enhanced audio quality that is far superior to standard Bluetooth audio.
