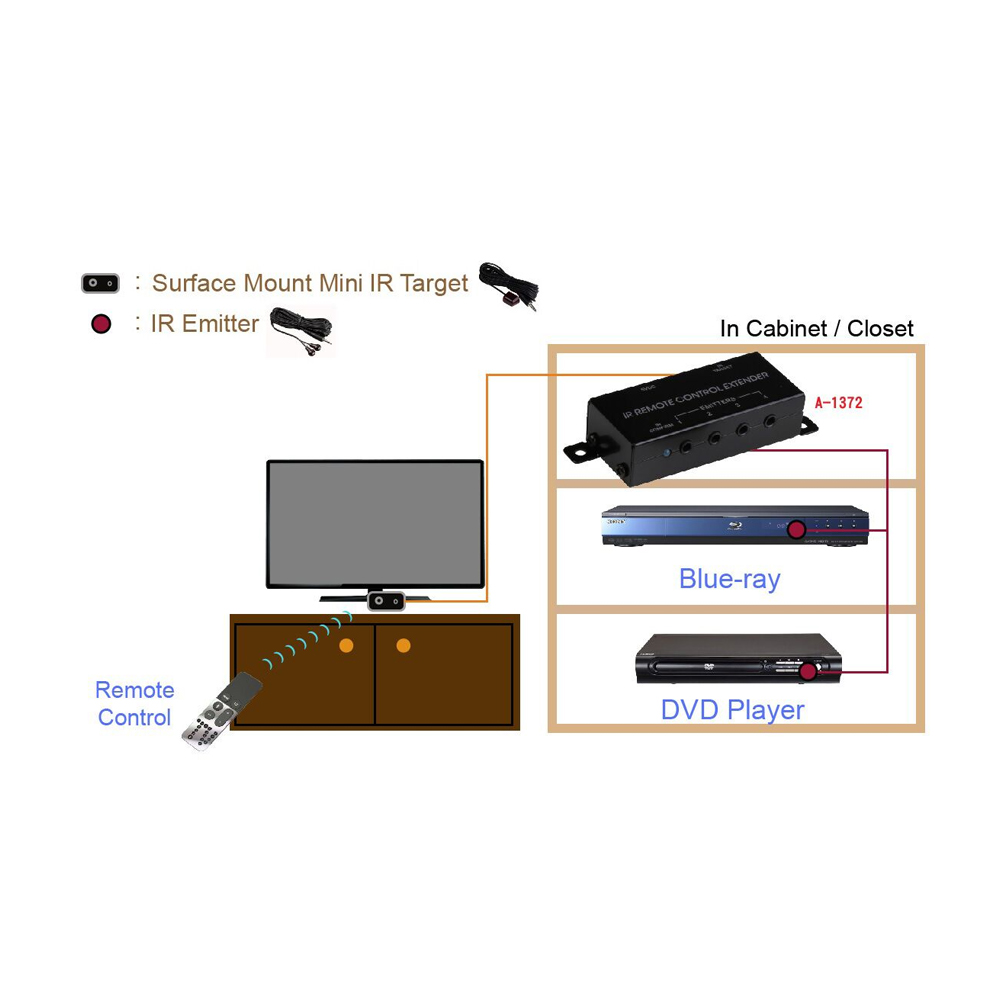

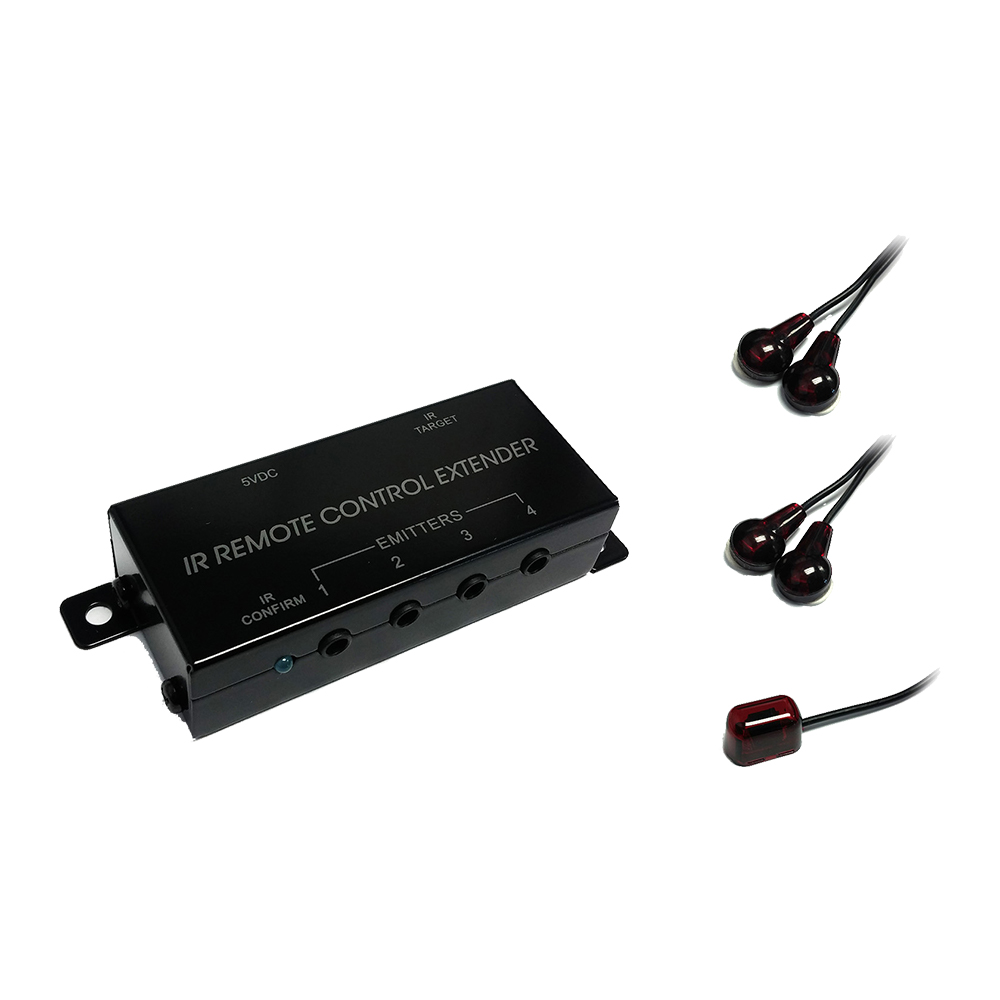

Compact IR Repeater Kit Four emitter output connections. Power receptacle with LED indicator. Large detachable IR target connection. Compact size for mounting near audio equipment Kit Included: 1 x Compact IR Repeater Box 1 x Surface Mount Mini IR Target 2 x Dual IR Emitter 1 x Power Supply Specifications: Main Unit: Transmit Frequencies: 38 kHz & 56 kHz Power: 5VDC 500mA Dimensions: 93 x 32 x 20 mm (L x W x H) IR Target: Receive Frequency Range: 34 kHz to 60 kHz Range: 40ft. @ 38 kHz, 25ft. @ 56 kHz Connector Type: 1/8” (3.5mm) TRS mini plug Connections: Tip->Signal, Collar->+Voltage, Ring->Ground Cable Length:3 Meters Emitter: • Connect cable: 3 Meters • Connect plug: 3.5mm Mono mini-plug • Connections: Tip Signal, Ring Ground • Wavelength: 940n
Compact IR Repeater Kit (ARC-1373) – Arco
Compact IR REPEATER KIT Arco ARC-1373: Four emitter output connections, power receptacle with LED indicator, large detachable IR target connection with compact size for mounting near audio equipment.
