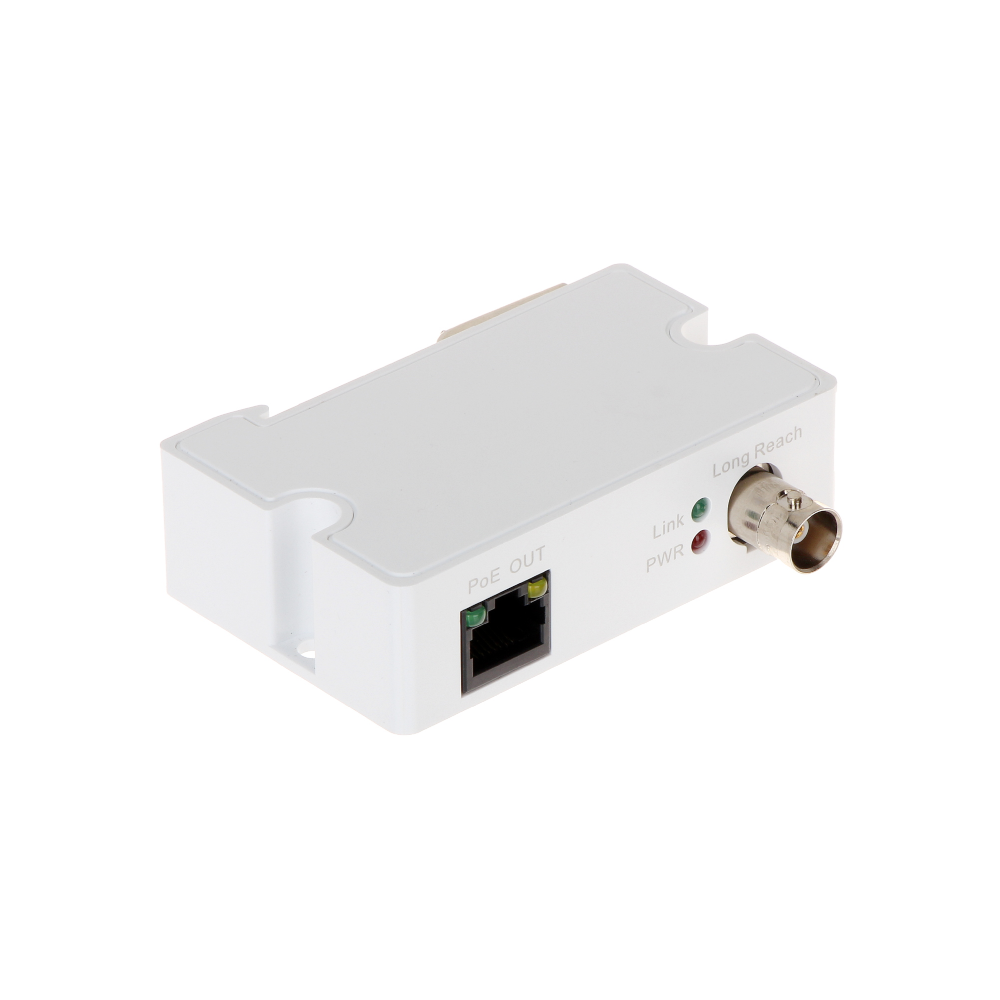

D-Tech DH-LR1002-1ET

D-Tech DH-LR1002-1ET DIN-RAIL IP / PoE over Coax Converter / Extender – Single Unit – Camera-end Unit – Provides PoE Power & Data to The Camera Key Features :- Functional Ports: One (1) RJ45, 10/100 Mbps Base-TX, One (1) BNC Transmission Distance: 100 Mbps: 400 m (1312 ft), 10 Mbps: 1000 m (3280 ft) Power Consumption: <2 W Transmission Bandwidth: RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps PoE Protocol: IEEE802.3af (PoE) and IEEE802.3at (PoE+) Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x Operating Temperature: – 30 °C to 65 °C (– 22 °F to 149 °F) Application Humidity: 5% to 95% Lightning Protection: Common Mode: 4 KV, Differential Mode: 2 KV Dimensions (W x D x H): 79.0 mm x 52.0 mm x 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.) Weight: 0.61 kg (1.34 lb) Depending on your system, the LR1002 or LR1002-1EC is required with this unit. Please see the attached ePoE Configuration Guide image for more information
