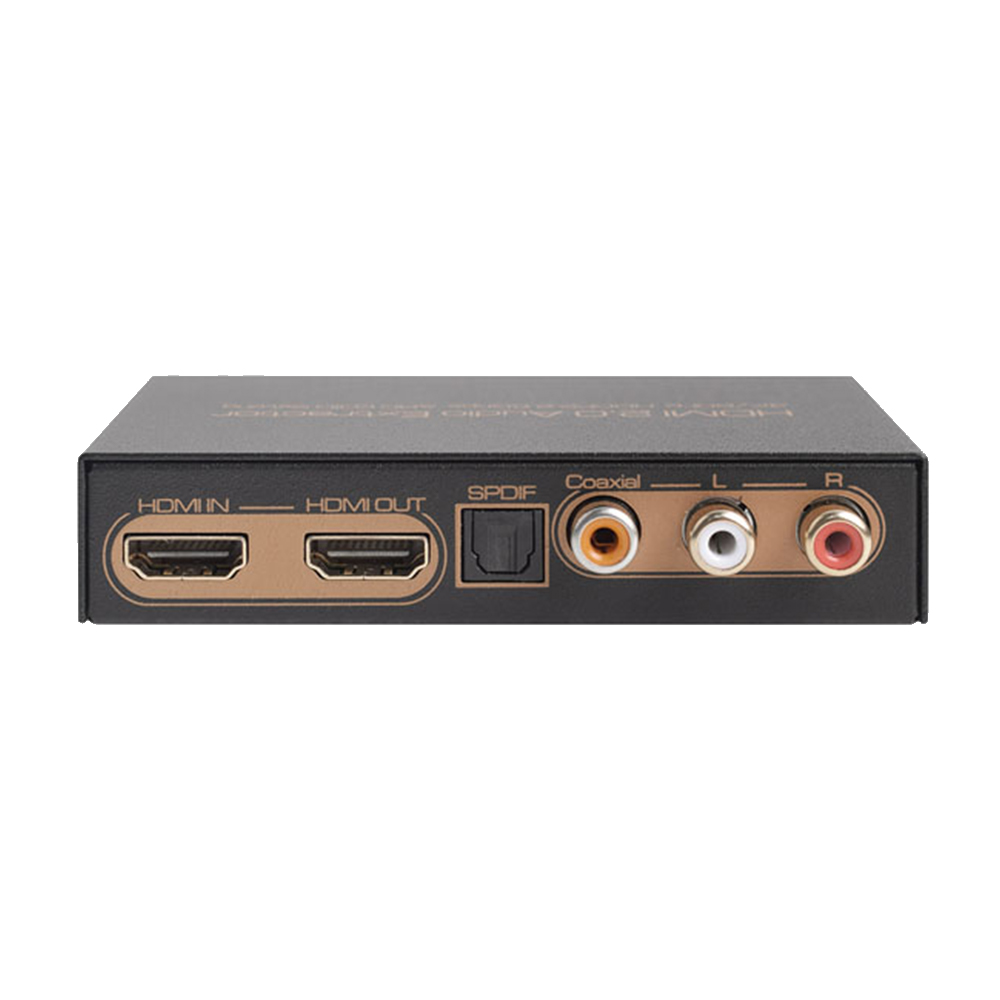

HDMI Audio Extractor (ARC-1320) – Arco HDMI Audio extractor (ARC-1320) by ARCO is the perfect solution when you need to extract the Audio out of the HDMI cable. It can connect one HD Source to one HD Display and support one Tos-link digital audio out + one Coaxial Audio Out + one LR Analog Audio out. This will come very handy in a situation where you only have Analog inputs or when trying to extract audio from new Apple TV devices. Features: Single HDMI input converted to 1 HDMI out + One Tos-link Audio + One Coaxial Audio + One L/R Audio Out Supports 4K*2K @60Hz resolution and HDR Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4 ARC, TV audio will return and out by the Optical Port; SPDIF digital audio supported formats: Dolby digital (AC3), DTS and LPCM 2.0 LED indication: when source or sink is working, LED related will go bright. Specifications: HDMI resolution: 4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Max bandwidth: 600MHz Max baud rate: 18Gbps Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL) Input/Output DDC signal: 5Volts p-p (TTL) Input cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable Output cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable Max working current: 700mA Power adapter format..Input: AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A Operating Temperature range: -0 to +40°C Storage Temperature range: -20 to +60°C Operating Humidity range: 5 to 85%RH (No Condensation) Storage Humidity range: 5 to 95%RH (No Condensation)
