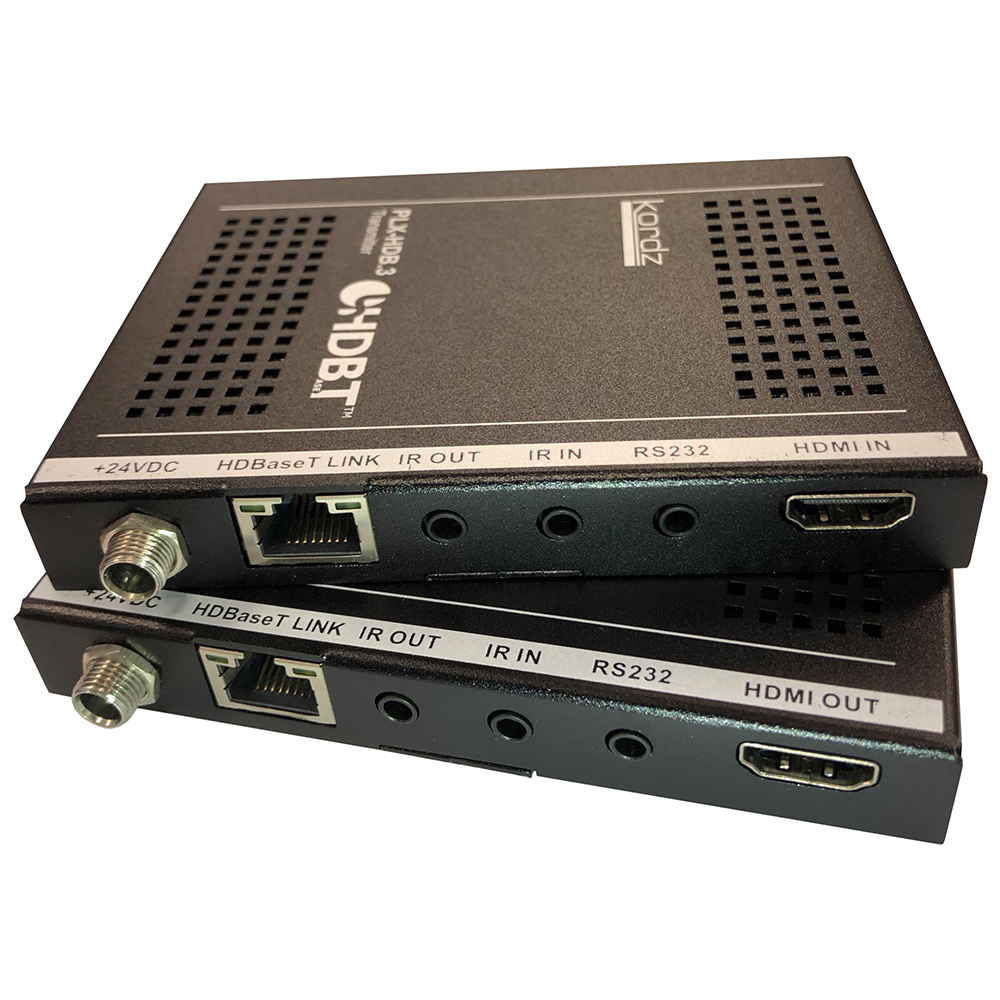

HDMI HDBaseT Lite Extender with IR (18Gbps) ( PLX-HDB.3 ) – Kordz The PLX-HDB.3 HDMI HDBaseT Lite Extender is an ultra-thin HDMI 2.0 Extender with the ability to extend 1080p/4K HDMI signals over CAT6/CAT6a cable up to 70m(1080p) and 40m(4K60 4:4:4), power (PoC) can be powered at either end, and enables IR and RS232 pass-through to control source or display devices remotely. It adopts a visually lossless video compression technology (VLC) to provide HD lossless transmission of HDR and 4K 2160p/60 4:4:4 over CAT6/CAT6a cable. Mounting brackets are included. IR and RS-232 cables are available separately. TX and RX are 16mm thin with all connectors on one side Ideal for mounting in tight spaces Supports CATx UTP/FTP/STP cable 4K60UHD 4:4:4 (18Gbps) to 40m 1080p/60 to 70m Supports HDMI 2.0 4K60UHD 8-bit color depth 4:4:4 Supports HDMI 1.4 4K24UHD HDR 10 colour depth 4:4:4 TECHNICAL SPECIFICATIONS Power Consumption – 14W (max) Operating Temperature – 0~+40ºC Storage Temperature – -10~+50ºC Relative Humidity – 0%~90% External Power Supply – Input: 100VAC~240VAC, 50/60Hz | Output: 24VDC2.5A Dimensions – 115mm x 16mm x 84mm Net Weight (g) – Transmitter : 150g | Receiver: 153g APPLICATIONS Long length AV connectivity up to 40m 4K60UHD / 70m 1080p Commercial and residential applications UHD video and professional graphics
HDMI HDBaseT Lite Extender with IR (18Gbps) (PLX-HDB.3) – Kordz
The PLX-HDB.3 is an ultra-thin HDMI 2.0 Extender with the ability to extend 1080p/4K HDMI signals over CAT6/CAT6a cable up to 70m(1080p) and 40m(4K60 4:4:4), power (PoC) can be powered at either end, and enables IR and RS232 pass-through to control source or display devices remotely.
