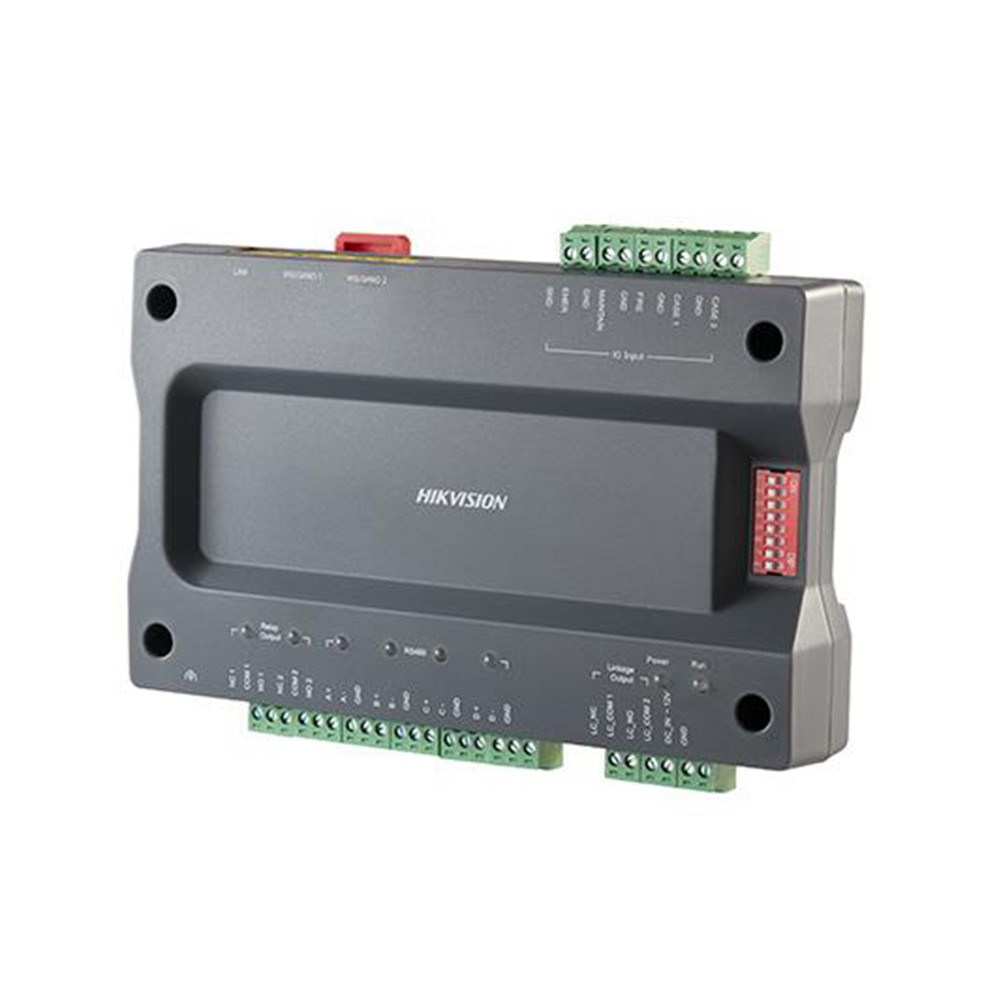

Hikvision DS-K2210

Hikvision DS-K2210 IP Master Lift / Elevator Controller – DIN RAIL – Supports IP, RS-485 & Wiegand Connectivity Features:- Model: DS-K2210 Master Elevator Controller Processor: 32 bit Communication: TCP/IP; RS-485 and Wiegand Normal Card/Event: 20,000 Cards and 50,000 Events Card Reader: Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers Input Interface: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button Output Interface: 5 Relay Outputs RTC: Support Power Supply: 12VDC ± 15% Working Temperature: -40°F to 158°F Working Humidity: 0% to 90% (No Condensation) Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm Installation Type: Guide Rail Installation Connectable with up to 3 groups of distributed elevator controllers (DS-K2M0016A); Each group is connectable with up to 8 distributed elevator controllers (DS-K2M0016A) Supports 3 types of relays: Button, Call Elevator and Auto Button Up to 128 floors’ permissions can be controlled Supports adding 20,000 normal cards and saving 50,000 events Supports uploading events, saving offline events Save the data when powering off Get the floor No. through permission management to control the corresponding relays Supports up to 256 schedule templates. Each schedule template supports up to 1-week plan and 4-holiday groups Supports 5 input terminals and 5 output terminals Event input and output Multiple authentication modes: Card, Fingerprint, Card and Fingerprint, Card and Password, Employee ID and Password, Super Password and Duress Code. Remote control via the web client and the iVMS-4200 client software Supports NTP time synchronization, manual time synchronization, and auto time synchronization. Watchdog and Tamper-proof function
