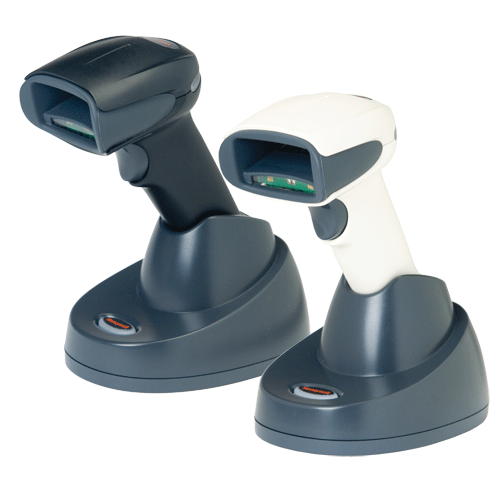

Honeywell Xenon 1902 Cordless Area Imager Scanner

Honeywell Xenon 1902 Main Features:

• High Performance Cordless Hand Held Scanner

• Powered by Adaptus® Imaging technology

• Bluetooth® Wireless Connectivity up to 10m

• Long lasting Li-Ion Battery

• Custom sensor optimized for bar code scanning improves scanning aggressiveness

• Solid State Heavy Duty Construction, No moving parts!

• Area Imaging Technology

• Bright Sharp Green Aiming Line

• Fast Decoding Rate

• Omni Directional Reading

• Optical and Audible Read Confirmation

• Exceptional Read Performance

• Reads Degraded and damaged bar-codes

• Powerful, Flexible Architecture

• Fully Programmable

  ---

  Description

  IT1902BGKIT-U	IT1902 SR Focus with Communications/Charge Cradle and USB Cable Black
  IT1902WHHDKIT-U	IT1902 HD Focus white disinfectant-ready housings with Communications/Charge Cradle and USB Cable

  Order Code

  Description

  Base	IT19CBASE	Charge/Communication base for IT1902
  	IT19CFBASE	Charge/Communication base for IT1902 with FIPS encryption
  Hands free Stand	HFSTAND-19	Hands free Ratchet Stand for IT1900
  Power Supply	AD-MS5VR10N	Optional Power Supply
  OCR Upgrade	IT19OCRLIC	OCR Upgrade Licence



  Reading distance	Narrow width	Depth of Field HD	Depth of Field SR
  	5 mil Code 39	8 – 76 mm	30 – 89 mm
  	13 mil UPC	15 – 124 mm	13 – 323 mm
  	20 mil Code 39	15 – 173 mm	15 – 411 mm
  	6.7 mil PDF417	0 – 86 mm	18 – 140 mm
  	10 mil Data Matrix	0 – 84 mm	18 – 140 mm
  	20 mil QR	0 -140 mm	0 – 262 mm
  Resolution		HD Focus	SR Focus
  	Resolution 1D Code 39	3 mil	5 mil
  	Resolution 2D Data Matrix	5 mil	6.7 mil
  Scan Pattern	Area Image 838 x 640
  Motion Tolerance	Up to 610 cm/s for 13 mil UPC at optimal focus
  Scan Angle		HD Focus	SR Focus
  	Horizontal	41.4°	42.4°
  	Vertical	32.2°	33°
  Pitch, Skew	45°, 65°
  Symbol Contrast	20% Minimum reflectance difference
  Ambient Light	0 to 100,000 Lux (full Sunlight)
  Mechanical Shock	Operational after 50 Drops from 1.0m to concrete
  Environmental Sealing	IP41
  Symbologies support	Linear	Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, RSS.
  	2 Dimensional	PDF417, MicroPDF417, Maxicode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49 & EAN-UCC Composite
  	Postal	Australian 4-state, Postnet, Planet Code, British Post, Canadian Post, Japanese Code, KIX
  	OCR Fonts (Optional)	OCR-A, OCR-B
  Host Interfaces	PS2 Keyboard Wedge
  	RS-232 (May require external power supply)
  	USB
  	IBM 46xx (RS-485)
  Radio	2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1 Class 2
  Range	10m line of sight
  Data Rate	3 Mbits/s
  Transmission rate	2.1 Mbits/s
  Battery	1800 mAh Li-ion
  Number of scans	Up to 50,000 scans per charge
  Expected Hours of Operation	14 Hours
  Expected Charge Time	4.5 Hours
  Operating Power	Charging: 5W (1 A @ 5 VDC)
  Standby Power	0.5W (100mA @ 5 VDC)
  Operating Temprature	Scanner 0° ~ 50°C Base: Charging 5° ~ 40°C, non Charging 0° ~ 50°C
  Relative Humidity	0 ~ 95% non condensing
  Warranty	3 Year Factory Warranty (not on cable, conditions apply)
  Dimensions L x H x W	Scanner: 10.4 x 16.0 x 7.1 cm Base: 13.2 x 8.1 x 10.2 cm
  Weight	Scanner: 214 g Base: 179 g
  Operation Mode	Manual, Presentation Mode or Auto Trigger.
