IR Repeater Kit (ARC-1204A ) – Arco Features Six emitter output connections. Convenient IR confirmation LED. Status power receptacle with LED indicator. Power receptacle with LED indicator. Three conductor 1/8” receptacle for interfacing with many brands of freestanding IR receivers. Specifications Connecting Block Six emitter output connections Convenient IR confirmation LED Status power receptacle with LED indicator 3 conductor 1/8′′ receptacle for interfacing with many brands of free standing IR receivers Compact size for mounting near audio equipment 82 (W) x 60 (H) x 27 (D) mm 110 g IR Target CFL friendly – allows installation in areas with compact fluorescent lighting. Blue IR confirmation LED Wide band IR 3 m cable with 3.5 mm stereo mini plug Receive Frequency Range: 34 kHz ~ 60 kHz Transmit Frequencies: 38 kHz ~ 56 kHz Range: 12 meters @ 38 kHz, 7.6 meters @ 56kHz Power: 12V DC 30mA max. 45 (L) x 14 (W) x 13 (H) mm Cord Length: 3 meters Connector Type: 3.5mm TRS mini plug IR Emitter Round shape, with elegant & compact size Transparent housing 10ft cable length 3.5mm standard mono plug With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface 12 V 200 mA power supply
IR Repeater Kit (ARC-1204A) – Arco

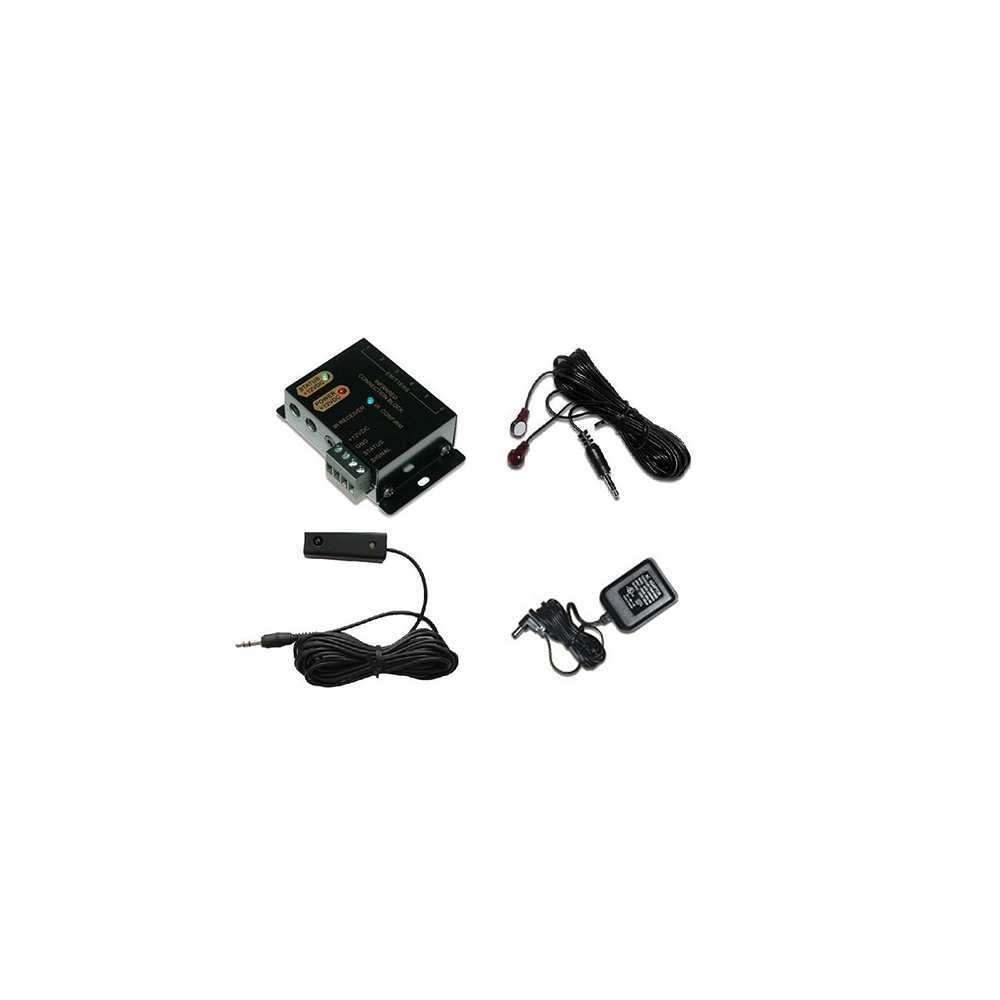

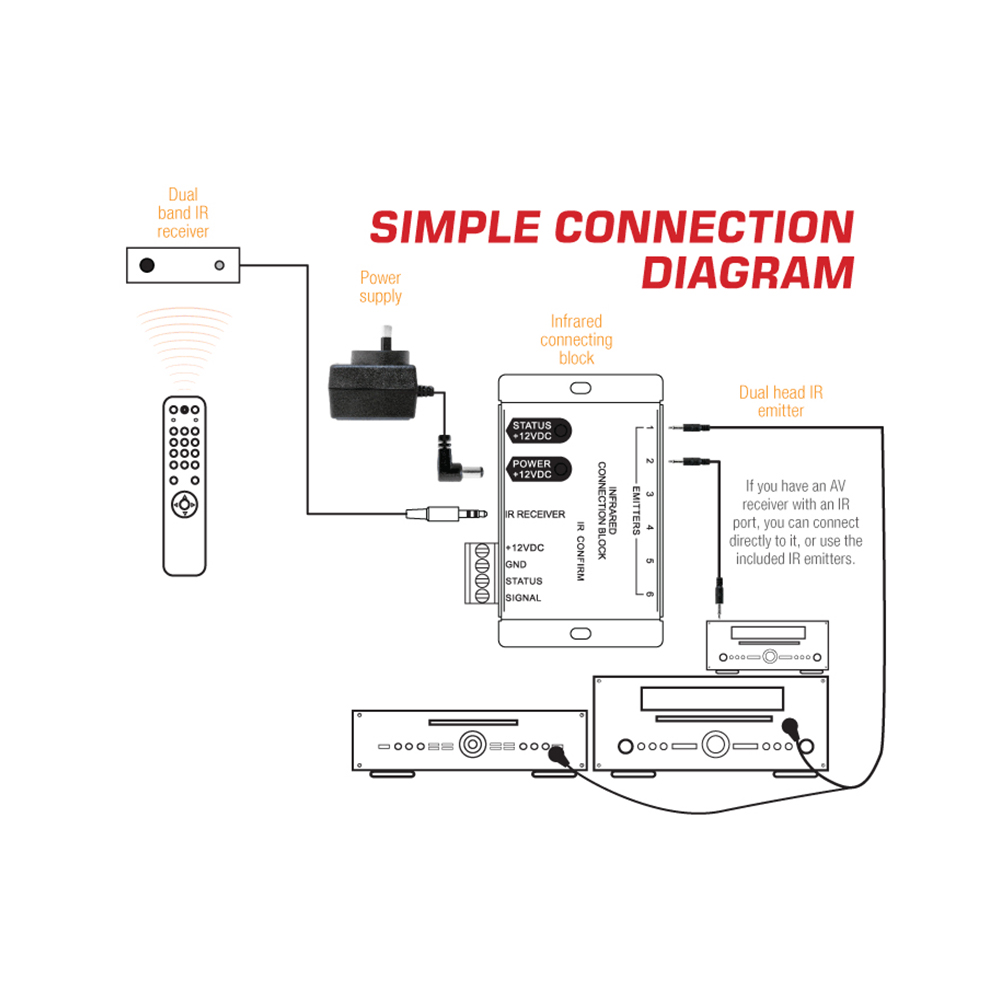

IR REPEATER KIT Arco ARC-1204A takes Infrared (IR) light coming from your remote controller and converts it to an electrical signal that can be easily distributed over electrical wiring to one or more IR remote controllable components.
