Microtech Designs EL00C-RAD-KIT

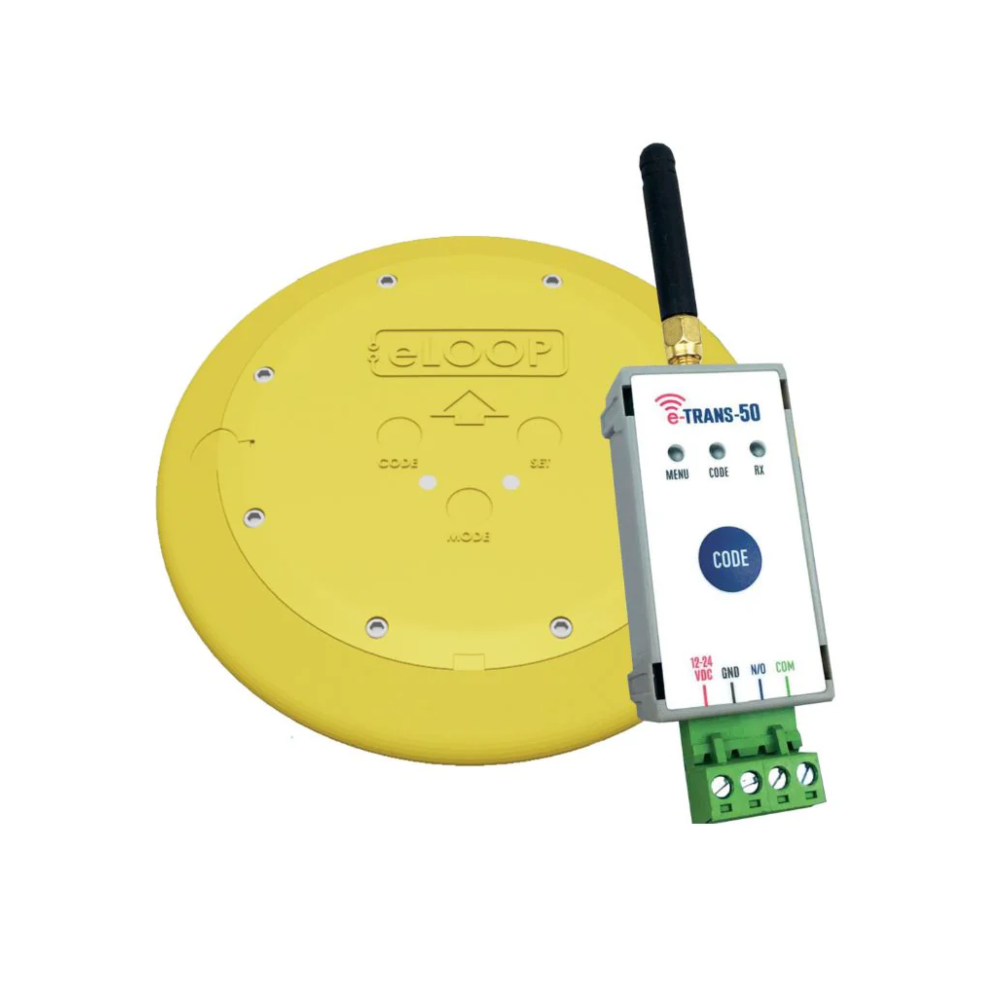

Microtech Designs eLoop EL00C-RAD-KIT Commercial Wireless Vehicle Detection Kit – Includes 1 * EL00C-RAD eLoop Commercial (Presence Mode) + 1 * e-Trans 50 Transceiver + 2 * Dyna Bolts – Presence Mode – Battery Operated – Up to 50m Range The Microtech Designs Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby Microtech transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle. Microtech Radar® sensors can detect vehicles that are stopped above the e-loop. The added radar utilizes two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. If the confirmation is missed, multiple attempts will be made to ensure safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode. The e-Loop Commercial offers unparalleled durability and reliability, making it the go-to choice for demanding environments where uninterrupted operations are crucial. Its rugged construction ensures resilience against harsh conditions, while its high-visibility design enhances safety. With consistent detections, businesses can minimize downtime, maximize productivity, and maintain seamless operations. Whether it’s in warehouses, truck yards, or agricultural properties, the e-Loop Commercial delivers unmatched performance, keeping businesses running smoothly around the clock. Key Features :-   eLoop Commercial with Radar Dual sensor technology – Magnetic field and Radar detection Compact design 3-Axis magnetometer for vehicle detection Designed for above ground mounting Lower power consumption IP68 weatherproof rated Quick and easy installation Compact profile – only 26mm high x 220mm diameter 10600 mA battery giving up to 10 years battery life High security 128 bit encryption Reliable radio communications with Transceiver – wireless range 50 meters Made of high impact plastic (10 ton static load limit) Note* Gate or door controller must have a dedicated open input and auto-close function enabled e-Trans 200 The e-Trans 200 is the transceiver which wirelessly communicates with the eLoop. e-Trans unit gets wired to the gate motor. Supports 200 e-TX Remotes & 4 e-Loops Wiring Info: 12mA 10~36V DC or 10~26 AC Sequence mode capability RS-485 capability 2 Channels
