This integrated amplifier with built-in music source generates up to 240W. In no time at all you can create 6 zones that operate independently (one source at a time). They each have their own volume level and selective call option. • Mixing amplifier with up to 240W of power and built-in FM radio and Bluetooth. • Possibility of setting 6 different volume zones. • Optional selective microphone available (MIC-216) Specifications Frequency range: 50 Hz – 16 kHz Dimensions: 88 x 484 x 353 mm – 2RS Weight/piece: 7,2 kg AUX input: 2 (RCA) Output capacity RMS 8Ω: 240 W Power supply: 240V AC / 24V DC Tone control: yes (per input) Direct output: 4-16 Ω / 70V / 100V MIC input: 4 (combo XLR/Jack) + 2 (selective paging RJ45) Chime function: Yes Priority levels: 5 EMC input (externally injected signal) ALARM trigger (built-in) TEL input / REMOTE MIC (MIC-216) CHIME MIC1 (prior to MIC2-4/LINE1-2) Power consumption: 360 W Priority input: 5 entrée EMC (signal injecté) déclanchement ALARME (intégré) entrée TEL / REMOTE MIC (MIC-216) CHIME (sonnerie) MIC1 (prioritaire sur MIC2-4/LINE1-2) Output capacity 100V: 240 W Built-in source: USB/SD – FM tuner – Bluetooth Line-out: yes The zones: 6

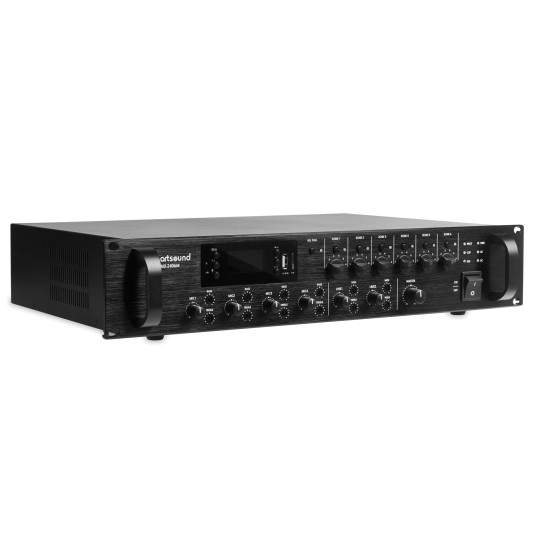

Mixer amplifier 6 zones, 100V, 3U, 240W (MX-2406M) – ArtSound
This integrated amplifier with built-in music source generates up to 240W. In no time at all you can create 6 zones that operate independently (one source at a time). They each have their own volume level and selective call option. • Mixing amplifier with up to 240W of power and built-in FM radio and Bluetooth. • Possibility of setting 6 different volume zones. • Optional selective microphone available (MIC-216)
