Multizone Keypad-Multiline Display Keypad (MDK-C6) – Russound

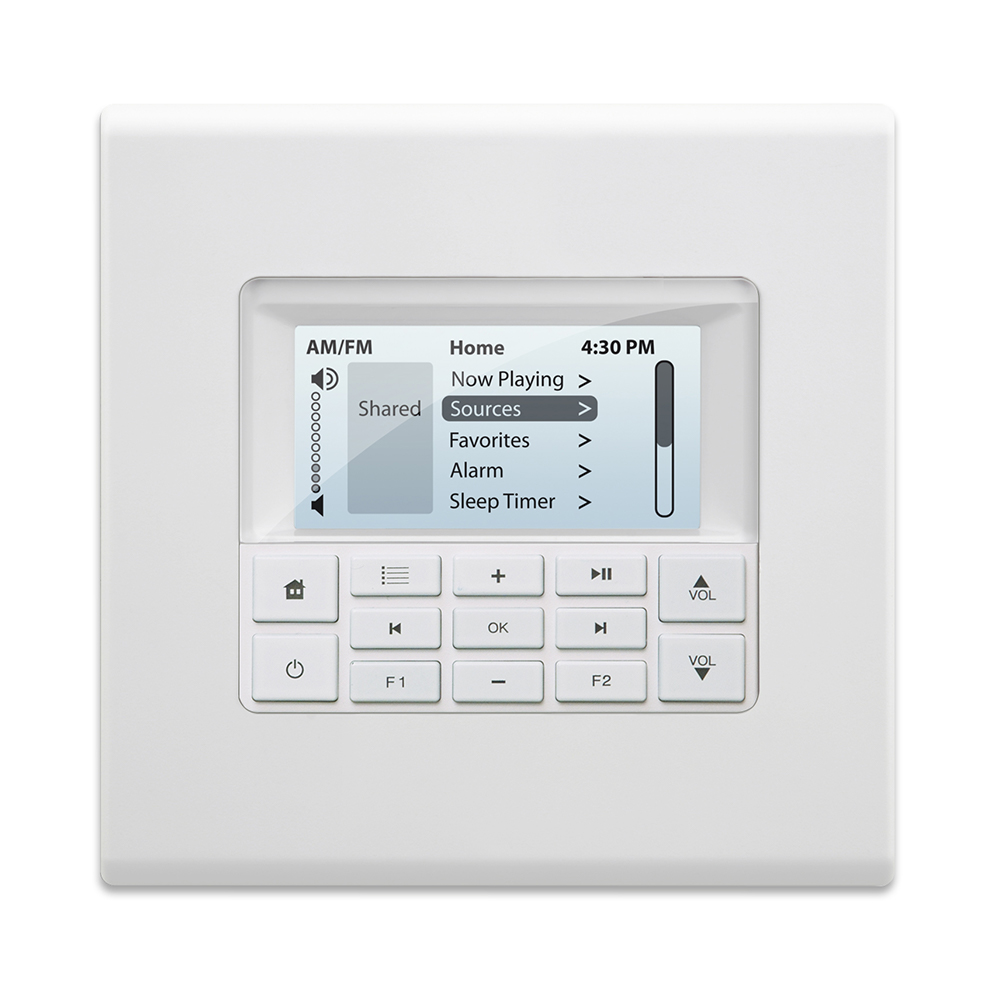

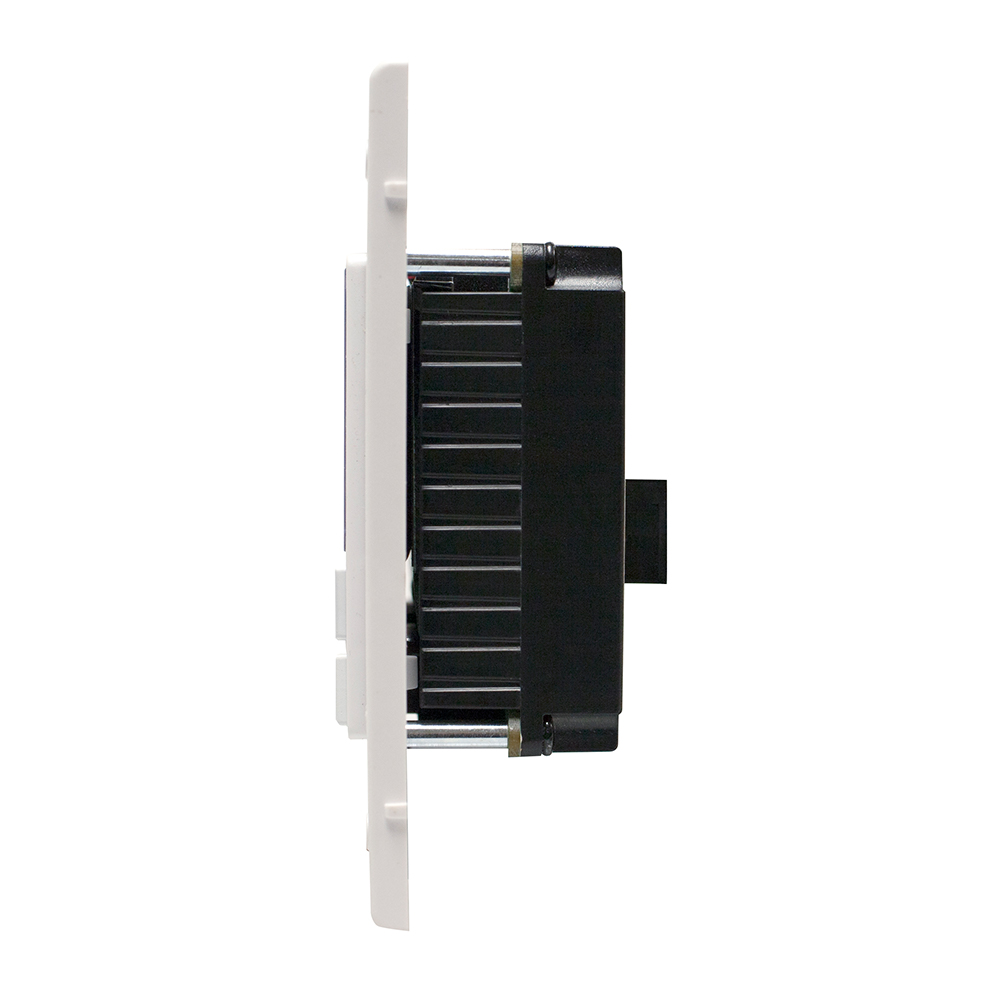

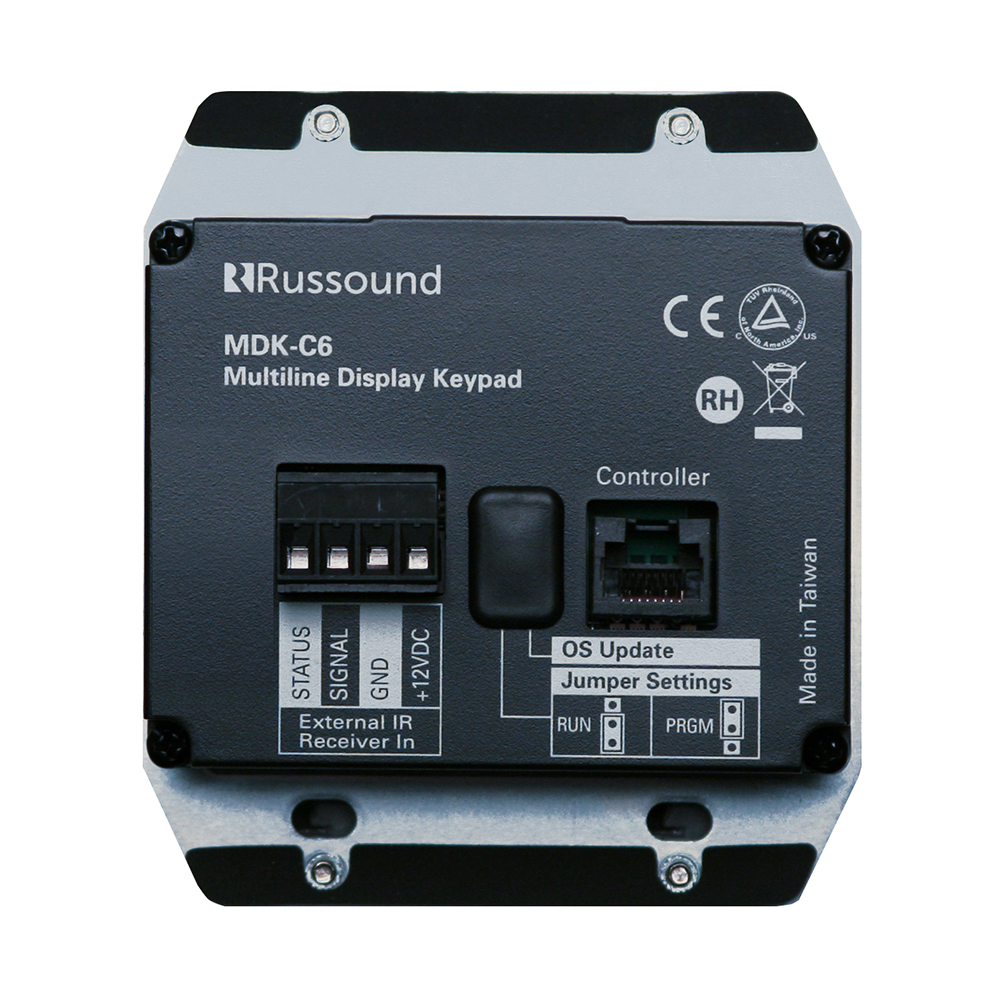

Multizone Keypad-Multiline Display Keypad ( MDK-C6 ) – Russound The MDK-C6 Multizone Keypad is a wall-mounted, standard fit, double-gang keypad for all MCA-Series controllers. The Multizone Keypad grayscale LCD screen displays real-time information including playlist, channel, artist, song title, genre and more when used with compatible Russound sources. Responsive hard buttons offer access to virtually every system feature and source control function. The buttons and screen brightness are adjustable and can be dimmed at the owner’s discretion. Features High-resolution Multiline display Menu-driven interface All ON/OFF Function (Turn All Zones ON or OFF) Built in Clock Party Mode IR Defeat Option DND Function Snooze Feature Alarm Clock IR receiver with auxiliary input (plasma proof option) Fits in a standard 2-gang box Flush-Mount mounting option available via Wall-Smart Available in five colors Specifications Shipping Dimensions: 7.8″ (W) x 3.3″ (H) x 7.3″ (D), (19.7 x 8.3 x 18.4 cm) Shipping Weight: 1.0 lbs (0.5 kg) CAT-5e Connection: RJ-45 (T568A standard) Display: 70 mm (W) x 35 mm (H), High resolution LCD Power Requirement(s): 275mA @ 12VDC MAX Wall Surface Dimensions: 4.5″ (W) x 4.5″ (H), (11.43 cm x 11.43 cm)
