OneTop DB1260-DRET-PTL

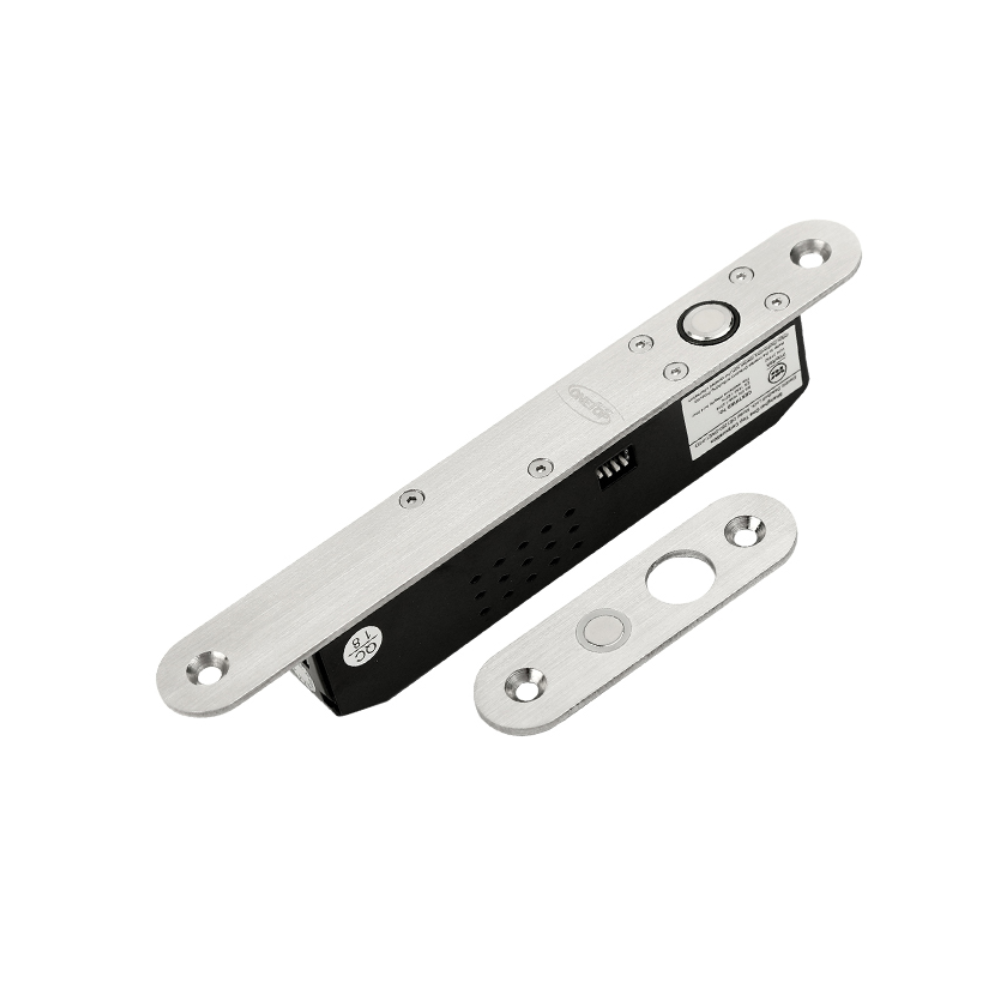

OneTop DB1260-DRET-PTL Slimline Electronic Drop Bolt Lock – 12VDC / 24VDC – Fail Safe – Fire-Rated – Supports Monitoring (Door Status Sensor) – 800Kg Holding Force Key Features :- Certifications – CE, ROHS, Intertek, BS EN1634-1: 2014 Fire rated 4 hours Dimensions – 210L x 25W x 3H (mm) – Faceplate only. Product overall depth 35mm Strike Plate Dimensions – 91.8L x 25W x 35H (mm) – Faceplate only. Depth 7mm Bolt Dimension – 12.7mm Diameter x 14.5 Depth (mm) Lock Operating Voltage – 12-24VDC +/- 10% Lock Operating Current – 12VDC – Rush: 1.15A; Hold 0.25A. 24VDC – Rush: 0.62A; Hold 0.14A Lock Holding Force – Up to 800Kg Remote Release – External Remote to release the locked door Output Signals – Door Status Output (DSS) COM/NO/NC. Door closed or open status output LED Indicator – see specification sheet Audible Tone – see specification sheet Weight – 0.6Kg Bolt Extend Delay – Time delay setting of 0/3/6/10 seconds Surface Finish – Brushed Stainless Steel Faceplate OneTop Product-Link
