OneTop EM3500 DSS

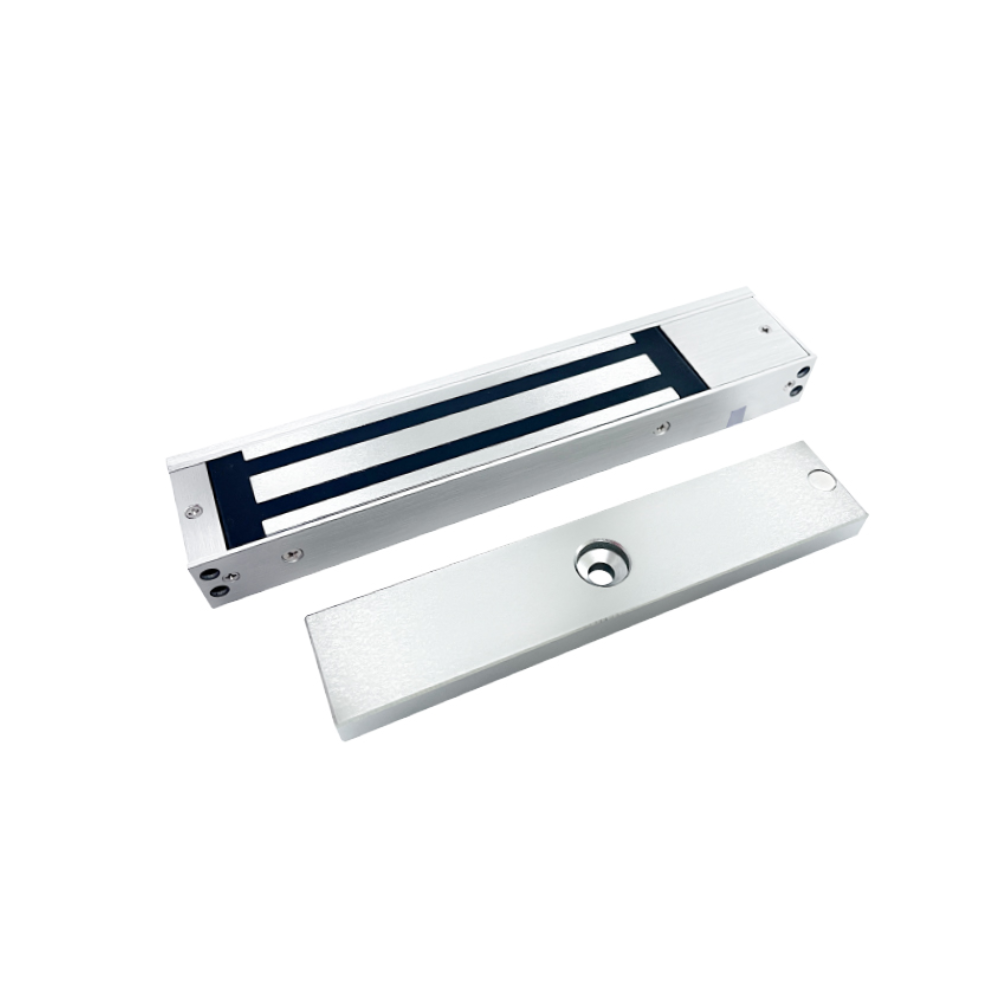

OneTop EM3500 DSS Single Door Electromagnetic Lock – 12VDC/24VDC Powered – 280KGs Pull Force – Supports Monitoring (Lock Status Sensor & Door Status Sensor) – Anti-corrosion Plating Key Features :- Certifications – BS465: Tested under British Standard for 4 hours fire resistance Fail Safe – Power to lock Lock Body Dimension – EM3500 DSS – 238L x 48W x 25H (mm) Armature Plate Dimension – EM3500 DSS – 185L x 38W x 12H (mm) Lock Operating Voltage – 12/ 24VDC ±10% Lock Operating Current – 530mA /12VDC; 260mA /24VDC Lock Holding Force – Up to 250~280Kg Weight – EM3500 DSS 2.0Kg Output Signals – EM3500 DSS is equipped with LSS & DSS Lock Status Output (LSS) NO/NC/COM, Max 24VDC; Max 2A Door Status Output (DSS) NO/COM, Max 24VDC; Max 0.2A Operating Temp -10°C ~60°C Operating Humidity 0~95% (non-condensing) Light Panel Red/Green/Off indicating the status Insecure/Secure/Power Off the magnetic lock Surface Finish – Anodized Aluminum housing Zinc plated for anti-corrosion OneTop Product-Link
