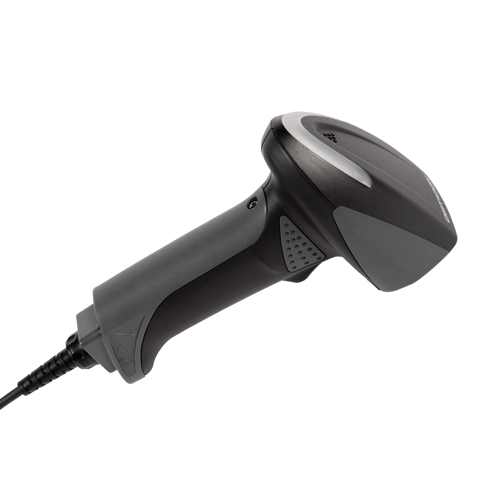

Handheld 2D Imager
Small form factor
Up to 30 frames/sec
The integrated auto trigger mode together with the dedicated stand enables hands-free operation
Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
Available in USB, RS232 and Keyboard Wedge interface
?
Adaptor | AD-OP6VR10P1.7 | 6V Regulated Power Supply |
Light source | Aiming laser diode, illumination LEDs |
Scan Method | CMOS area Sensor, SXGA (1.3 millions pixels), gray scale |
Scan rate | Up to 30 fps, after auto-focus activation (100 ms after triggering) |
Trigger mode | Manual, multiple read, auto trigger, stand detection |
2D image format | Windows Bitmap, JPEG, TGIFF |
2D image output mode | 4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical) |
Min. resolution at PCS 0.9 | 0.127 mm / 5 mil for Code39 / QR code 0.169 mm / 7 mil for DataMatrix |
Depth of field | for Code39 and QR code 15 – 40 mm (res. 0.127 mm / 5 mil) 15 – 280 mm (res. 0.139 mm / 13 mil), For Code39 15 – 100 mm (res. 0.1 mm / 4 mil) 15 – 155 mm (res. 0.127 mm / 5 mil) 15 – 365 mm (res. 0.254 mm / 10 mil) 90 – 1450 mm (res. 1.0 mm / 39 mil) |
Pitch Angle | -45 to 0°, 0 to +45° |
Roll (Tilt) Angle | 360° |
Skew (Yaw) Angle | -60 to -0°, +0 to +60° |
Field of view | Horizontal 40°, Vertical 32° |
Reading Indicators | Visual: 1 LED (red/green/orange) Non-visual: Buzzer |
Interface | RS232 – DB9 PTF connector with external power supply Keyboard Wedge – MiniDIN6 F/M connector USB – Ver. 1.1, HID/VCP, USB-A connector |
Symbologies supported | 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal Code: Chinese Post, Korean Postal Authority code 2D Code: Aztec Code, Aztec Runes, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
Input voltage | 5V ± 10% (USB), 6V ± 10% (RS232 and Keyboard Wedge) |
Input Current | Max. 150 mA |
Operating Temperature | -20 to 50 °C |
Storage Temperature | -25 to 70 °C |
Operating Humidity | 5 – 90 % (non-condensing) |
Storage Humidity | 5 – 90 % (non-condensing) |
Ambient light immunity | Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
Drop Test | 1.5 m / 5 ft drop onto concrete surface |
Warranty | 2 Year limited Factory Warranty (not on cable) |
Dimensions (W x H x D) | Scanner 72 x 175 x 95 mm |
Weight | 175 g |
Product Compliance | CE, FCC, VCCI, RoHS |
