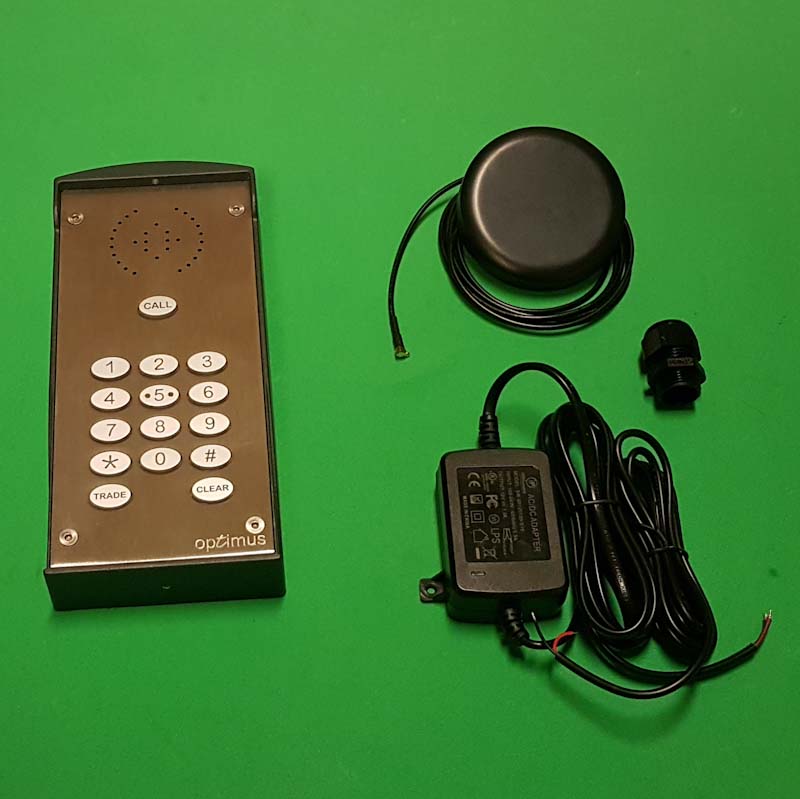

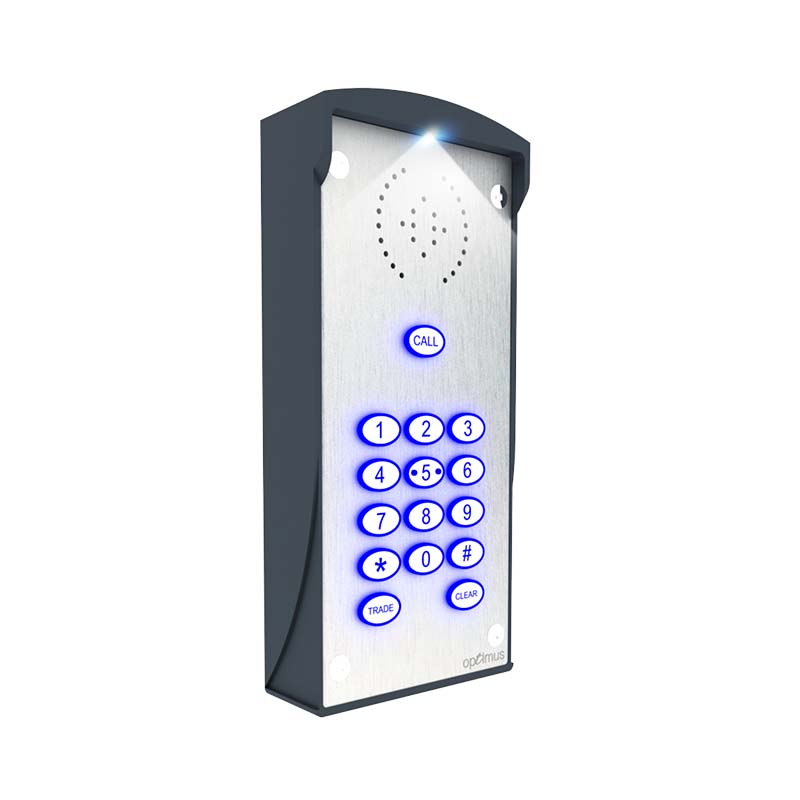

The Optimus E1K 4G LTE Intercom combines advanced technology with user-friendly features to offer a reliable access control solution.
It is powered by a 12 Volt 1 Amp DC PSU, fitted with a 3A fuse, and has a power consumption of 120 mA idle at 12 Volts. The intercom is compatible with standard DTMF generating telephones, including cordless and mobile phones, and can be programmed remotely via an app, SMS, or GSM modem, or locally via USB cable.
The unit includes three relays (1 x 2A, 2 x 200mA) and two auxiliary inputs, with relay activation times adjustable between 1 and 60 seconds. Operating commands such as # pulses RL1, 1# pulses RL1, 2# pulses RL2, 3# latches RL3, and 6# unlatches RL3 offer flexible control options. Additionally, the onboard time clock enables custom profile functions to be activated, enhancing the unit’s versatility.
The intercom can store up to 100 telephone numbers, allowing authorised users to call the unit and activate the relay to open doors or gates. This feature provides a modern and cost-effective alternative to traditional access control systems.
