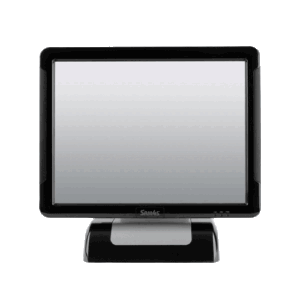

PC POS Touch System
Fan Free Design, no Fan’s at all, not in the housing or on the CPU
Cast Aluminium housing
15″ LCD Display with 5-wire Resistive Touch Screen
Standard with Celeron® M 1.86 GHz CPU or Core 2 Duo 2.16 GHz
80 Gb Hard Disk or larger
1 Gb RAM expandable to 2Gb
Powered Serial ports
Easily wall or Pole mountable with optional bracket
Optional CF Slot
Optional MSR, 2 Line Pole Display or 2nd LCD Display
?
Pole Display | PFPD310B-U | 2 Line 20 Character LCD Display mounted on the rear top of display for the KS series with USB Interface |
PFPD2602B-R | 2 Line 20 Character VFD Pole Display for the KS Series with RS232 Interface with mounting bracket | |
MSR | PFSD400TB12-U | MSR track 1 & 2 for the KS-73xx Series |
PFSD400TB3-U | MSR track 1, 2 & 3 for the KS-73xx series | |
PFSD800B12xx-U | MSR track 1 & 2 module which could also house optional RFID and/or Wifi Module | |
2nd LCD Display | 15″ inch 2nd LCD Display for the KS-Series on 300mm Pole | |
15″ inch 2nd LCD Display to mount on back of the Main screen for the KS-Series | ||
15″ inch 2nd LCD Display for the KS-Series with mounting bracket to the base of main unit. | ||
12″ inch 2nd LCD Display for the KS-Series | ||
Wall mount Bracket | PFWB6000VB | Wall mount bracket with VESA mount |
UPS Battery | PFRB2000 | Rechargeable UPS Battery |
CPU | Celeron® M 1.86 GHz CPU or Core 2 Duo® 2.16 GHz |
Memory | 1 Gb expandable to 2 Gb |
Storage | Standard with 3.5 inch 80 Gb Hard Disk Drive or optional CF card Slot |
LCD | 15″ Active Matrix LCD Display |
Brightness | 250 nits |
Resolution | 1024 x 768 |
Touch Panel | 5-wire Resistive |
Tilt adjustment | 15º ~ 70º |
Connectivity | 4 DB9 RS-232 Ports with 5V Power Supply Capability |
1 Parallel Port (Optional Proprietary Cable) | |
6 USB 2.0 Ports (4 x on I/O Plate, 2 x in side cover) | |
VGA Port for 2nd Display | |
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) | |
10/100/1000Mb Ethernet Port | |
UPS Port for Optional 2.3Ahr battery in the Base | |
Power on wake up | Through Alarm, LAN or Modem |
Sound | 2W Speaker in the main unit |
Size (W x D x H) | 378mm x 321mm x 362mm |
Weight | 9.7 Kg |
Operating Temperature | 0 ~ 40°C |
Power Supply | 80W-12V, 6.67A External Power supply |
