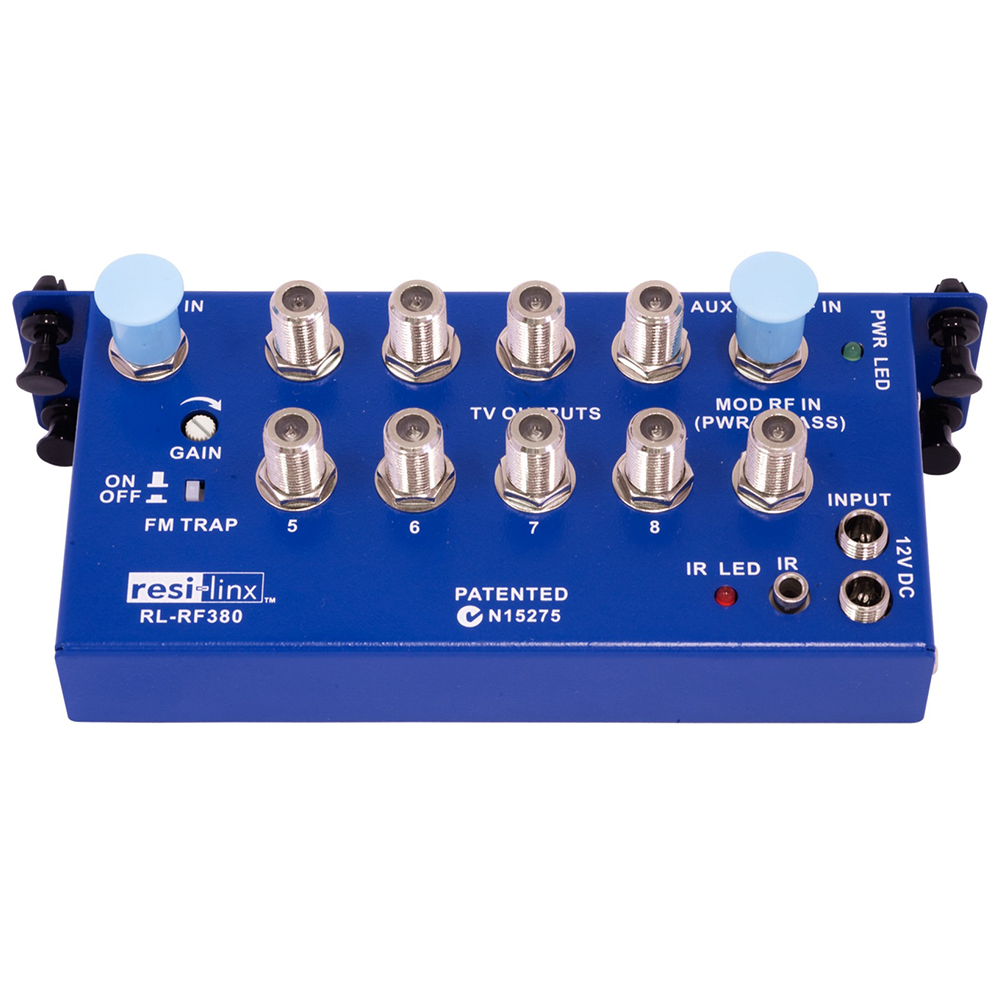

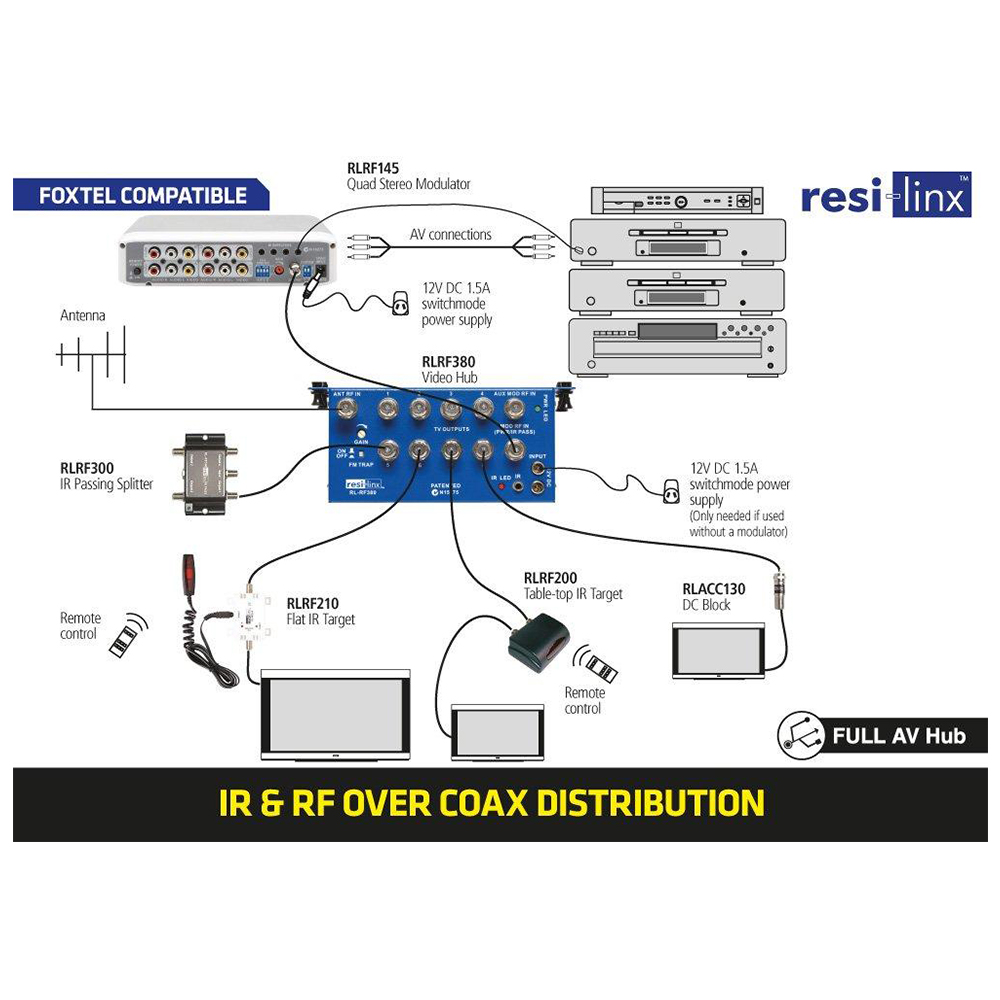

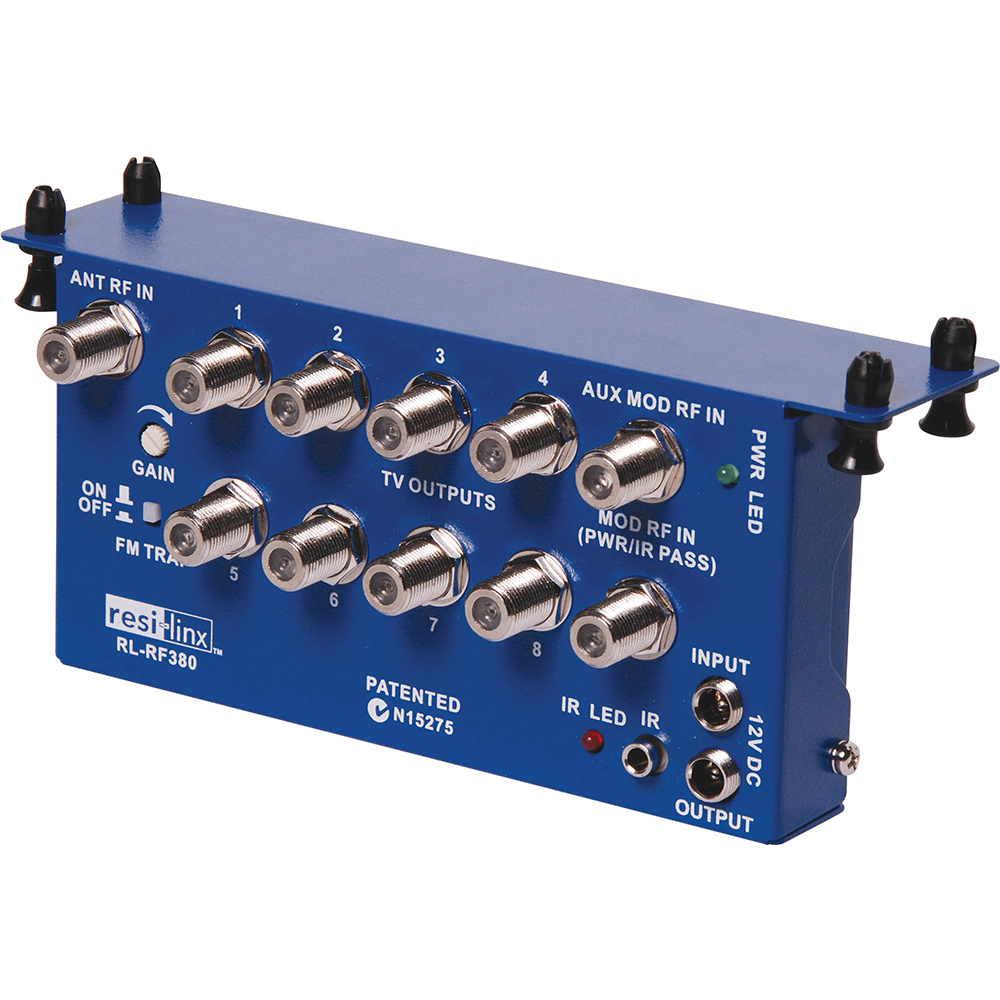

RF Video Distribution / Amplifier Unit with IR control The RL-RF380’s patented design is for whole-house video distribution with IR control. The splitters have reverse path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations. The RL-RF380/CS-VDU38IR must be remotely powered by an IR Modulator when using the IR Control. Features Active, low loss combiner and splitter with 3 inputs, 8 outputs Includes gain control for Free To Air input to eliminate problems due to high/low signal strength. When combined with gain control on modulator, allows complete balancing of signals FM trap On/Off switch to filter 88-108MHz signals from transferrring through to output ports to eliminate FM interference to TV reception Designed for mounting into any Structured Cabling Enclosure Specifications Length: 135mm Width: 69mm Weight: 405g Depth: 22mm Output Connection(s): 8 Input Connection(s): 3 (Modulator / ANT) Power Input: 110-240V AC Power Output: 12V DC – 1.5A Switch Mode Power Output Connection: 1.8m Length with F-2.1mm Jack Power Requirement: 12V DC Power Supply Output Frequency Pass: 30KHz to 850MHz Gain / Loss: ANT +2dB / Modulator +3dB Output Run Distance: 60 metres Isolation (Modulator inputs to ANT): -80dB
RF Video Distribution / Amplifier Unit with IR control (RL-RF380)-resi-linx
The RL-RF380’s patented design is for whole-house video distribution with IR control. The splitters have reverse path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations. The RL-RF380/CS-VDU38IR must be remotely powered by an IR Modulator when using the IR Control. Pricing & ETA on enquiry
