The Sam4s GT-100 Thermal POS Printer is a point-of-sale (POS) printer manufactured by Sam4s, a company known for its range of POS solutions. Here are some key features and information about the GT-100:
1. **Thermal Printing Technology**: The GT-100 utilizes thermal printing technology, which means it uses heat to produce images and text on special thermal paper. This technology eliminates the need for ink or ribbons, resulting in lower maintenance costs.
2. **High-Speed Printing**: It is designed for high-speed printing, making it suitable for busy retail environments where quick transaction processing is essential.
3. **Compact Design**: The printer is compact in size, making it suitable for businesses with limited counter space.
4. **Multiple Connectivity Options**: It typically offers multiple connectivity options such as USB, Ethernet, and RS-232 serial interface, allowing it to be easily integrated into various POS systems.
5. **Compatibility**: The GT-100 is compatible with various operating systems and POS software applications, ensuring seamless integration with existing systems.
6. **Reliability**: Sam4s products are known for their reliability and durability, which is crucial for POS printers that are expected to operate continuously in demanding environments.
7. **Versatility**: The Sam4s GT-100 is capable of printing various types of documents, including receipts, coupons, and labels, making it versatile for different retail applications.
8. **Easy Maintenance**: With its thermal printing technology, the GT-100 requires minimal maintenance compared to traditional impact printers. Additionally, it often features easy paper loading mechanisms for quick and hassle-free paper replacement.
Overall, the Sam4s GT-100 Thermal POS Printer is a reliable, high-speed, and versatile printing solution suitable for a range of retail environments. It offers the efficiency and functionality required to streamline transaction processing and enhance customer service.

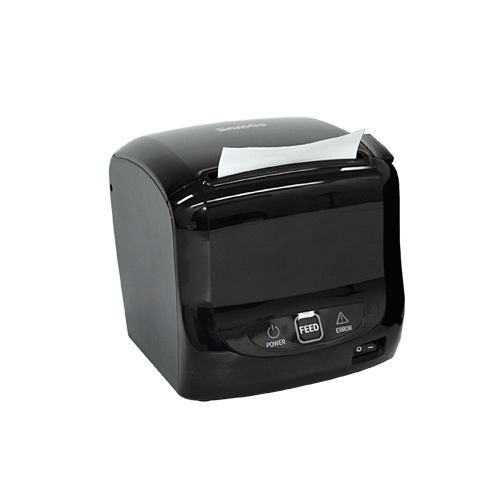

Sam4s GT-100 is the new 3″ Printer. Distinctive in its very small size, the GT-100 is as small or smaller than 2″ Printers. Nevertheless it performs equal to or better than competing 3″ printers. The GT-100 is a signpost model, pointing the direction to which receipt printers will evolve in the future.
- Fast (up to 250 mm/sec) Direct Thermal Printing
- Drop in Paper loading
- Compact design
- Two Colour Printing (with Special Paper)
- Barcode Printing, including QR code
- Compatibility (ESC/POS & STAR)
- NV Memory for Bit map Data Storage
- Auto cutter
- Standard USB plus RS232 and Ethernet
- Flexible paper widths. (80mm & 58mm)
- External Power Supply
- Available in Black or White
ACPonline is Sam4s GT-100 Thermal POS INSTALLATION AND SUPPORT SPECIALIST
| Paper | T8080 | Thermal 80 X 80 Paper Roll |
| T5750 | Thermal 57 X 50 Paper Roll | |
| T5770 | Thermal 57 x 70 Paper Roll | |
| Splash Cover | GT100SPLASH | Splash Cover for GT100 |
| Printing Method | Line Thermal Dot Printing | |
| Dot Pitch | 180 dpi | |
| Printing Speed (Max.) | Mono Printing on 80mm Paper approx. up to 250 mm/Sec (43 Lines/sec) Mono Printing on 57mm Paper approx. up to 150 mm/Sec (36 Lines/sec) Colour Printing approx. up to 100 mm/Sec (24 Lines/sec) | |
| Printing width | 80 mm Paper 72mm 57 mm Paper 48mm (max. 54mm) | |
| Font Size | Font A: 12 x 24 | |
| Font B: 9 x 17 | ||
| Number of Columns | 80 mm Paper: Font A – 42 Columns, Font B – 56 Columns | |
| 58 mm Paper: Font A – 21 Columns, Font B – 28 Columns | ||
| Character Size | Font A: 1.69 x 3.38mm (12 x 24 dots) | |
| Font B: 1.26 x 2.39mm (9 x 17 dots) | ||
| Character Table | Alphanumeric Character (Font A & B) | |
| Bar-code Type | UPC-A/E, EAN-13/8, ITF, Code 39/93/128, Codabar, PDF417 & QR Code | |
| Paper feed method | Friction | |
| Paper Type | Thermal Paper Roll | |
| Paper Width | 80 +/- 0.5mm or 58 +/- 0.5mm | |
| Paper Roll Diameter | Max Ø 83.0mm | |
| Paper Supply Method | Easy Paper Loading, Drop in and Print | |
| Emulation | ESC/POS & Star | |
| Print Buffer | 64Kbytes | |
| NV Memory | 8 Mbytes | |
| Sensors | Paper End & cover open Sensor. | |
| Drawer Ports | 1 ports Controls 2 drawers with special cable. (24V) | |
| Interface | USB + RS232 & Ethernet USB + Parallel (special order) | |
| OS | WEPOS, POSReady 2009, XP Pro, WIN 7, POSReady 7, WIN 8, Industry 8, Linux, Mac & Android | |
| Driver available | Windows, OPOS, JPOS, CUPS, Android SDK | |
| Software Utilities | Firmware/NV Image download | |
| Power Supply (Adapter) | Input: AC100 ~240V Output: DC 24V,2.5A | |
| Operating Environment | 5~45°C, 30~80% Relative Humidity | |
| Storage Environment | -10~50°C, 10~90% Relative Humidity | |
| Weight | 0.9 Kg | |
| External Dimensions (W x D x H) | 131 x 155 x 133 mm | |
| Reliability | Head | 100,000,000 Pulses, 150Km |
| Mechanism | 70,000,000 Lines | |
| Auto Cutter | 1,500,000 cuts | |
| EMC/Safety Standards | C-Tick, FCC Class A, TUV-GS, CE | |
