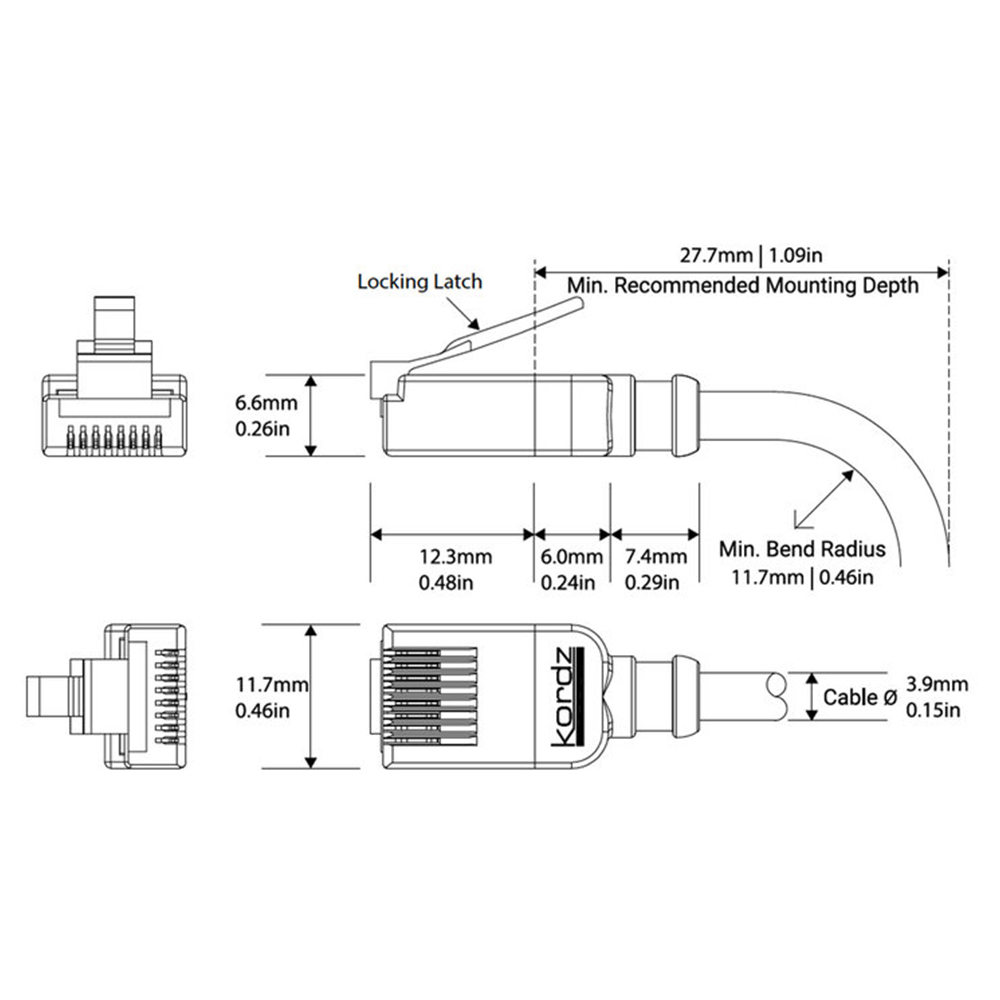

Slim Network Patch Cable, Green – Kordz The Kordz Slim Network Patch cable is a highly flexible, slim-profile, stranded 28AWG copper patch cord ideal for the professional and custom installer/integrator. With a diameter of only 3.9mm, the PRO series network patch cord provides over 30% reduction in diameter when compared with conventional 24AWG patch cords. Combined with stranded 28AWG oxygen-free copper conductors and solid extrusion for maximum twist protection, the cable is both highly flexible and ensures signal integrity in general applications. The Kordz PRO CAT6 Network Patch Cord also brings to the market a new compact, custom-designed RJ45 connector featuring an almost unbreakable locking latch. Using better materials, the RJ45 locking latch is rated to 2,000+ 180ºdegree bends. This removes the need for cable replacements due to latch breakage, saving installers time and cable wastage, and living up to the promise of Connectivity. Assured. Each unit up to and including 15m is tested to meet the ANSI/TIA-568.2-D component requirements, with 20m & 30m lengths meeting channel requirements. Features: -Engineered and constructed to ensure installation success and longevity -Exceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz -UTP 28AWG CAT6 slim-profile network patch cable -UL (CM) fire rating -568B wire connection configuration -Overall diameter of 3.9mmØ -New compact design connector with 2000 bend cycle lock tab -Available in 7 colours – Black, blue, grey, green, yellow, red & white -Available in lengths from 0.15m to 30.0m lengths -Lifetime Warranty TECHNICAL SPECIFICATIONS Application Standards : ANSI/TIA-568.2-D IEC11802 EN50173 Performance Standard : ≤ 15.0m – Category 6 Component Tested > 15.0m – Category 6 Channel Tested Wiring method : T568-B Certified Data Rate : 1 Gbps (Gigabit ethernet) Supported Data Rate : ≥ 1 Gbps (Gigabit ethernet) Certified Bandwidth : 1 to 250 MHz Supported Bandwidth : ≥ 250 MHz MECHANICAL Cable Diameter : 28 AWG, 3.9mm/0.15”Ø Maximum Cable Pulling Tension : 80 kgf/cmÇ Cable to Plug Tensile Strength : TBC Cable Bend Radius : 11.7mm | 0.46in Recommended Total Mounting Depth : 27.7mm | 1.09in Mating Cycles (max.) : 1000 cycles Temperature range : UL Temp rating – 75ºC CONSTRUCTION Conductors : Solid 28 AWG Oxygen Free Stranded Copper Conductor Insulation : Polyolefin Shielding : Not Applicable Cable Jacket Material : UL CM-rated PVC Connector Material : Nylon Contact Type : 3-prong for solid/stranded conductors Strain Relief : Injection-moulded PVC ELECTRICAL CHARATERISTICS Conductor Resistance : 223Ω/km Insulation Resistance : 10MΩ min @100V DC Product SKUs K23045-0015-GN 0.15 Meter K23045-0025-GN 0.25 Meter K23045-0050-GN 0.50 Meter K23045-0075-GN 0.75 Meter K23045-0100-GN 1 Meter K23045-0150-GN 1.5 Meter K23045-0200-GN 2 Meter K23045-0250-GN 2.5 Meter K23045-0300-GN 3 Meter K23045-0400-GN 4 Meter K23045-0500-GN 5 Meter K23045-0750-GN 7.5 Meter K23045-1000-GN 10 Meter K23045-1500-GN 15 Meter K23045-2000-GN 20 Meter K23045-3000-GN 30 Meter Colours Black, Blue, White, Green, Red, Yellow, Grey
