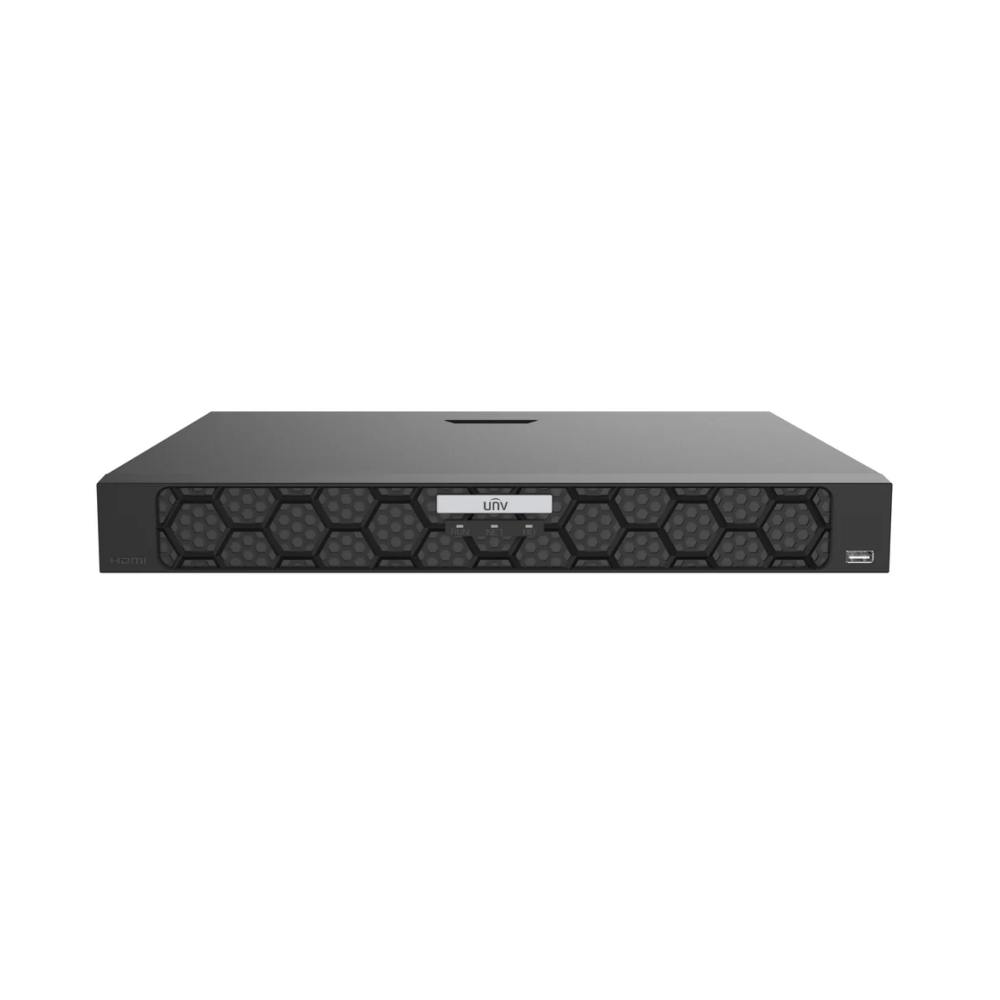

Uniview NVR502-16B-P16-IQ

Uniview NVR502-16B-P16-IQ Prime-series AI 1U 4K 16-Channel 16x PoE Network Video Recorder – NVR – 2* SATA HDD Slots Key Features :- Support Ultra H.265 / H.265 / H.264 video formats 16-channel input Plug & Play with 16 independent PoE network interfaces Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840 x 2160) resolution HDMI and VGA independent outputs provided Up to 16MP resolution recording 2* SATA HDDs, Up to 16TB for each HDD Various fisheye dewarping modes for live view and playback for both web interface and GUI ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade Hardware characteristics :- 1 x VGA port (max. 1080P resolution) 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI 2 x 3.5″ SATA HDD ports (max. 16TB HDD per port) 1 x RS485 port 3 x USB ports (one front, two rear) 8 x PoE ports (10/100Mbps) (Max. 130w PoE output across all PoE ports) 1 x LAN port (10/100/1000Mbps) 8 x Alarm input ports 2 x Alarm output ports 1 x Audio RCA input port 1 x Audio RCA output port
