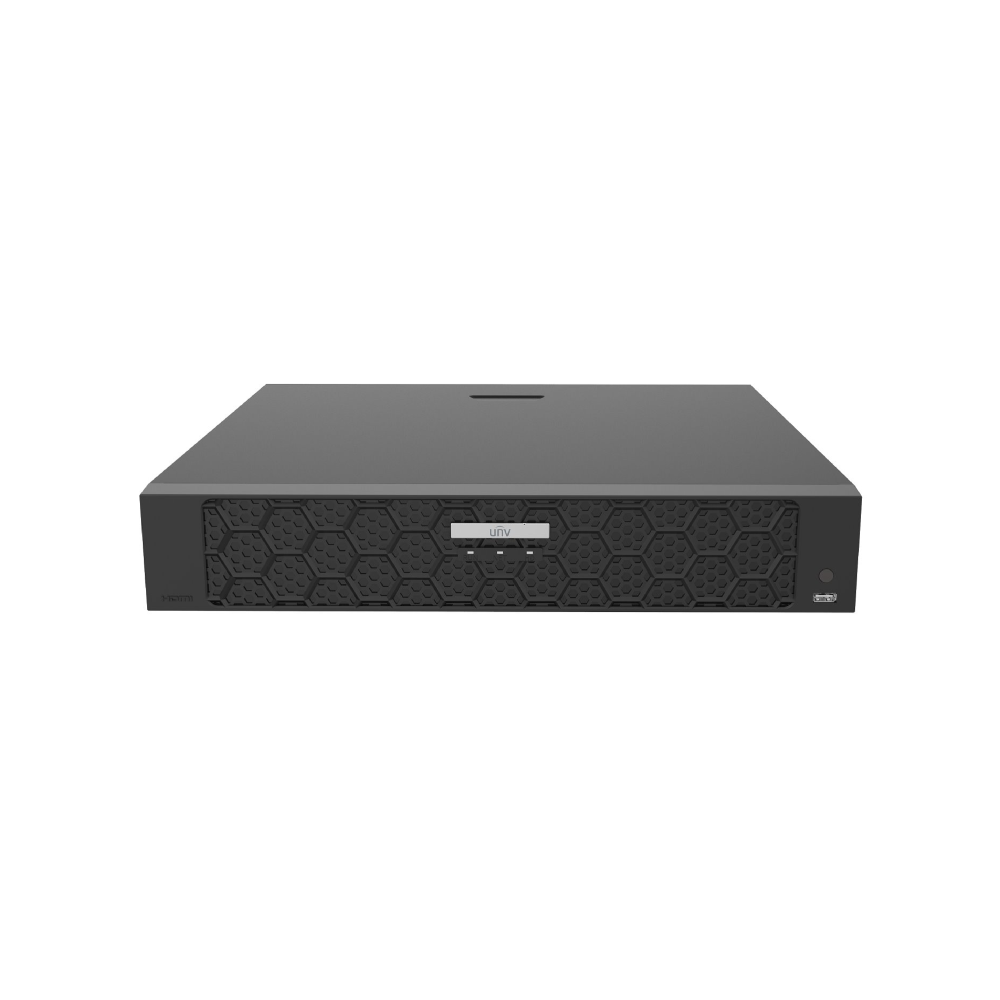

Uniview NVR504-32B-P16

Uniview NVR504-32B-P16 Prime series H265 4K 1.5U Rackmount 32-Channel NVR – Network Video Recorder – with 16x PoE Ports Onboard Key Features :- Support Ultra H.265 / H.265 / H.264 video formats 32-channel IPC support Plug & Play with 16 independent PoE network interfaces Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols Support 1-ch HDMI, 1-ch VGA; HDMI up to 4K (3840 x 2160) resolution HDMI and VGA independent outputs provided Up to 16MP resolution recording 4 SATA HDDs, Up to 16TB for each HDD Various fisheye dewarping modes for live view and playback for both web interface and GUI ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade Hardware characteristics :- 1 x VGA ports (max. 1080P resolution) 1 x HDMI ports (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI1 4 x 3.5″ SATA HDD ports (max. 16TB HDD per port) 1 x RS485 port 2 x USB ports (one front, one rear) 16 x PoE ports (10/100Mbps) (Max. 150w PoE output across all PoE ports) 1 x LAN port (10/100/1000Mbps) 16 x Alarm input ports 4 x Alarm output ports 1 x Audio RCA input port 1 x Audio RCA output port
