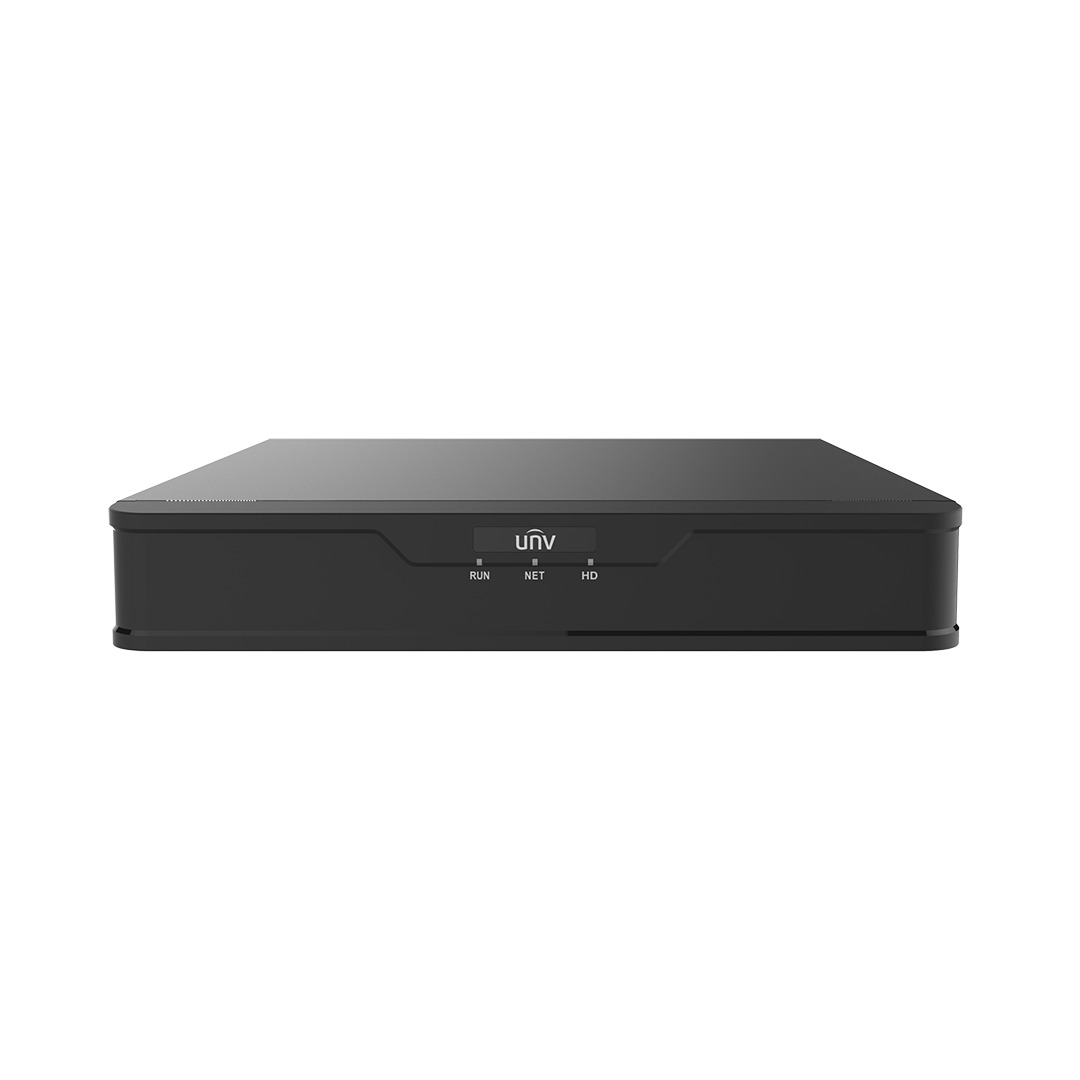

Uniview XVR301-04Q

Uniview XVR301-04Q

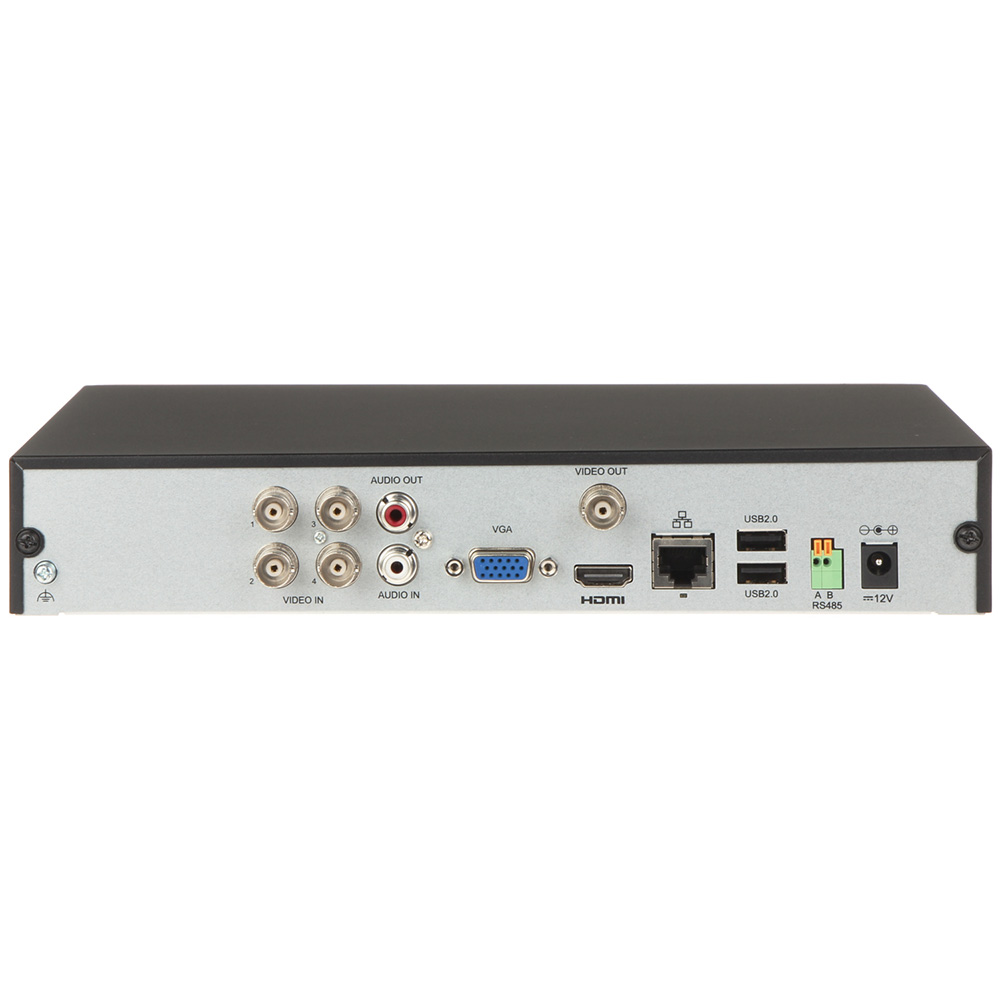

Compact 1U H265 4K 4-Channel Pentabrid (HDTVI / HDCVI / AHD / CVBS / IP) DVR – 4x BNC Inputs + 2x IPC Support Features :- Support H.265 / H.264 video formats Support audio over coaxial cable Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 4-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coaxial cable Note – This can be used as an encoder to turn analogue (and HD analogue) cameras into IPC on an Uniview NVR Hardware characteristics :- 1 x VGA port (max. 1080P resolution) 1 x HDMI port (max. 1080 resolution) – Same display output as VGA 1 x CVBS output 1 x 3.5″ SATA HDD port (max. 6TB HDD per port) 2 x USB ports (two rear) 1 x RS-485 port 4 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support 1 x LAN port (10/100Mbps) No Alarm input ports No Alarm output ports 1 x Audio RCA input port 1 x Audio RCA output port
