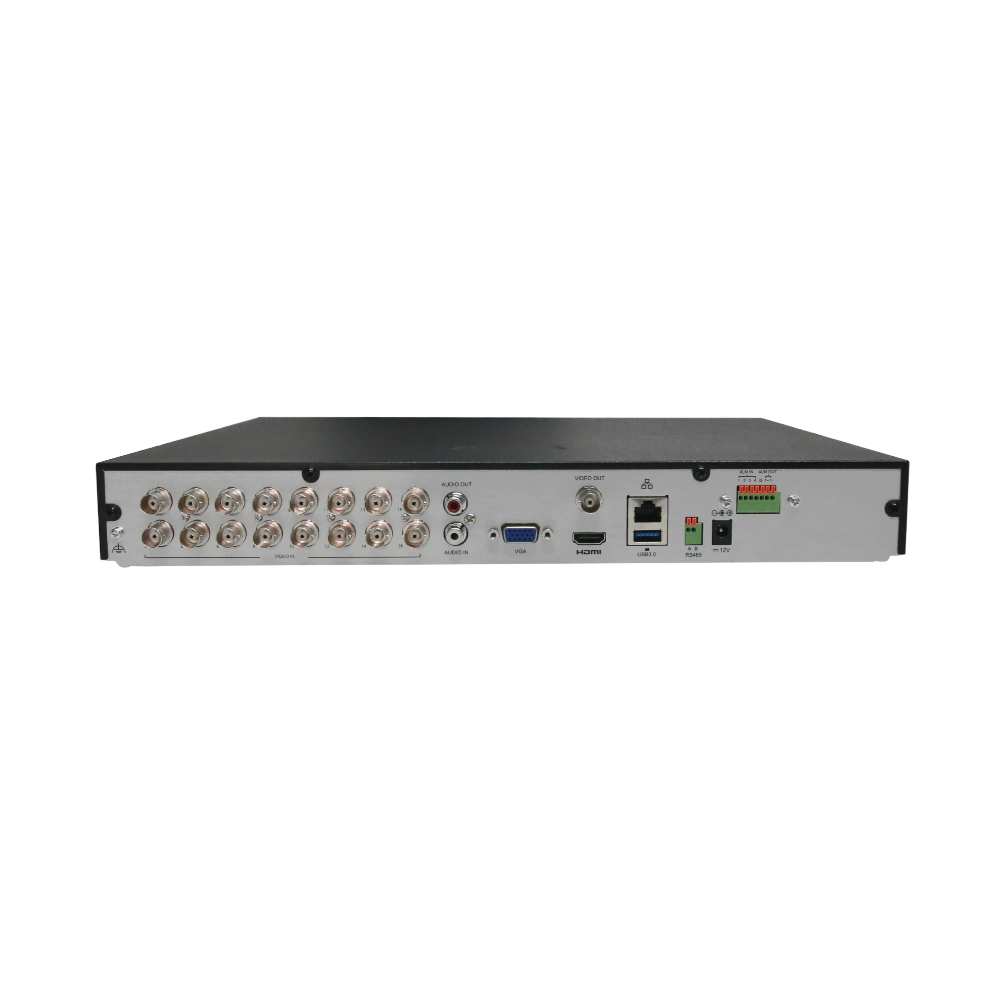

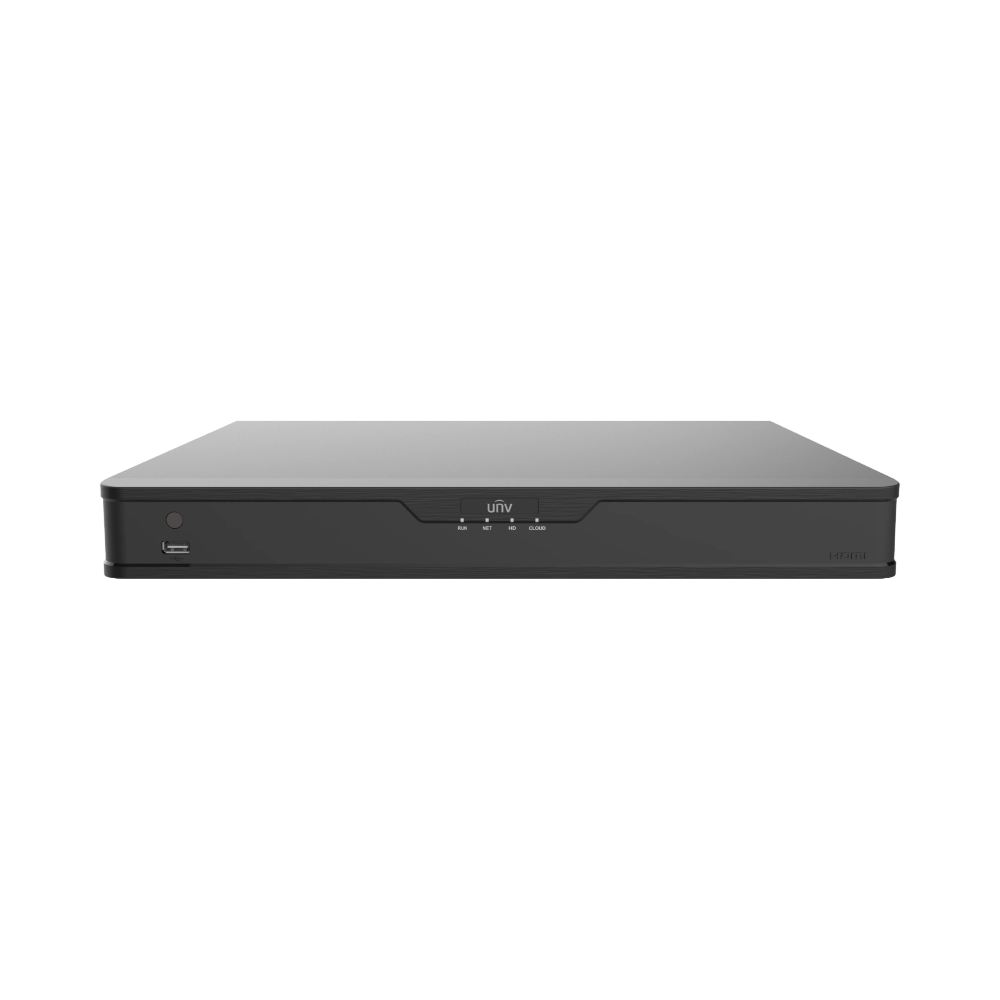

Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI / CVI / CVBS / IP) DVR – Digital Video Recorder Key Features :- Supports H.265 / H.264 video formats Supports audio over coaxial cable(only for TVI cameras) Supports TVI, AHD, CVI, CVBS, IP cameras with adaptive access 16-channel BNC input Supports 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160) HDMI and VGA simultaneous output Long transmission distance over coaxial cable Support mainstream cameras of ONVIF and RTSP protocols Hardware characteristics :- 1 x VGA port (max. 1080P resolution) 1 x HDMI port (max. 1080 resolution) – Same display output as VGA 1 x CVBS output 2 x 3.5″ SATA HDD ports (max. 8TB HDD per port) 3 x USB ports (one front, two rear) 1 x RS-485 port 16 x BNC inputs (to support Analogue / AHD / HDCVI / HDTVI cameras)* – Check specifications for resolution support 1 x LAN port (10/100/1000Mbps) 4 x Alarm input ports 1 x Alarm output port 1 x Audio RCA input port 1 x Audio RCA output port
Uniview XVR302-16Q3
Uniview XVR302-16Q3 Ultra HD 2.0 Series 4K 1U 16-Channel Pentabrid (AHD / TVI / CVI / CVBS / IP) DVR – Digital Video Recorder
