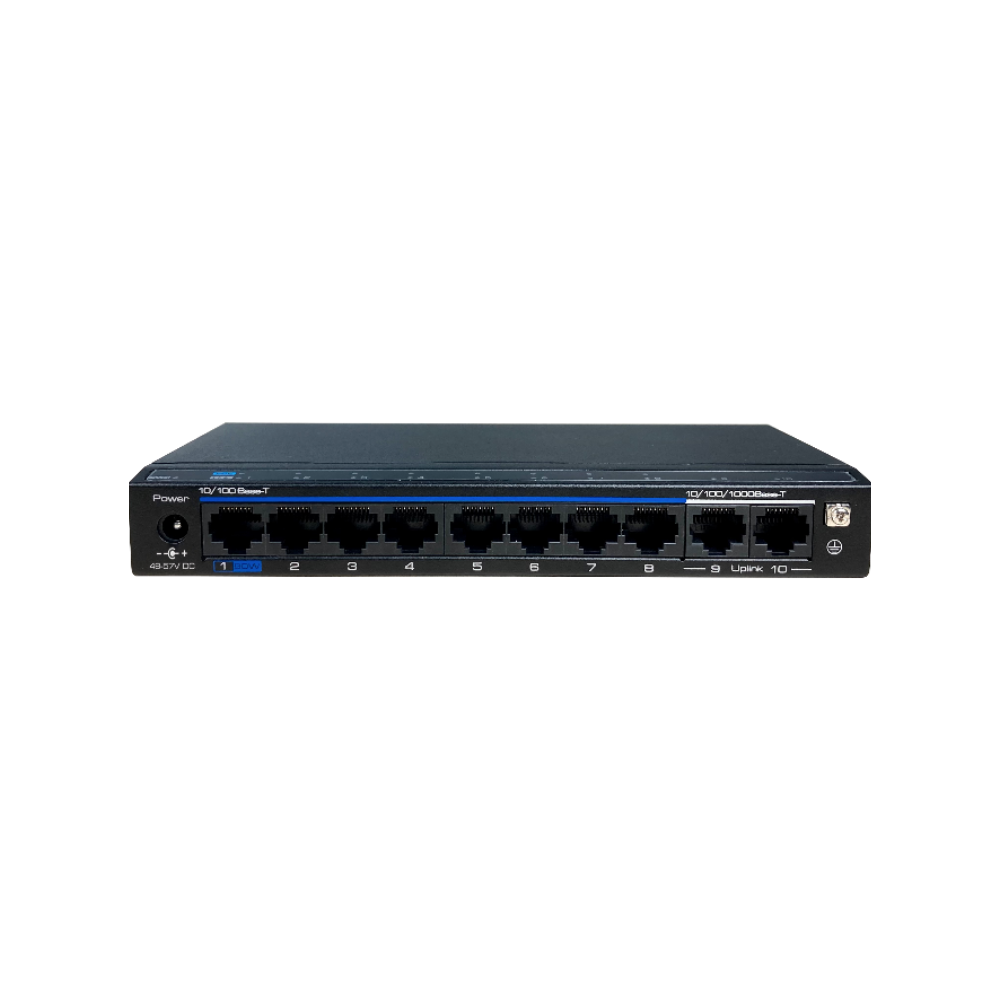

Utepo UTP3210-PSD

Utepo UTP3210-PSD Unamanaged Ethernet Network PoE++ Switch With 8 * FE PoE Ports + 2 * GbE Uplink Ports – 150w PoE Power Budget Key Features :- 8 * 10/100BASE-T PoE RJ-45 (Auto MDI/MDIX) 2 * 10/100/1000BASE-T RJ-45 (Auto MDI/MDIX) PoE Mode DIP Switch Mode 1: 45W max for each port Mode 2: 90W max for port 1, disabled PoE function for port 2, 45W max for ports 3 to 8 each. One-key Smart Mode Default: All ports are free to communicate, transmission distance: 0~100m VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. Complies with the IEEE 802.3af/at/bt PoE standard, the PoE port 1 of switches supports 90W max of PoE output power, and the rest PoE ports support 45W max of PoE output power. Supports PoE watchdog under VLAN & CCTV mode. The switches could continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected. Supports 6KV surge protection to ensure stable operation Lightweight metal casing Utepo Product-Link
