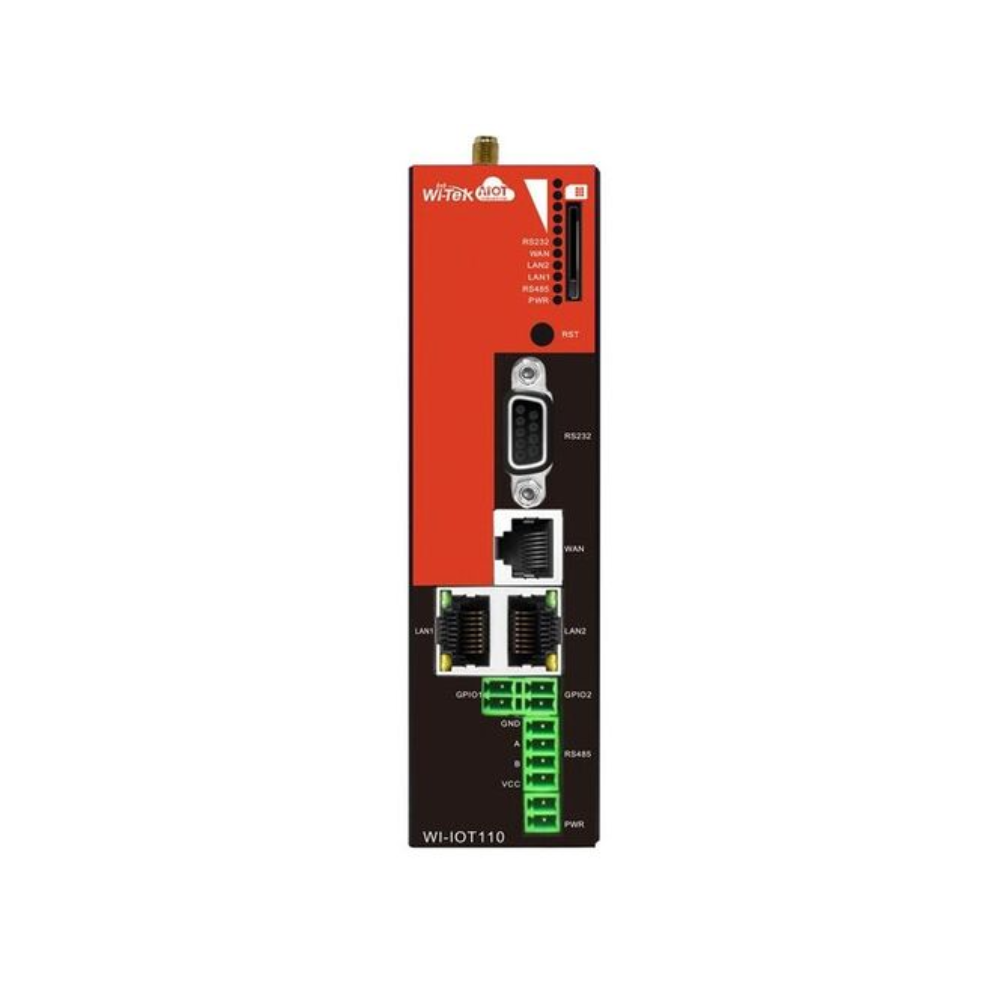

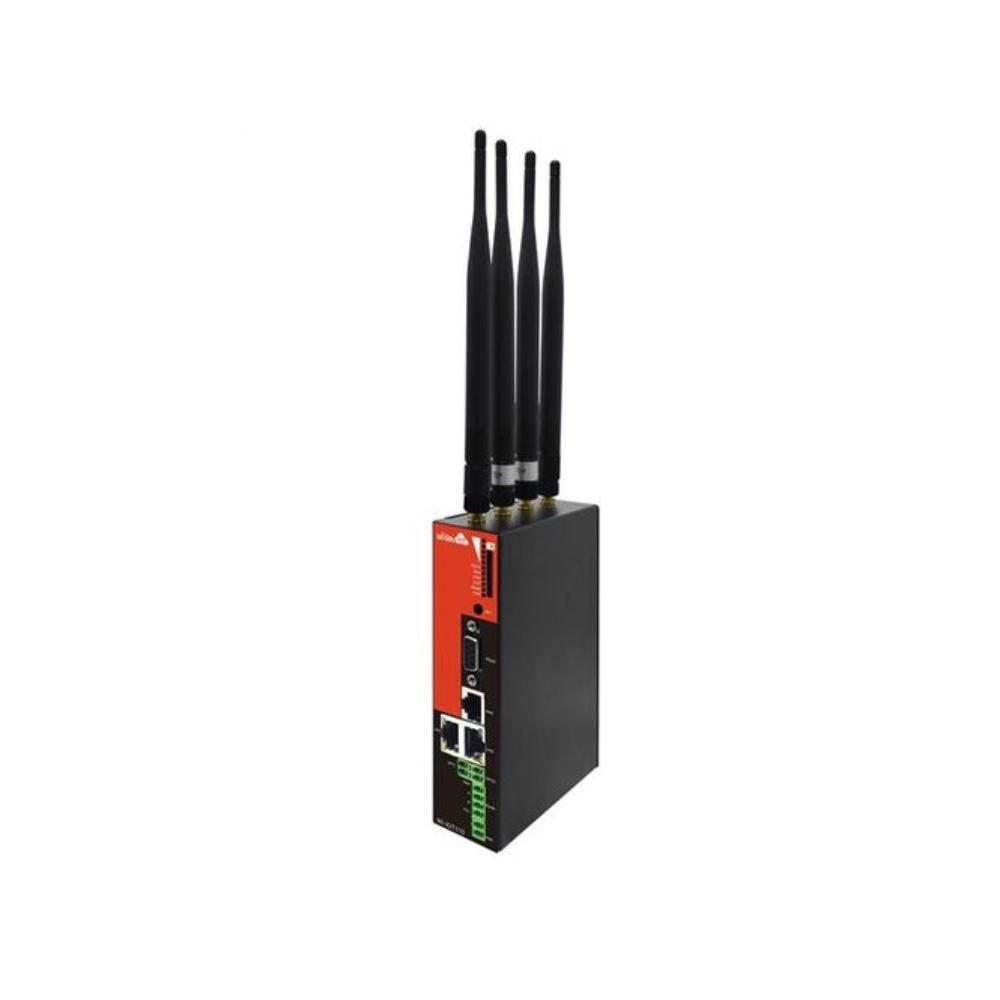

Wi-Tek WI-IOT110

Wi-Tek WI-IOT110 L2-Managed Indistrial DIN-RAIL 4G LTE IoT M2M Gateway – OpenVPN – PoE Output – DI/DO/RS485/Modbus Key Features :- Wi-Tek Industrial M2M LTE Router Designed to provide M2M/IoT application solutions for most areas. Up to 150 Mbps download speed and 50 Mbps upload speed Compatible with 4G/3G networks 4G Internet access, no configuration required, just plug and play Free cloud management platform simplifies equipment management time and reduces network monitoring costs L2’s robust management features meet the requirements of complex projects and can be deployed in one go without the need to invest in additional devices Compatible with Microsoft Azure and AWS (Amazon Web Services) WiFi Antennas: 2 SMA 4G, 2 SMA 2 * 10/100M Ethernet LAN ports (48V 12+ 36- PoE output)Router 1 * 10/100M Ethernet WAN port (PoE input 15/30/60W) PoE delivery: max 60W Hardware Watchdog Network protocols: TCP, UDP, IPv4, ICMP, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP, TFTP, MQTT Supports dry contact input and 3.3 V output Supports OpenVPN, allowing you to remotely connect to your main office with the same security as in the office WAN backup connection: Functions as a router to provide a backup Internet connection Connectors: 1 DC, 3 Ethernet, 2 Mobile SMA, 2 WiFi RP-SMA, 1 DB9 female (RS232), 1 Terminal (RS485/RS422) Support for an external SIM card PoE outputs: allows direct use of a network cable to transmit data and supply power to the camera at the same time Power supply: 48V ~ 60V DC (2-pin DC connector) Operating temperature: -30°C ~ +65°C (-30°C ~ +65°C) Dimensions: 45 (W) x 145 (H) x 95 mm Net weight: 500 g Supports DIN rail mounting Wi-Tek Product Guide 2026
