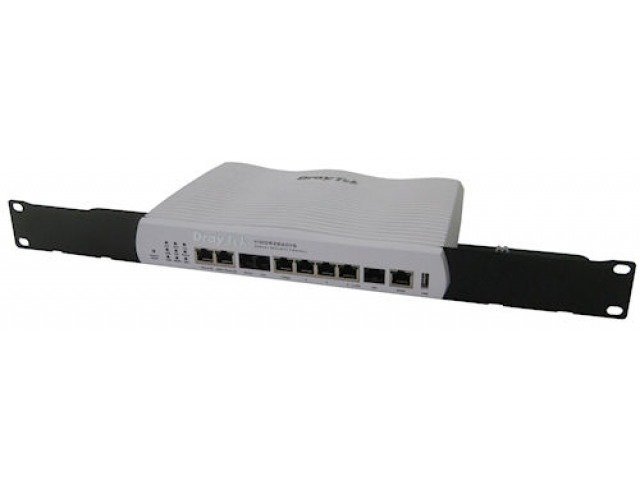

DrayTek DV2860-R

• Triple-WAN with Load Balance and Fail-Over
• Built-in DSL modem for VDSL2 or ADSL2+
• Additional Gigabit Ethernet & USB WAN port
• 6-port Gigabit Ethernet LAN Switch
• Up to 50,000 simultaneous NAT sessions
• UFB Ready
• IPv6
• VLAN for secure and efficient workgroup management
• Object-based SPI Firewall and CSM (Content Security Management) for network security
• 2 x USB ports for 3G/4G mobile, FTP server and network printers
• 32 x VPN tunnels
• 16 x SSL VPN tunnels * new
• QoS (Layer 2&3, 802.1p & TOS/DCSP) for prioritizing video, voice, online game and data traffic
• Supports Smart Monitor up to 30 PCs
• Supports TR-069 for VigorACS SI and IGMP v3 MultiCast
• 2 year warranty

The Vigor2860 series security firewall routers have built-in VDSL2/ADSL2+ modem, plus a second Ethernet WAN port for Cable or Satellite broadband, and 2 USB ports for 3G/4G mobile broadband access. With the multi-WAN accesses, Vigor2860 routers support bandwidth management functions such as Fail-over and Load Balancing, making them ideal solutions for reliable and flexible broadband connectivity for small to large enterprises.

The specifications cover many functions that are required by modern day businesses, including secure but easy to apply firewall, comprehensive VPN capability, Gigabit LAN ports, USB ports for 3G/4G mobile dongles, FTP and Samba server and network printers, VLAN for flexible workgroup management, and much more.

Dashboard implementing in DrayTek Vigor2860 series summarizes the status of WAN/ LAN/ VPN.

Multi-WAN

Outbound Policy-based Load-balance

WAN Connection Failover

ADSL2+/VDSL2

ITU-T G.993.2 (VDSL2)

ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B

DSL Forum Performance Speci?cation: ADSL TR-048/67, TR-100; VDSL: WT-114

Erasure Decoding, Increased Interleaver Depth and Re-transmission

EFM (IEEE 802.3 ah)

VDSL2 Profile: up to 30a

WAN Protocol

VDSL2/ADSL2+ WAN

DHCP Client

Static IP

PPPoE

PPPoA (ADSL2 only)

PPTP / L2TP (VDSL2 only)

802.1q Multi-VLAN Tagging

Gigabit Ethernet WAN

DHCP Client

Static IP

PPPoE / PPTP / L2TP

802.1q Multi-VLAN Tagging*

USB (WAN-3)

PPP

IPv6

Tunnel Mode: TSPC, AICCU

Dual Stack: PPP, DHCPv6 Client, Static Ipv6

Switch

Port-based VLAN

Triple-Play Application

IGMP Snooping

Tag-based (802.1q) VLAN

Layer-2 (802.1p) QoS

USB

3G (HSDPA) as WAN

Printer Sharing

File System

Support FAT32 File System

Support FTP Function for File Sharing

Support Samba for File Sharing

LTE USB mobile (Support List Please Contact support@draytek.com)

Firewall

Multi-NAT, DMZ Host, Port-redirection and Open Port

Object-based Firewall, Object IPv6, Group IPv6

MAC Address Filter

SPI (Stateful Packet Inspection) (Flow Track)

DoS/DDoS Prevention

IP Address Anti-spoofing

E-mail Alert and Logging via Syslog

Bind IP to MAC Address

Time Schedule Control

User Management

CSM (Content Security Management)

IM/P2P Application

GlobalView Web Content Filter (Powered by )

URL Content Filter :

URL Keyword Blocking (Whitelist and Blacklist)

Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking

Excepting Subnets

VPN

Up to 32 VPN Tunnels

Protocol : PPTP, IPsec, L2TP, L2TP over IPsec

Encryption : MPPE and Hardware-based AES/DES/3DES

Authentication : MD5, SHA-1

IKE Authentication : Pre-shared Key and Digital Signature (X.509)

LAN-to-LAN, Teleworker-to-LAN

DHCP over IPsec

IPsec NAT-traversal (NAT-T)

Dead Peer Detection (DPD)

VPN Pass-through

VPN Wizard

mOTP

SSL VPN: 16 Tunnels*

Open VPN: 16 Tunnels

VPN Trunk (Load Balance/Backup)

Bandwidth Management

QoS

Guarantee Bandwidth for VoIP

Class-based Bandwidth Guarantee by User-defined Traffic Categories

DiffServ Code Point Classifying

4-level Priority for Each Direction (Inbound/Outbound)

Bandwidth Borrowed

Bndwidth/Session Limitation

Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping

Network Features

Packet Forwarding Acceleration*

DHCP Client/Relay/Server

IGMP Version 2 and Version 3

Dynamic DNS

NTP Client

Call Scheduling

RADIUS Client

DNS Cache/Proxy

UPnP 30 sessions

Multiple Subnets

VLAN Tagging (802.1q) on LAN

Routing Protocol:

Static Routing

RIP V2

Network Management

Web-based User Interface (HTTP/HTTPS)

Quick Start Wizard

CLI (Command Line Interface, Telnet/SSH)

Administration Access Control

Configuration Backup/Restore

Built-in Diagnostic Function

Firmware Upgrade via TFTP/FTP/HTTP/TR-069

Logging via Syslog

SNMP Management MIB-II

Management Session Time Out

2-level Management (Admin/User Mode)

TR-069

TR-104

LAN Port Monitoring

Support Smart Monitor (30 wired LAN users)
