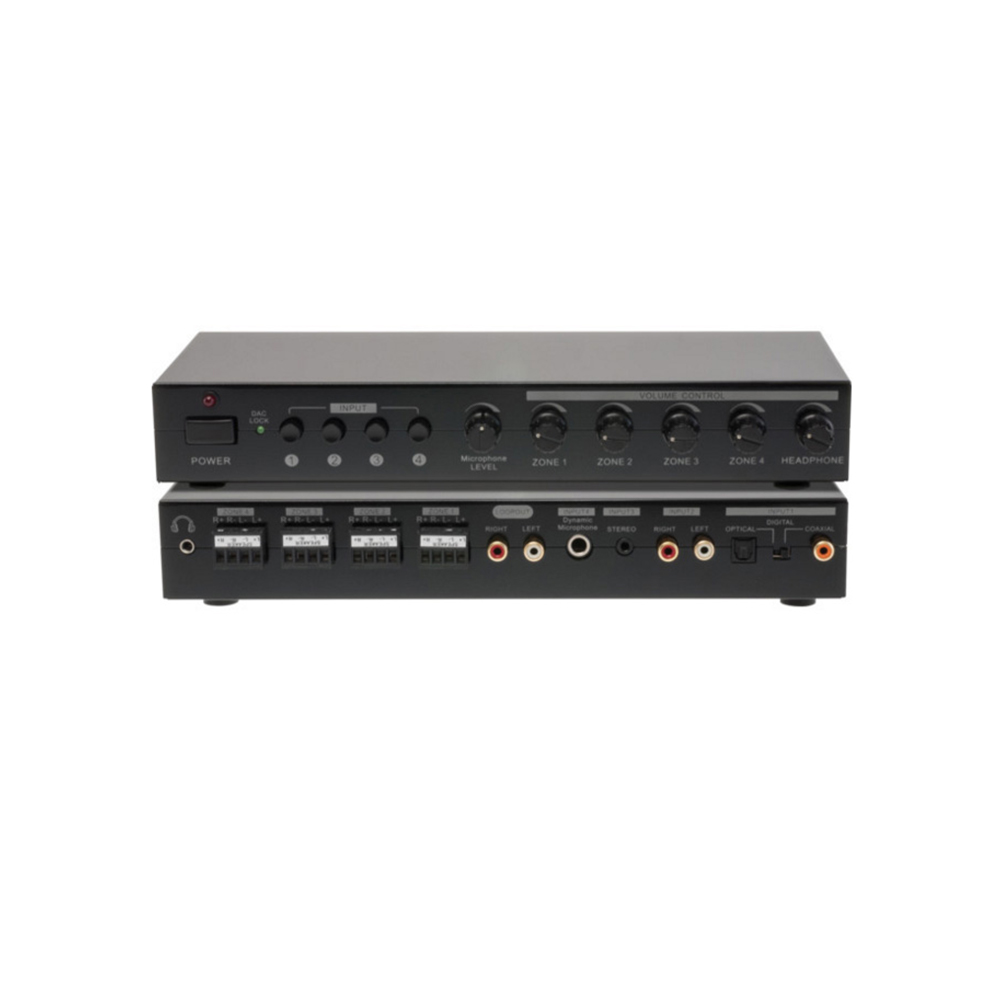

Audio Power Amplifier 4 Source 4 Zone ( ARC-1323 ) Arco With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone’s volume independently, the 4×4 Audio Power Amplifier is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further! Features Four-in and five-out IN: 1x Digital (Optical / Coaxial selectable), 1x RCA Stereo, 1x 3.5mm Stereo, 1x Dynamic Microphone input OUT: 4 Speaker output + 1 Headphone output Built-In audio digital to analogue converter (DAC) Independent microphone level control Individual speaker volume control Provides line loop-out for expanding to more zones Specifications Speaker Amplifier (x4): Amplifier Type: Stereo Class-D Output power: 15W(RMS) per channel (@ RL=4 ohm) THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz) Minimum Load Resistance: 4 ohm Includes Speaker Protection circuit Earphone Audio Power Amplifier: Output power:105mW(RMS) per channel THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz) Minimum Load Resistance: 16 ohm Power & Dimensions: Power Consumed: 9A Max Power Source: DC 12 Volts Size (LxWxH): 285mm x 128mm x 43mm Net Weight (Unit only): 0.8 Kg
Audio Power Amplifier 4 Source 4 Zone (ARC-1323) – Arco
4 Source, 4 Zone Stereo Audio Power Amplifier The 4×4 amp is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further!
