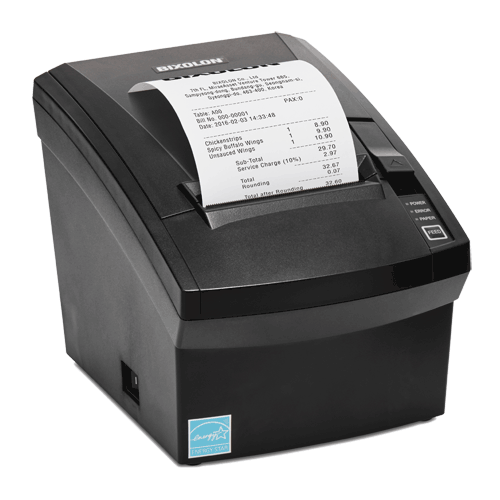

Bixolon SRP-330II Thermal POS Printer USB/RS232/Ethernet B SRP330IIUREG The SRP-330II is an upgrade of the affordable and reliable 3 inch SRP-330 Thermal POS Printer Solution. Direct Thermal POS Printer.

• Durable and Cost Effective
• Stand Alone or Wall mount
• Standard in Australia & New Zealand with USB, RS232 and Ethernet Interface
• 57 or 80 mm Paper choice
• Fast printing speed up to 220 mm/sec

📊 Print & Performance

• Print Method: Direct thermal (no ink or ribbon required)

• Print Speed: Up to 220 mm/sec

• Print Resolution: 180 × 180 dpi

• Maximum Print Width: ~72 mm on 80 mm paper

• Receive Buffer: ~4 KB

• User Defined Buffer: ~12 KB (varies by firmware)

• NV Image Memory: ~768 KB (mono)

🧾 Media & Paper Handling

• Media Type: Thermal receipt paper

• Media Width: 80 mm (with optional guide for 58 mm)

• Maximum Roll Diameter: Up to ~80 mm

• Paper Thickness: ~0.062 – 0.075 mm

• Paper Loading: Easy drop‑in paper loading

• Paper Saving Mode: Reduces receipt length up to ~25 %

🔌 Interfaces & Connectivity

• Triple Interface (All‑in‑One Plus™):
  • USB 2.0 Full Speed
  • RS‑232 Serial (DB9)
  • Ethernet (LAN)

• Emulation: BXL/POS (ESC/POS compatible)

• Drawer Kick Port: Standard support via cable adapter (can open 2 drawers with Y‑cable)

📦 Fonts, Graphics & Barcodes

• Font Support:
  • Font A (12 × 24)
  • Font B (9 × 17)
  • Font C (9 × 24)

• Character Columns:
  • ~42 (Font A), ~56 (Fonts B/C) on 80 mm media

• Built‑In Barcodes (1D & 2D):
  • UPC‑A/E, EAN‑13/8, ITF, Code39, Code128, CODABAR
  • PDF417, QR Code, Datamatrix

📦 Physical & Environmental

• Dimensions (W × D × H): ~145 × 198 × 146 mm

• Weight: ~1.37 kg

• Operating Temperature: 0 °C – 40 °C

• Storage Temperature: –20 °C – 60 °C

• Operating Humidity: 10 % – 80 % RH

• Storage Humidity: 10 % – 90 % RH

⚡ Power & Reliability

• Power Supply: External adapter (AC 100–240 V → DC 24 V)

• Print Head Life: Approx. 150 km of printed paper

• Auto Cutter Life: ~1.5 million cuts

• Printer Life: Designed for high‑volume POS environments

• Energy Star Certified: Yes

🛠️ Supported Drivers & Software

• Drivers: Windows, OPOS, JPOS, Linux CUPS, macOS

• Utilities: Virtual COM USB, Ethernet driver utility

• SDK/Plugin Support: Android, iOS, Windows, Linux, Xamarin, Chrome/Cordova applications

📍 Typical Uses

• Retail receipts & invoices

• Hospitality order tickets

• Coupons & vouchers

• Barcode/QR code printing for POS transactions

📌 Summary

The Bixolon SRP‑330II UREG is a compact 3‑inch (80 mm) direct thermal POS receipt printer with USB, Serial and Ethernet connectivity, fast printing up to 220 mm/sec, automatic cutter, wide barcode support, and broad cross‑platform driver support — suitable for retail, restaurant and ticketing environments.
