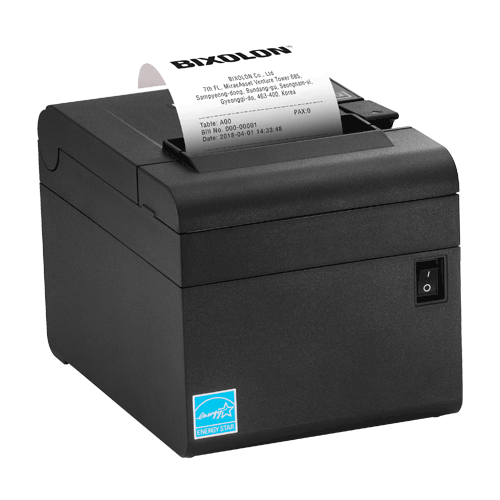

Bixolon SRP-E300K Thermal POS Printer USB/RS232/Eth Dark G SRPE300UREG SRP-E300 is a cost-effective 3” (80mm) direct thermal receipt and ticket printer ideal for Retail, Hospitality and Banking. Producing print speeds up to 220mm/sec and offering a print resolution of 180dpi (SRP-E300) to produce high quality graphics, text and barcodes. This POS printer sports a highly reliable mechanism of 150km TPH and a 1.5 million cuts Auto Cutter.
Bixolon SRP-E300K Thermal POS Printer USB/RS232/Eth Dark G SRPE300UREG SPECS
📄 General Print Features
Print Method: Direct thermal (no ink/ribbon) — produces receipts by heating thermal paper.
Print Speed: Up to 220 mm/sec — fast receipt output.
Print Resolution: 180 dpi (standard); 203 dpi available on special order variants.
Print Width: Effective print width 72 mm on 80 mm paper.
Paper Saving Mode: Reduces receipt length by up to ~25 %.
🧾 Paper & Media
Media Type: Thermal receipt paper.
Paper Width: 80 mm (standard).
Maximum Roll Diameter: Up to ~83 mm.
Paper Loading: Easy drop‑in loading — quick and simple.
Paper Thickness: ~0.062 – 0.075 mm.
🔌 Interfaces & Connectivity
All‑in‑One Plus™ Interface:
• USB V2.0 Full Speed
• RS‑232 Serial
• Ethernet (LAN)
— Standard on the SRP‑E300K model.Emulation: BXL/POS (ESC/POS‑compatible).
🖨️ Performance & Memory
Print Buffer: ~4 KB.
NV Image Memory: ~768 KB (mono).
📊 Fonts & Barcodes
Font Support:
• Font A: 12 × 24 dots (42 columns)
• Font B: 9 × 17 dots (56 columns)
• Font C: 9 × 24 dots (56 columns)
• Asian char support (e.g., Chinese/Japanese/Korean): 21 columnsBarcodes & 2D Codes: UPC‑A/E, EAN‑13/8, ITF, Code39, Code128, CODABAR, PDF417, QR Code, Datamatrix.
📦 Physical & Environment
Dimensions: ~132 × 182.4 × 128.5 mm (W × D × H).
Weight: ~1.23 kg.
Operating Temp: 0 °C – 40 °C.
Operating Humidity: 10 % – 80 % RH.
Storage Temp: -20 °C – 60 °C.
Storage Humidity: 10 % – 90 % RH.
⚡ Power & Efficiency
External Power: Adapter AC 100 – 240 V input, DC 24 V output.
Energy Star Certified: Yes.
🔄 Reliability & Life
Thermal Printhead Life: ~150 km of printed paper life.
Auto Cutter: Built‑in automatic cutter rated for ~1.5 million cuts.
Printer Longevity: ~60 million lines.
🧰 Driver & Software Support
Drivers: Windows drivers, OPOS/JPOS, CUPS (Linux/Mac), Virtual COM USB.
SDKs/Plugins: Support for Android, iOS™, Windows, Linux, Xamarin, Chrome/Cordova.
📌 Summary
This Bixolon SRP‑E300K model is a versatile 3″ (80 mm) direct thermal receipt printer with USB, serial and Ethernet connectivity, fast printing, strong reliability, broad cross‑platform driver support, and features like paper save mode and auto cutter designed for retail, hospitality and POS environments.
