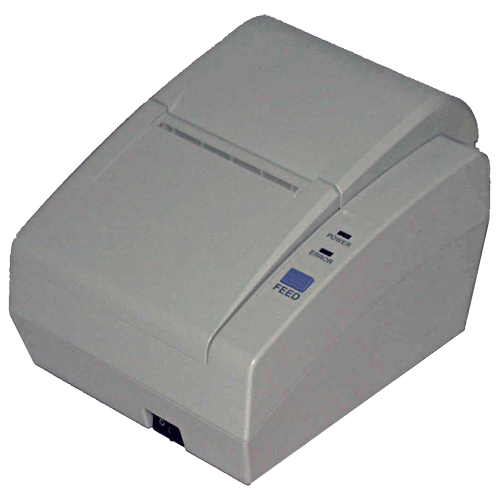

The Bixolon STP-131 is a thermal POS (Point of Sale) printer designed for printing receipts, tickets, and other transaction documents in retail and hospitality environments. Here are some key features and specifications of the Bixolon STP-131:
1. **Printing Technology**: The STP-131 utilizes direct thermal printing technology. Direct thermal printers use heat to produce images on specially coated thermal paper without the need for ink ribbons or toner cartridges.
2. **Printing Speed**: It typically offers a printing speed of up to 80 millimeters per second (mm/s), providing fast and efficient printing for POS transactions.
3. **Print Resolution**: The print resolution of the Bixolon STP-131 is typically 203 dots per inch (dpi), resulting in clear and legible text and graphics on receipts and other documents.
4. **Print Width**: It supports printing on paper widths up to 58mm (2.28 inches), making it suitable for printing receipts and tickets of various sizes commonly used in POS applications.
5. **Connectivity Options**: The STP-131 typically offers multiple connectivity options, including RS-232 Serial, Parallel, or USB interfaces, allowing it to be easily integrated into different POS systems.
6. **Compatibility**: The Bixolon STP-131 is compatible with various operating systems and POS software, providing flexibility in deployment and integration with existing systems.
7. **Reliability**: Thermal printers like the STP-131 are known for their reliability and low maintenance requirements, making them ideal for high-volume printing environments.
8. **Paper Handling**: It typically supports standard thermal paper rolls with a diameter of up to 80mm, offering flexibility in printing different types of receipts and documents.
9. **Ease of Use**: The printer is designed for easy operation and maintenance, with features such as simple paper loading and automatic paper cutter for efficient document separation.
10. **Compact Design**: The STP-131 is often designed with a compact footprint, making it suitable for environments where space is limited, such as retail counters and checkout areas.
Overall, the Bixolon STP-131 thermal POS printer offers fast, reliable, and efficient printing capabilities, making it a popular choice for businesses looking for high-quality receipt printing solutions for their POS systems.
Replacement: SRP-350II
Compact Thermal Receipt Printer
Fast 75 mm/sec Printing
ESC POS, CITIZEN, STAR Compatible
Auto Paper loading function
Full or Partial Cut
Both RS-232 & Parallel interface on board, selectable through different Cable
One cable comes with the unit
NV Bitmap Memory
Cost Effective unit
?
Paper | T8080 | Thermal 80x80x11.5 Paper Rolls |
Interface Cable | CAB-SAM131R | RS-232 Interface Cable |
CAB-SAM131P | Parallel Interface Cable? |
Printing Method | Thermal Line Dot method | |
Print Font | 9×24, 12×24, 24×24 | |
Column Capacity | 56/42/21 Columns | |
Character Set | 95 Alphanumeric, 32 International | |
127 X 7 Graphic | ||
Korean, Chinese | ||
Character Size | 1.269 x 3.384 mm | 9 X 24 |
1.692 x 3.384 | 12 X 24 | |
3.384 x 3.384 | 24 X 24 | |
Printing Speed | 75 mm/sec | |
Line Pitch | 4.23 mm (30 Dots) | |
Data Buffer | 16 Kb | |
NV Bitmap Memory | 256 Kb | |
Interface | RS-232C | |
Unidirectional Parallel | IEEE 1284 | |
Power | 24 DCV +/- 7%, External power supply | |
Current Consumption | Approx. 1.5A | |
Drawer Control | 2 drawers through 1 RJ12 Connector | |
Reliability | Head | 50,000,000 Pulses |
Mechanism | 10,000,000 Lines | |
