150 mm/sec high speed printing
-
Easy Paper Handling: Presenter feeds out paper after docket is fully printed
-
Selectable Paper width
-
Two Colour printing
-
Thicker Paper Capability (0.065-0150mm)
-
Paper Auto loading
-
Bar-code Printing
-
NV Bitmap registration
-
Easy customization software
-
Capable of loading large diameter roll
-
Either Serial (RS232), Parallel (Centronics) & USB User-installable Interface cards available.
-
Equipped with Paper end sensor & Paper near end sensor
Thermal Paper |
T80195 |
Jumbo Roll 80 x 195 x 25.4 |
Paper Holder |
PHU331 |

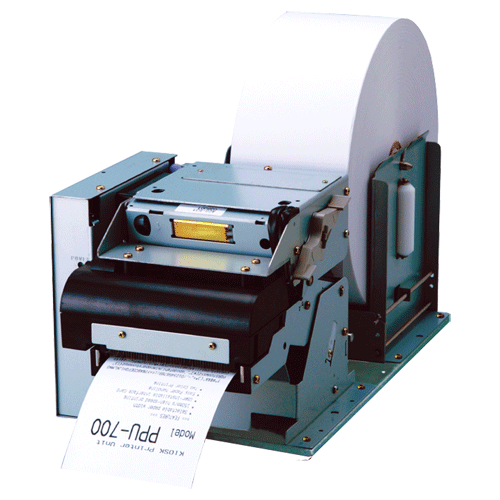

Jumbo Paper holder for PPU700 (top Load) |
PHU331S |
Jumbo Paper holder for PPU700 (side Load) |
|
Power Supply |
AD32 |
Power Supply for PPU231/700 |
Printing Method |
Line Thermal Printing |
|
Printing Width |
80mm/640 Dots (83mm Paper), 72mm/576 Dots (80mm Paper), 60mm/480 Dots (67mm Paper), 54mm/432 Dots (58mm Paper) |
|
Dot Pitch |
8 Dots/mm, 203dpi |
|
Printing Speed |
150 mm/sec (max.), 35.4 lines/sec |
|
Number of Columns |
80mm Paper: 48 columns (Font A), 64 Columns (Font B), 72 Columns (Font C) |
|
Font Size |
1.25mm x 3.00mm (Font A: 12 x 24 dots) |
|
0.88mm x 2.13mm (Font B: 9 x 17 dots) |
||
0.88mm x 2.00mm (Font C: 8 x 16 dots) |
||
Fonts |
Alphanumeric, International characters |
|
Barcode type |
UPC-A, JAN (EAN) 13/8, ITF, CODE39, CODE128, CODABAR, Code 93 |
|
Logo Registration/Print |
Capable of registering user defined characters and logos into flash memory, 256 K Bytes |
|
Line Spacing |
4.23mm (1/6″) Selectable by command set (Min. 1/203 inch). |
|
Printing Paper |
Thermal Roll Paper width: 58/67/80/83 mm |
|
External diameter: ø203mm max. (with paper holder unit) |
||
Internal diameter: ø25.4mm |
||
Paper thickness: 65 to 150 µm |
||
Recommended paper: TF-50KS-E-2D, TF-62KS-E (Nippon Paper Industries) |
||
Interface |
Parallel |
IEEE1284 & Centronics compliant |
Serial |
RS-232C |
|
USB |
|
|
Input Buffer |
4K or 72 Bytes (Dipswitch selectable) |
|
Sensors |
Paper near end sensor (adjustable, for PHU series) |
|
Paper end sensor (for PMU series) |
||
Black mark sensor (option) |
||
Power Source Voltage |
24V ±7% |
|
Power Consumption |
100 Watt |
|
Weight |
PPU: |
2.1 Kg (inc. Control Board) |
PHU (Paper Roll Holder) |
0.95 Kg (ex. Paper Roll) |
|
External Dimensions |
PPU: |
163.2 x 176 x 143mm |
PHU: |
114.4~138.9 x 122.6 x 137.2mm |
|
Operating Temperature/Humidity |
5 to 40°C, 35 to 85%RH (No condensation) |
|
Storage Temperature/Humidity |
-20 to 60 °C, 10 to 90%RH (No condensation) |
|
Reliability |
Head: |
100,000,000 pulses or 100 km |
Auto Cutter: |
1,000,000 cuts |
|
Safety Standards |
UL, C-UL, FCC class A, TUV-CE marking |
