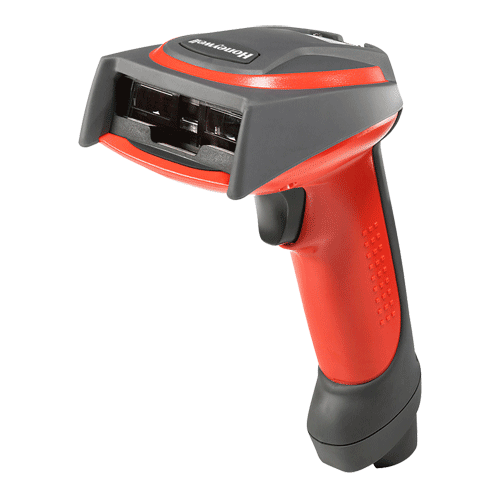

High Performance Industrial Hand Held Scanner
Powered by Adaptus™ Imaging technology
Solid State Heavy Duty Construction, No moving parts!
Operational after 50 drops from 2 m onto Concrete
IP54 Rating
3 Factory Year Warranty
Very Fast Decode Rate
Linear Imaging Technology
Bright Sharp Aiming Line
Also available with laser aimer
Increased Reading Distance
Used Indoors and Outdoors in Bright Sunlight
Optical and Audible Read Confirmation
Exceptional Read Performance
Manual, Presentation Mode or Auto Trigger
Reads Degraded and damaged bar-codes
Powerful, Flexible Architecture
Fully Programmable
Hands Free Stand or Counter Holder available
?
Handsfree Stand | HFSTAND5 | Handsfree Stand for IT46/48/56/5800 |
Power Supply | AD5VR10P | Optional Power Supply |
Reading distance | Narrow width | Depth of Field |
7.5 mil | 16.5 – 38 cm | |
13 mil (100% UPC) | 6.4 – 71 cm | |
15 mil | 6.4 – 78.7 cm | |
20 mil | 3.8 – 107 cm | |
55 mil | 10.2 – 208 cm | |
Reading Width | 15 mil code: 38.1 cm from nose, 25.4 cm wid | |
Resolution | 7.5 mil at 22.9cm distance | |
Pitch Angle | +/- 65deg. | |
Skew Angle | +/- 65 deg | |
Decode Rate | Up to 270 Decodes Per Second | |
Scan Rate | Up to 270 Scans Per Second | |
illumination | 630NM Visible Red LED | |
Interfaces | PS2 Keyboard Wedge | |
RS-232 (May require external power supply) | ||
USB | ||
Many other common interfaces | ||
Symbologies support | Codabar,CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, China postal code, RSS. | |
Warranty | 3 Year Factory Warranty (not on cable, conditions apply) | |
Operation Mode | Manual, Presentation Mode or Auto Trigger. | |
