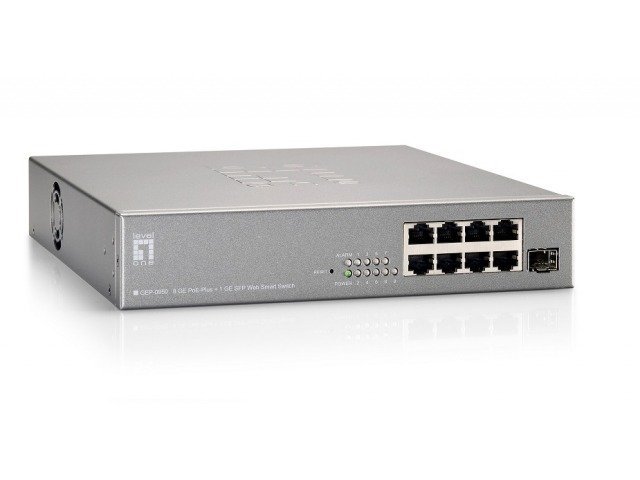

- 8 PoE-Plus Gigabit Ethernet ports and 1 Gigabit SFP slot
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- PoE control and scheduling
- IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
- IEEE 802.1x Access Control to improve network security
- IEEE 802.1Q VLAN allows network segmentation to enhance performance and security
- Port aggregation of up to 4 groups, 5 ports per group
- IEEE 802.1p QoS with 8 priority queues
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Total PoE power budget: 130W, up to 30W per port
Connectors and Cabling:
8 x 10/100/1000Base-T RJ-45 PoE-Plus Ports
1 x 100/1000Base-X SFP Slot
Indicators:
System; Power; Link/Active; PoE
Transmission Method:
Store-and-Forward
Power:
Power Consumption: < 165W
Power Input: 100-240V AC, 50-60 Hz, Internal Power Supply
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1X Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Quality of Service (QoS):
8 hardware Priority Queues per port
Traffic classification based on IEEE 802.1p CoS
DSCP
Virtual Local Area Network (VLAN):
802.1Q tag-based VLAN – up to 16 VLANs and 4096 VLAN IDs; Port-based VLAN
DHCP: DHCP Client
IGMP snooping: v1/v2/v3; IGMP Queried
Port Mirroring: Many-to-One TX/RX
PoE:
Power Budget: Max. 130W
Power Output: Up to 30W per port
Protection: Circuit protection to prevent power interference between ports
Management: PoE status, PoE on/off scheduling, PoE power delay, PoE live checking, Per port power priority setting, PD classification identity
Pin Assignment: 1/2(+), 3/6(-)
Security:
Authentication: IEEE 802.1X Radius authentication
Management:
Network: SNMP v1, v2c User-based Security Model (USM); management VLAN
Performance
Backplane (Gbps):
18Gbps
MAC Address Table:
8K
Data Transfer Rate:
10/100/1000Mbps
Packet Forwarding Rate:
1000Mbps port – 1,488,000pps
100Mbps port – 148,000pps
10Mbps port – 14,880pps
Jumbo Frame (K):
9K
Environment
Temperature (°C):
Operating: 0°C ~ 40°C
Storage: -20°C ~ 70°C
Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%
Physical Specifications
Dimensions (W x D x H mm):
220 x 242.4 x 44 mm
Weight (g):
1980g with box
Approval and Compliance:
FCC Part 15 Class A, CE
Deployment:
19-inch rack-mountable
